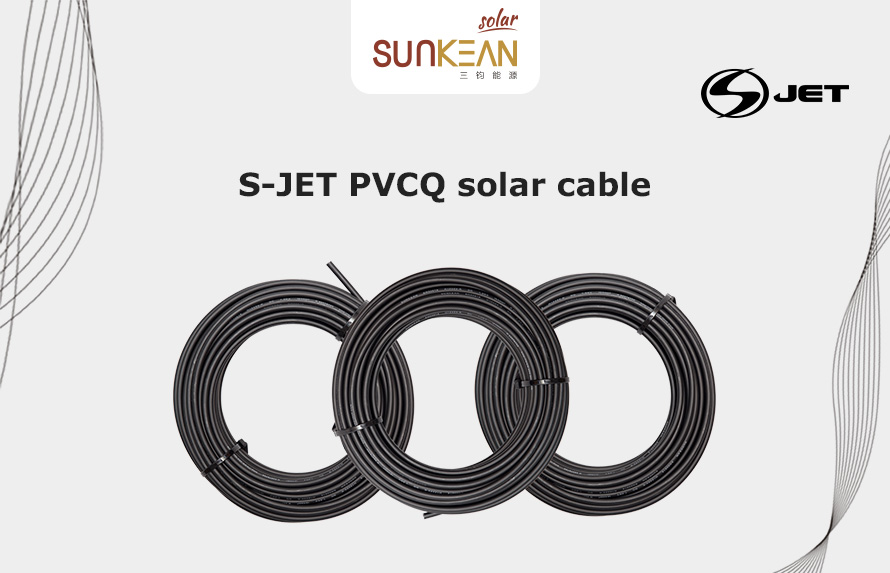

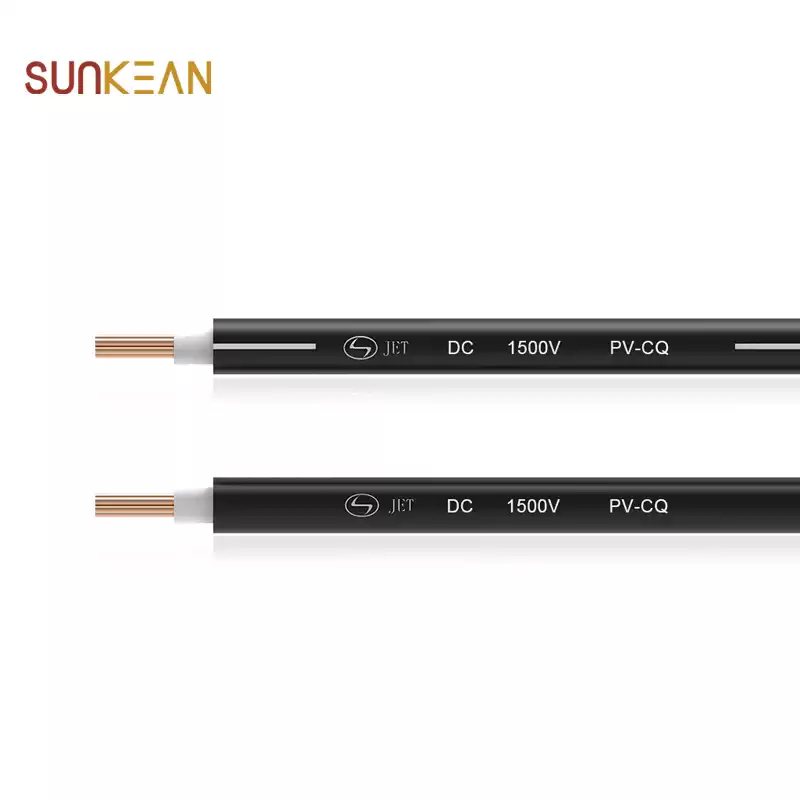

S-JET PV-CQ solar PV cable for photovoltaic system
DC cables used in DC rated voltage below 1500V（DC）solar power system,between the solar panel modules,solar panel module & junction box & power controller.
Product description:
Voltage Rating(Uo/U)
|
DC: 1500V
|
Test Voltage
|
3000V AC
|
Temperature Rating
|
Rated: -40°C to +90°C
|
Testing Standard
|
Cold Bending Test : JIS C3660-1-4
Flame Test : JIS C 3665-1-2
|
|
Cable Name
|
Cross Section
(mm²）
|
Construction
(No./mm)
|
Insulation O.D.
(mm)
|
Conductor resistance
Max (Ώ/km)
|
Cable O.D.
(mm)
|
|
JET PV-CQ
|
2.0
|
7/0.6
|
3.3
|
9.24
|
5.6
|
|
3.5
|
7/0.8
|
3.9
|
5.2
|
6.3
|
|
5.5
|
7/1.0
|
4.5
|
3.33
|
7.0
|
|
8.0
|
7/1.2
|
5.1
|
2.31
|
7.6
|
Advantages:

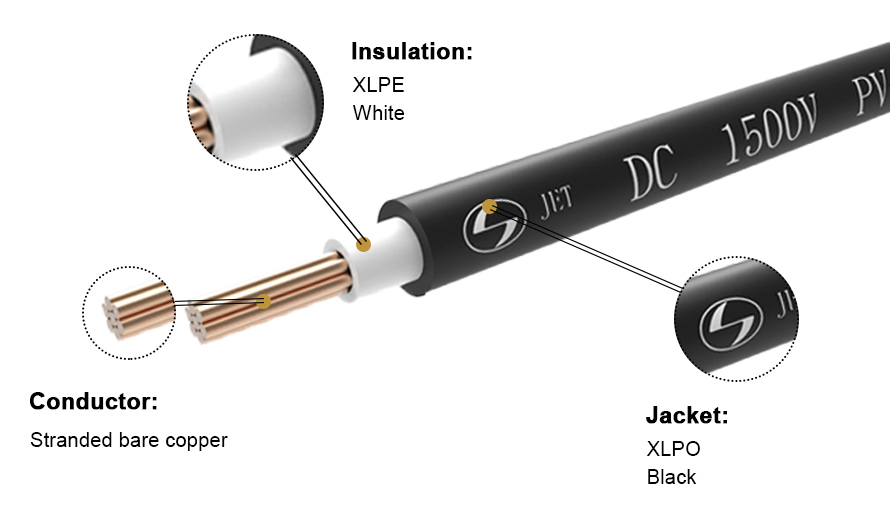

(1) Dual wall insulation, Electron beam cross-linked.
(2) Resistance to UV, water, ozone, fluids, salt, hydrolyzation, general weathering.
(3) Halogen free, flame, retardant, low toxicity.
(4) Flexibility and stripping performance.
(5) High current carrying capacity.
(6) Resistance to abrasion.
(7) High temperature resistance, material will not melt or flow.
(8) Long lifespan ,over 25 years (90°C).

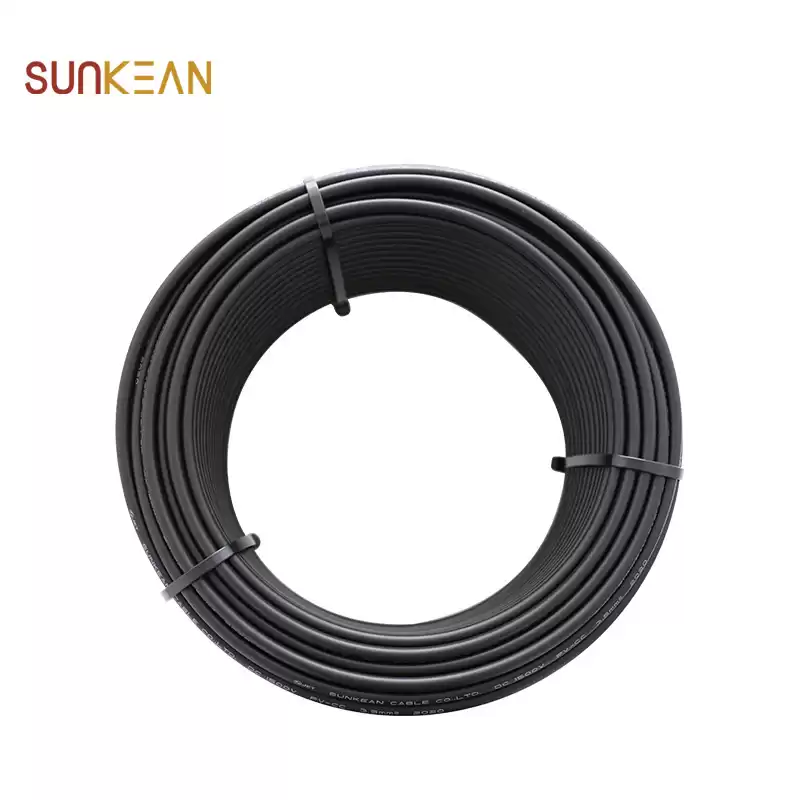

Packing & Delivery:
Application Scenario:
Global Exhibitions:
Company Profile
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover Solar Power System, solar cables, solar extension cables , PV connectors, Mono perc solar panel, inverters solar power systems etc solar products .
SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
FAQ
Q: How could i get the sample ?
A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
