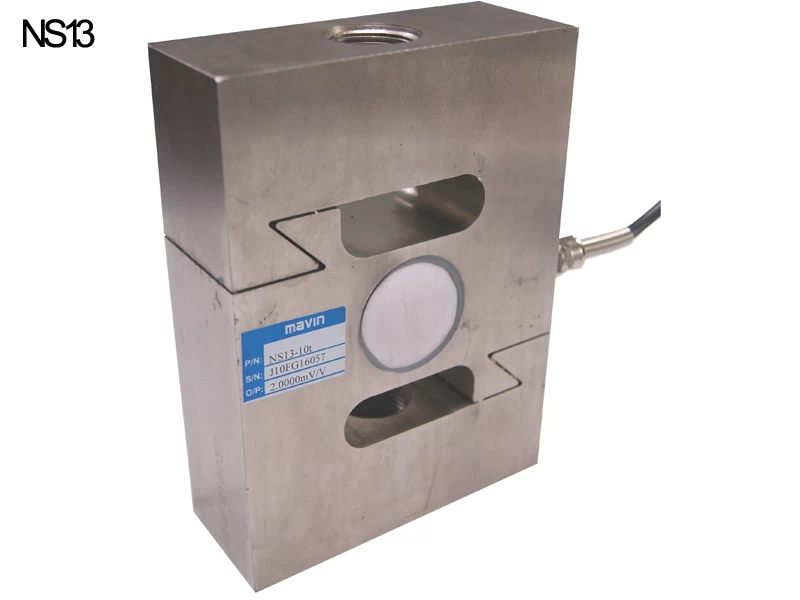

Alloy steel Tension Load Cell NS13 (10T)
NS13 is S type alloy steel load cell with compact structure and overload protection, easy to install and available in a range of environmental sealing up to IP67. The tension force sensor is with 0.03% R.O. accuracy.
Key Features：
Compact structure
Alloy
steel construction with nickel plated treatment
Environmentally sealed to IP67
Overload protection
Usage & Applications：
Hopper
scales
Crane scales
Tension control and machine testing
Batching systems, blending & mixing
systems, belt scales,etc

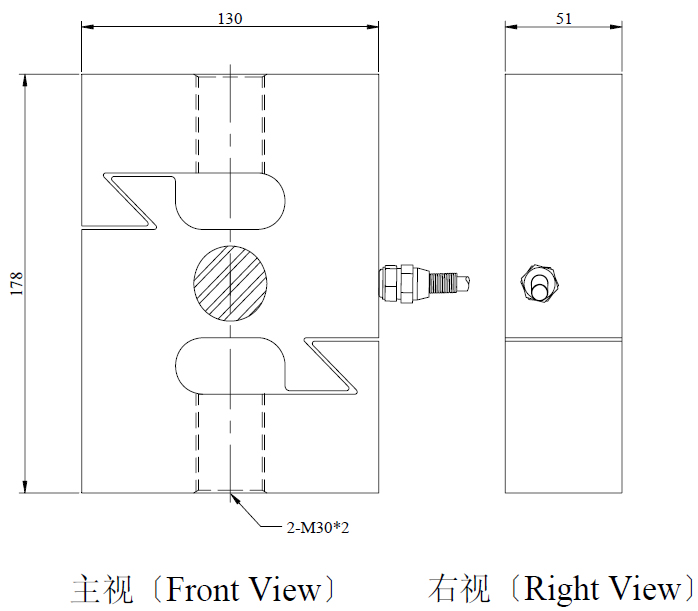

Dimension：
NS13 Specification：
|
Rated
Capacities
|
10 (t)
|
|
Rated
Output
|
2.0
mV/V±0.25%
|
|
Zero
Balance
|
±0.0200
mV/V
|
|
Non-linearity
|
0.03
%R.O.
|
|
Hysteresis
|
0.03
%R.O.
|
|
Repeatability
|
0.03
%R.O.
|
|
30mins
Creep
|
0.03
%R.O.
|
|
30mins
Return
|
0.03
%R.O.
|
|
Safe
Overload
|
150
%R.O.
|
|
Ultimate
Overload
|
200
%R.O.
|
|
Temperature
Effect On Output
|
0.002
%R.O./℃
|
|
Temperature
Effect On Zero
|
0.003
%R.O./℃
|
|
Input
Impedance
|
390±15
Ω
|
|
Output
Impedance
|
350±5
Ω
|
|
Insulation
Impedance
|
≥5000 MΩ/(50VDC)
|
|
Recommended
Excitation
|
5~12
VDC
|
|
Maximum
Excitation
|
15
VDC
|
|
OperatingTemperatureRange
|
-20~60 ℃
|
|
Construction
|
Steel
Alloy
|
|
Protection
Class
|
IP67
/ IP68
|
|
Cable
|
φ5×3 m
|
|
Recommended
Platform Size
|
|
|
Mode
of Connection
|
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-）
|
