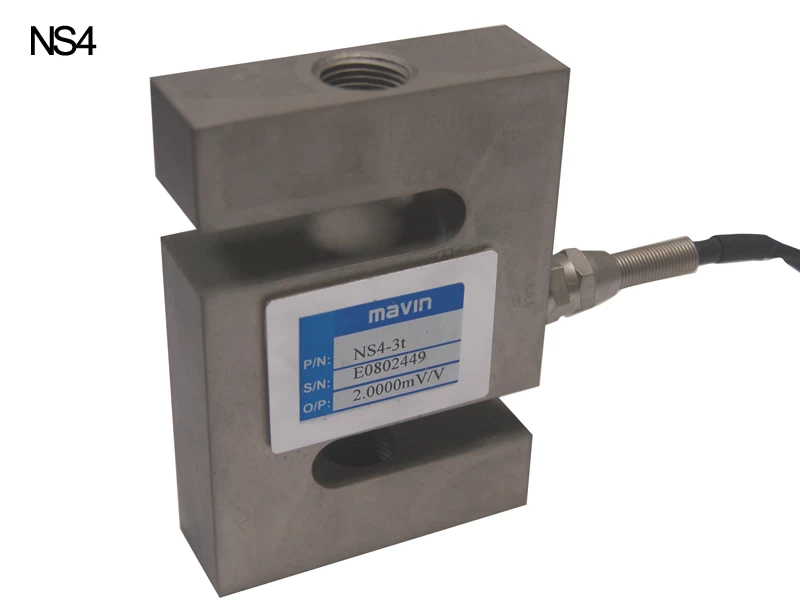

Alloy steel S type Load Cell NS4 (2-5T)
S type load cell NS4 is suitable for many applications where a tension and compression load cell is required, for high accuracy measurements. The tension sensor is available for applications such as vessel weighing, material test machines, crane scale and hopper scale.
Key Features：
Utilizes Metal Foil Strain Gauge Technology
Alloy
steel construction with nickel plated treatment
Capacity: 2-5T
Long
term, reliable operation
Usage & Applications：
Hopper
scales
Crane scales
Tension control and machine testing
Batching systems, blending & mixing
systems, belt scales,etc

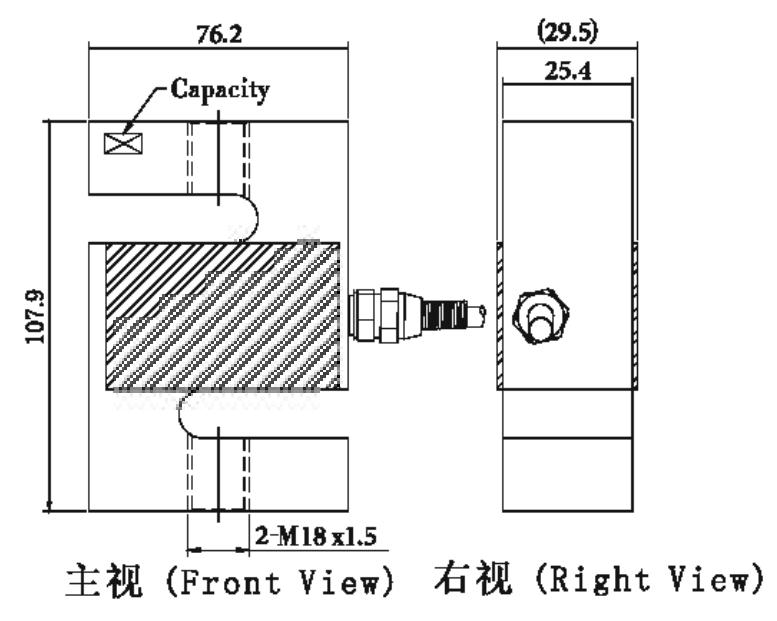

Dimension：
NS4 Specification：
|
Rated
Capacities
|
2，2.5，3，5 （t ）
|
|
Rated
Output
|
2.0
mV/V±0.25%；3.0 mV/V±0.25%
|
|
Zero
Balance
|
±0.0200
mV/V
|
|
Non-linearity
|
0.03
%R.O.
|
|
Hysteresis
|
0.03
%R.O.
|
|
Repeatability
|
0.03
%R.O.
|
|
30mins
Creep
|
0.03
%R.O.
|
|
30mins
Return
|
0.03
%R.O.
|
|
Safe
Overload
|
150
%R.O.
|
|
Ultimate
Overload
|
200
%R.O.
|
|
Temperature
Effect On Output
|
0.002
%R.O./℃
|
|
Temperature
Effect On Zero
|
0.003
%R.O./℃
|
|
Input
Impedance
|
390±15
Ω
|
|
Output
Impedance
|
350±5
Ω
|
|
Insulation
Impedance
|
≥5000 MΩ/(50VDC)
|
|
Recommended
Excitation
|
5~12
VDC
|
|
Maximum
Excitation
|
15
VDC
|
|
Operating Temperature Range
|
-20~60 ℃
|
|
Construction
|
Steel
Alloy
|
|
Protection
Class
|
IP67
/ IP68
|
|
Cable
|
φ5×6 m
|
|
Recommended
Platform Size
|
|
|
Mode
of Connection
|
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-）
|
