S01 series thermal cutoff switch for reactor
In order to prevent the reactor from overheating and overcurrent when working, thermal protectors are usually installed in it.S01 thermal protector is a small size thermal snap disc switch,it is often used in reactors.It can continually work and only reacts to the ambient temperature in the device to be protected.The principle of snap action of the bimetallic disc under the action of temperature is used to achieve the purpose of protecting the circuit.
Features
Small size and easy for mounting.
Small current effect,no large temperature difference due to over current.
Precise temperature control.
Good sealed, can prevent product failure from vacuum impregnation process.
Longer service life.
Specifications
|
Item No.
|
S01
|
|
Nominal switching temperature (NST) in 5°C
|
60 °C - 200 °C
|
|
Tolerance (standard)
|
±5K/±8K/±10K
|
|
Reset temperature range
|
-30K±15K
|
|
Max.operating voltage
|
500VAC/60VDC
|
|
Working current
|
250VAC, 6A
|
|
Cycles at 250VAC/3.0A cosφ1.0
|
10000
|
|
Cycles at 250VAC/6.3A cosφ1.0
|
3000/N
|
|
Cycles at 250VAC/4.0A cosφ0.45
|
1000/N
|
|
Cycles at 250VAC/1.0A cosφ0.45
|
10000/N
|
|
Contact resistance(lead length 55mm)
|
＜50mΩ/N
|
|
Insulation voltage
|
1.5KV
|
|
Insulation sleeve length“a”
|
＞15mm
|
|
Diameter“d”
|
＜8.9mm
|
|
Height“h”
|
＜4.6mm
|
|
Lead wire-electric
|
UL3398 AWG22 300V 150℃
|
|
Lead wire-teflon
|
UL10362 AWG22 600V 250℃
|
|
Lead wire-silicone
|
UL3135 AWG24 600V 200℃
|
|
Outgoing line length-standard
|
L1=L4=520±10mm
|
|
L2=L3=200±5mm
|
|
L5=L6=55±5mm
|
Applications
 |
 |
 |
 |

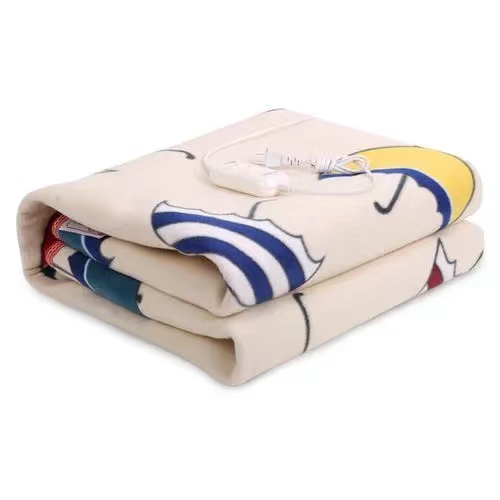

| Electric blankets |
Electric tools |
Grinders |

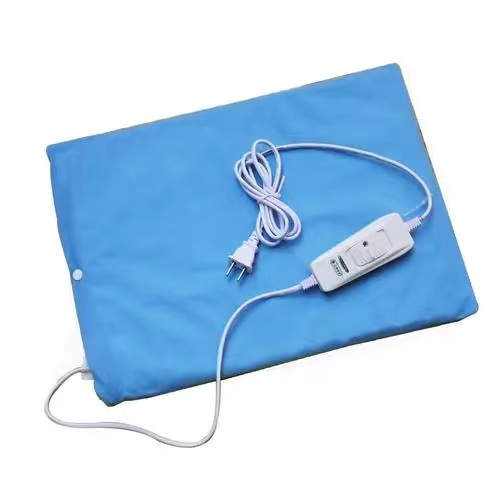

Heating pads |
 |
 |
 |
 |

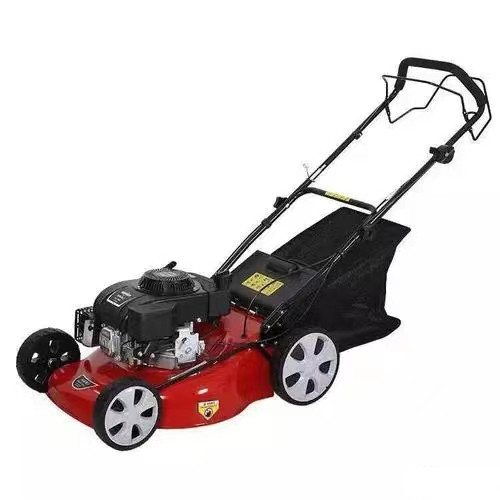

| Lawn mowers |

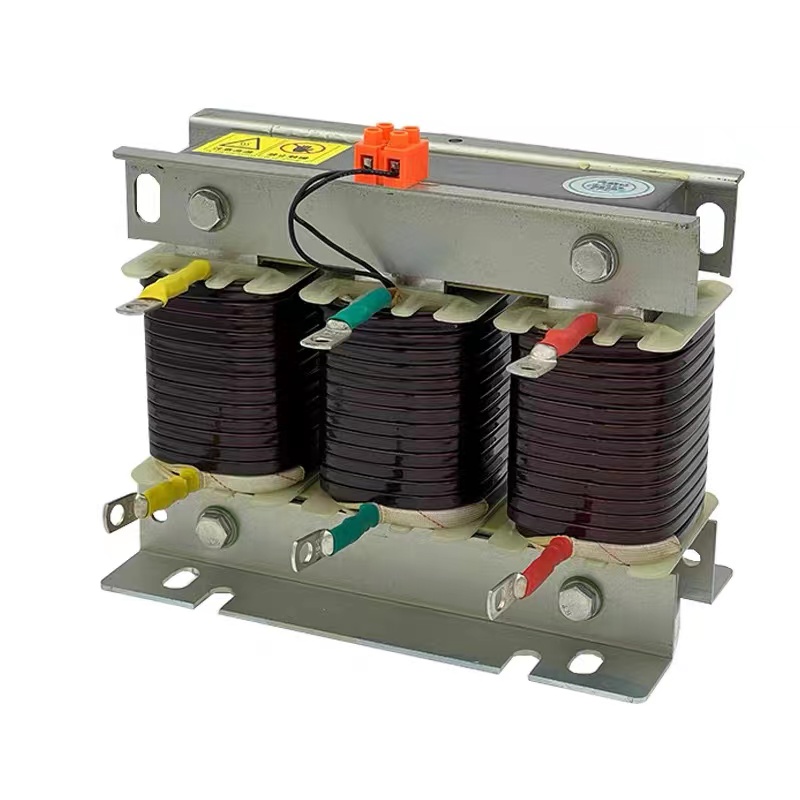

Reactors |

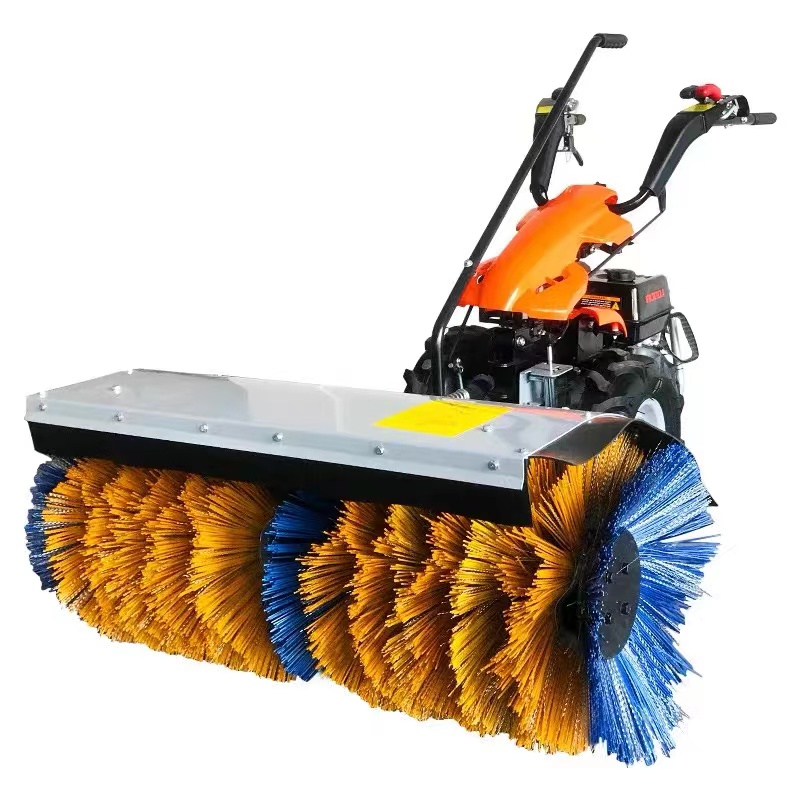

Snowplows |

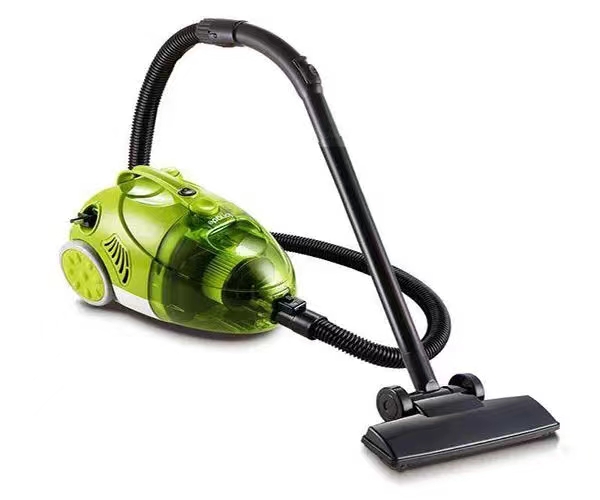

Vacuum cleaners |

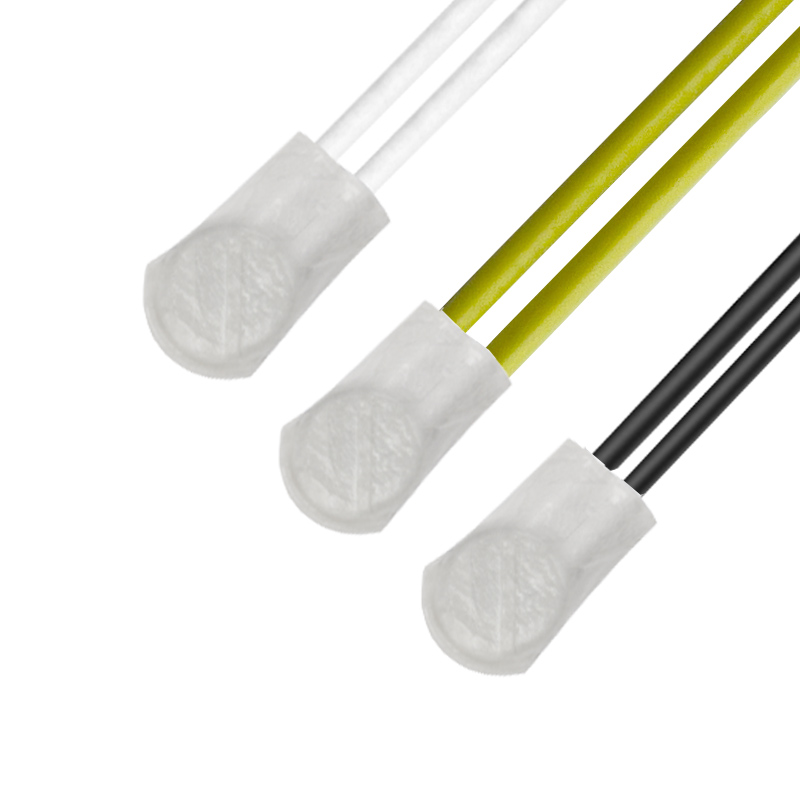

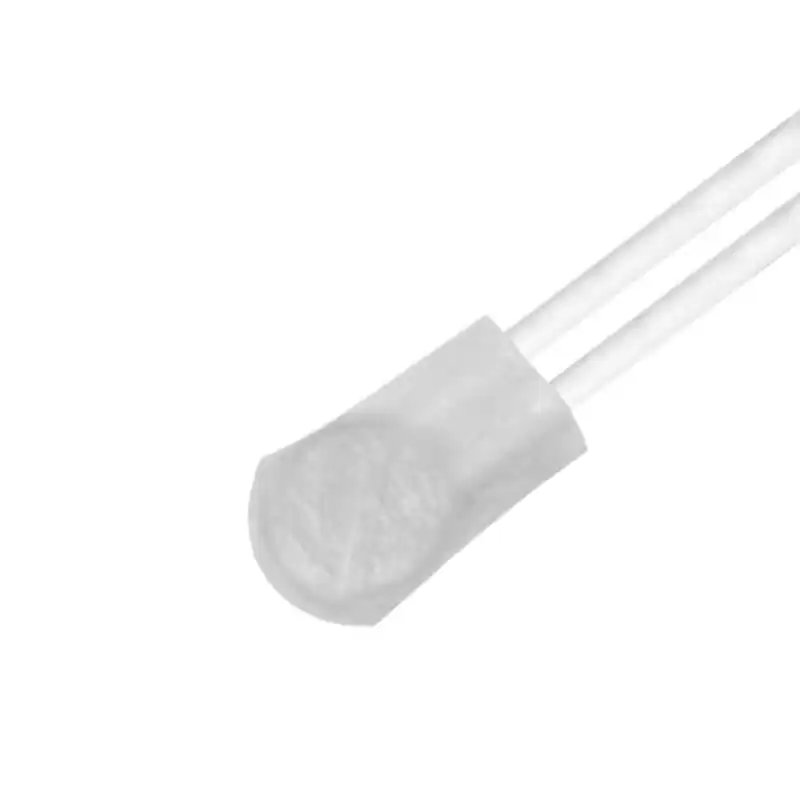

Product display

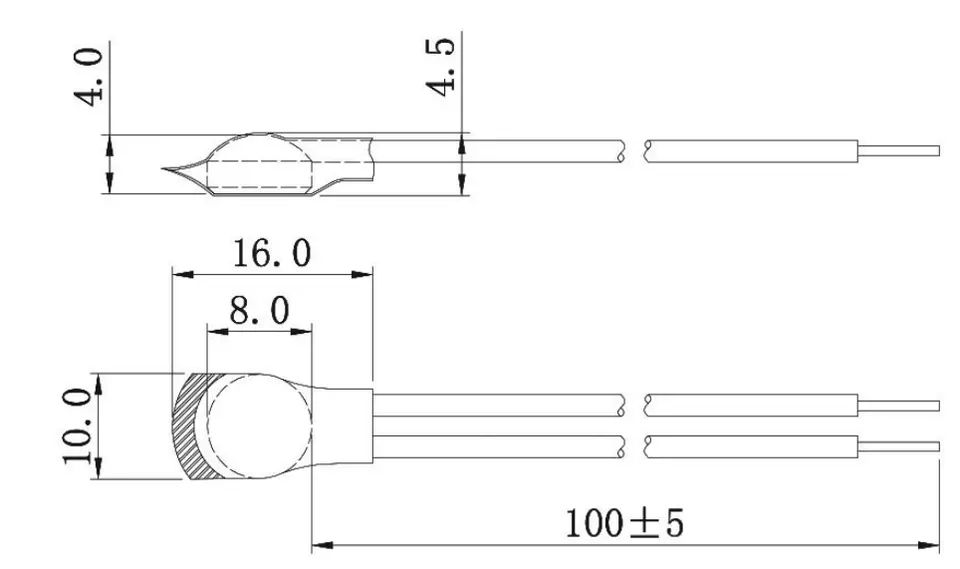

Size details
Packing & Delivery
Packing:
Packed in standard export cartons.
If you have special packing requirements,please feel free to discuss with us,thank you.
Delivery time:
Delivery time for small orders:7-15 days.
Delivery time for special requirements orders:15-30 days.
