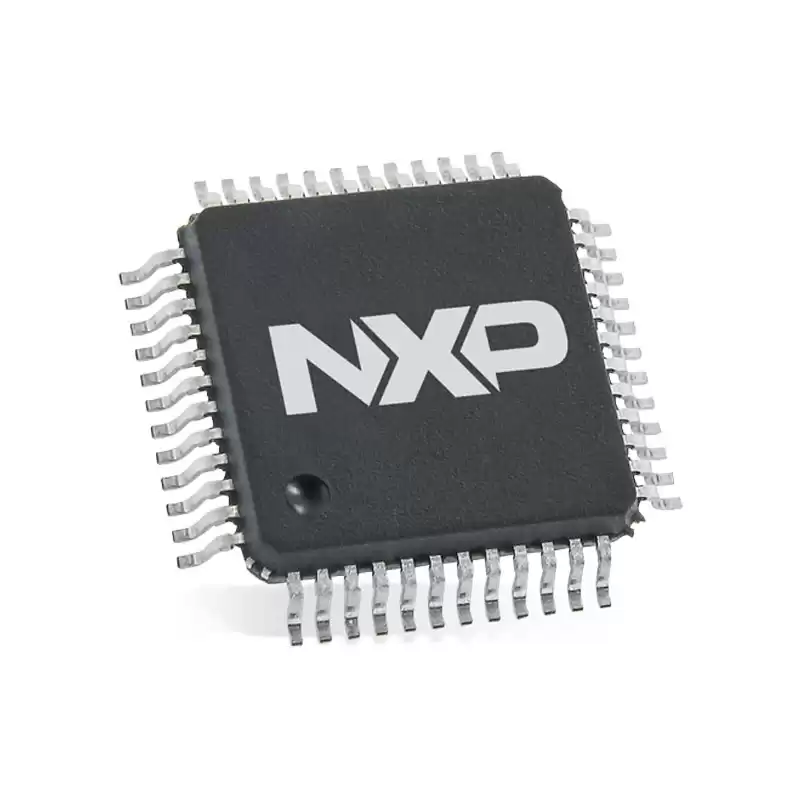

S9S12G128AMLH NXP Microcontrollers
Parameter
| Manufacturer |
NXP Semiconductors |
| Product Category |
16-bit Microcontrollers - MCU |
| Mounting Style |
SMD/SMT |
| Package / Case |
LQFP-64 |
Series
|
S12G
|
Supply Voltage - Min
|
3.15 V
|
Supply Voltage - Max
|
5.5V |
Minimum Operating Temperature
|
- 40 C
|
Maximum Operating Temperature
|
+ 125 C
|
Packaging
|
Tray
|
Factory Pack Quantity
|
800 |
Introduction
S9S12G128AMLH is a microcontroller unit (MCU) from the S12G family, which is manufactured by NXP Semiconductors (formerly Freescale Semiconductor).
This MCU is based on a 16-bit HCS12X CPU core and has a clock speed of up to 50 MHz. It has 128 KB of flash memory for storing program code and 8 KB of RAM for data storage. It also has a wide range of peripheral interfaces, such as UART, SPI, I2C, CAN, and ADC.
The "AMLH" in the part number indicates the device's package type, which is a 112-pin LQFP package. The "S9S12G128" indicates the device's family and size.
Overall, S9S12G128AMLH is a powerful and versatile MCU suitable for a wide range of applications, including automotive systems, industrial automation, and consumer electronics.
Application
S9S12G128AMLH is a versatile microcontroller that can be used in various industry applications. Here are some common use cases:
1.Automotive Electronics: can be used in automotive applications such as in-vehicle infotainment, engine management systems, and body control systems.
2.Industrial Automation: can be used in industrial automation applications such as process control systems, factory automation, and robotics.
3.Consumer Electronics: can be used in consumer electronics such as smart home devices, wearable devices, fitness trackers, remote controls, and gaming consoles.
4.Medical Devices: can be used in medical devices such as blood glucose meters, pulse oximeters, and heart rate monitors.
5.Energy Management: can be used in energy management systems such as smart meters, solar controllers, and wind controllers.
6.Security Systems: can be used in security systems such as access control, surveillance cameras, security alarm systems, and smart locks.
Overall, S9S12G128AMLH is a highly versatile microcontroller suitable for a wide range of industry applications. Its high processing power and extensive peripheral set make it suitable for demanding applications that require high performance and connectivity in various fields such as automotive electronics, industrial automation, consumer electronics, medical devices, energymanagement, and security systems.
Packaging
All integrated circuits are in original factory packaging.
