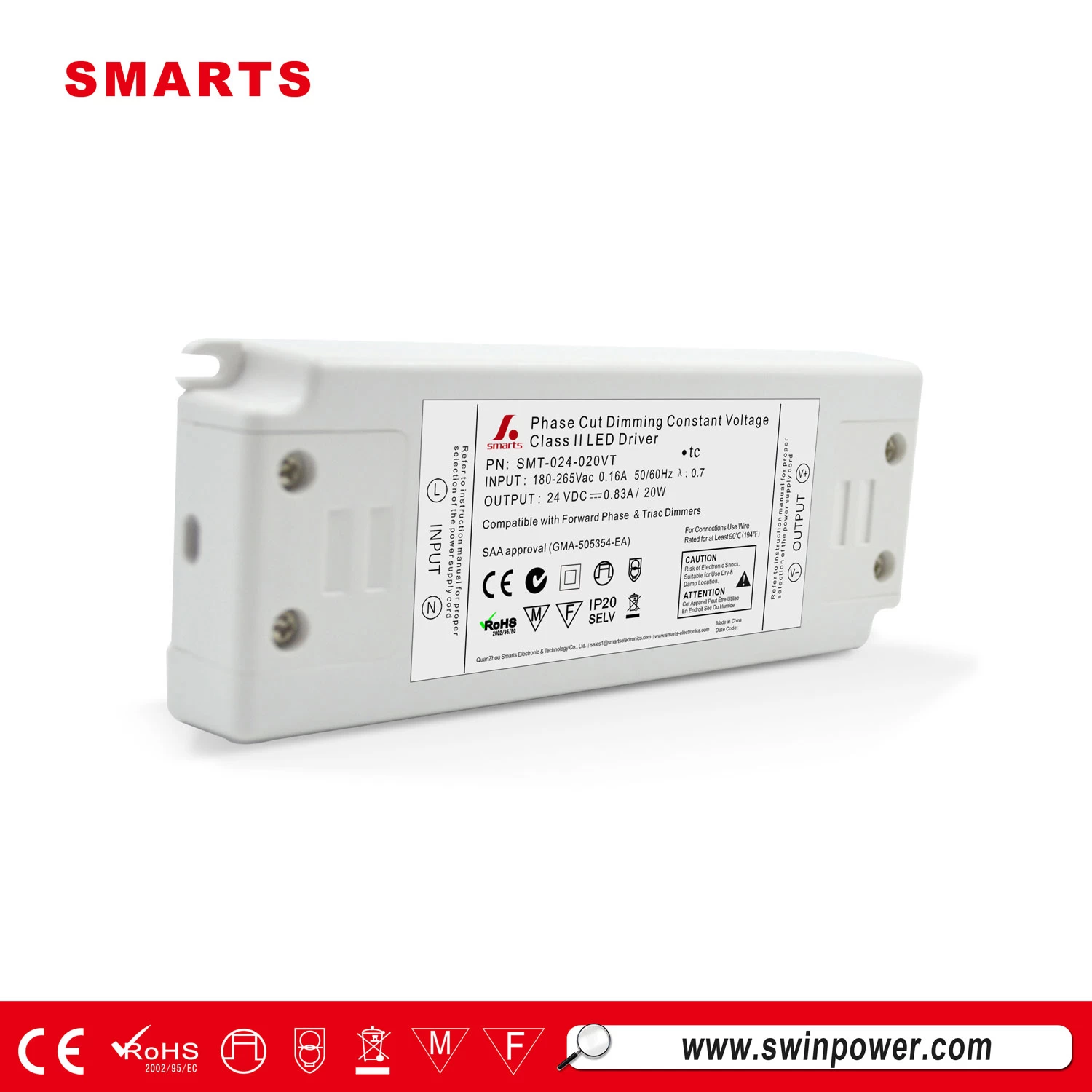

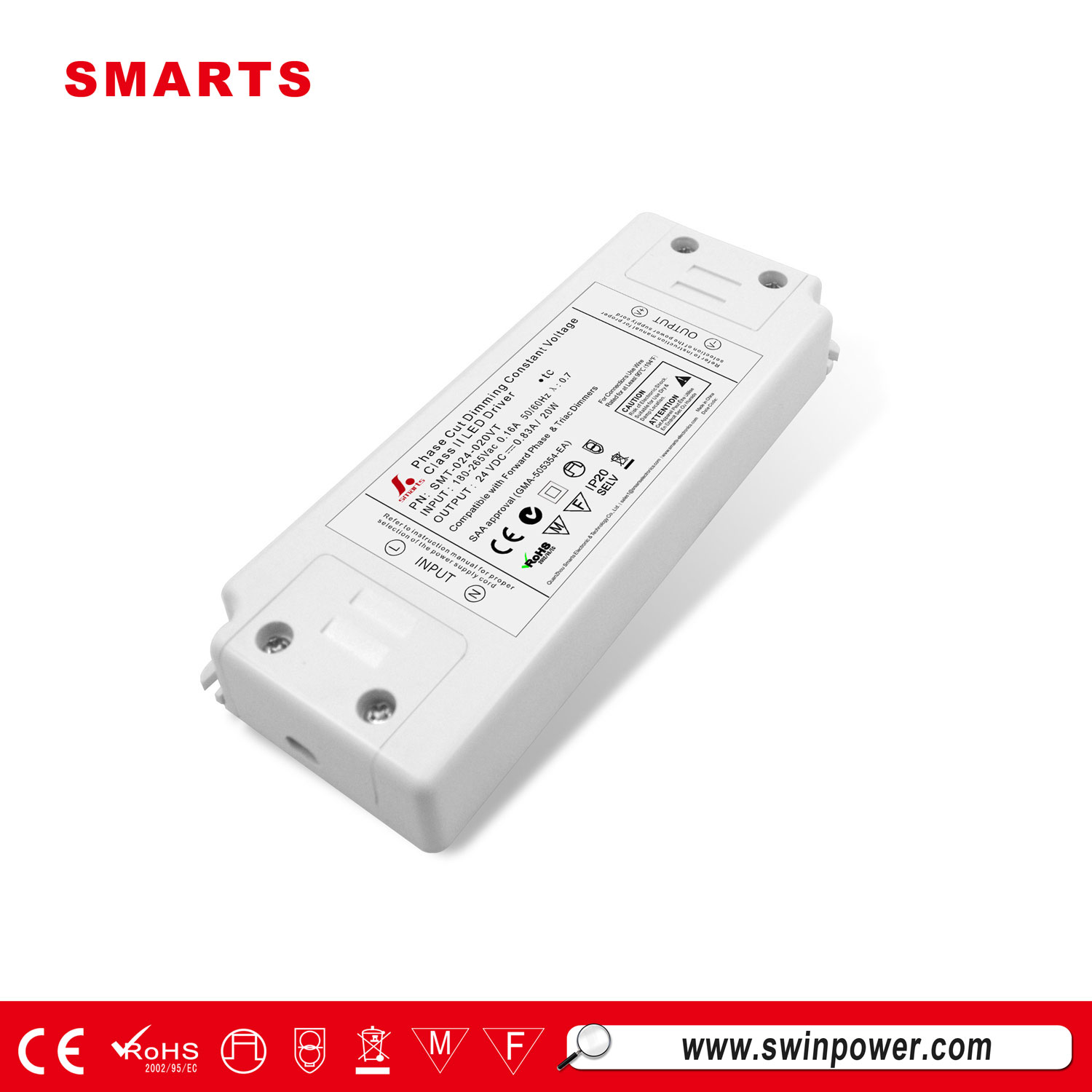

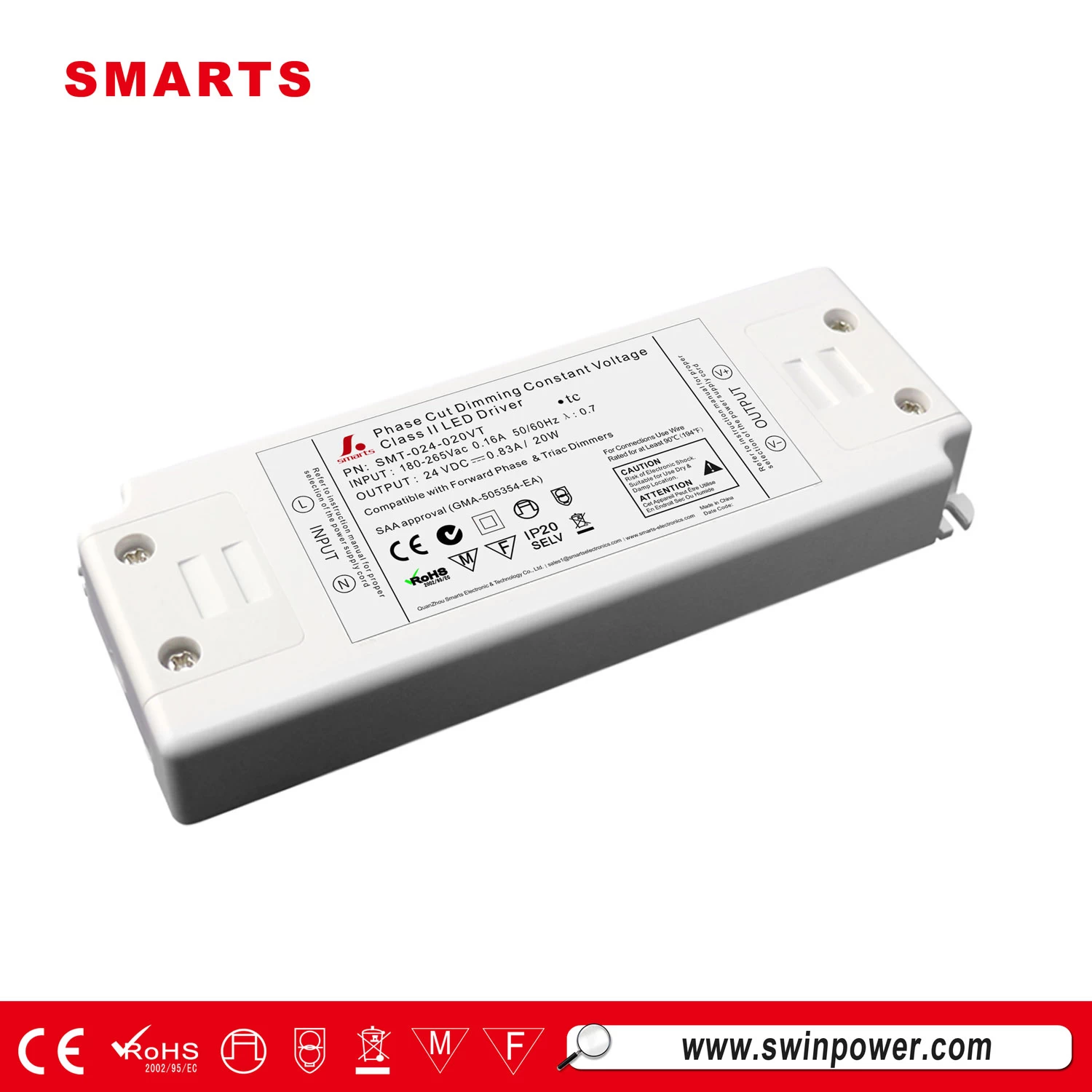

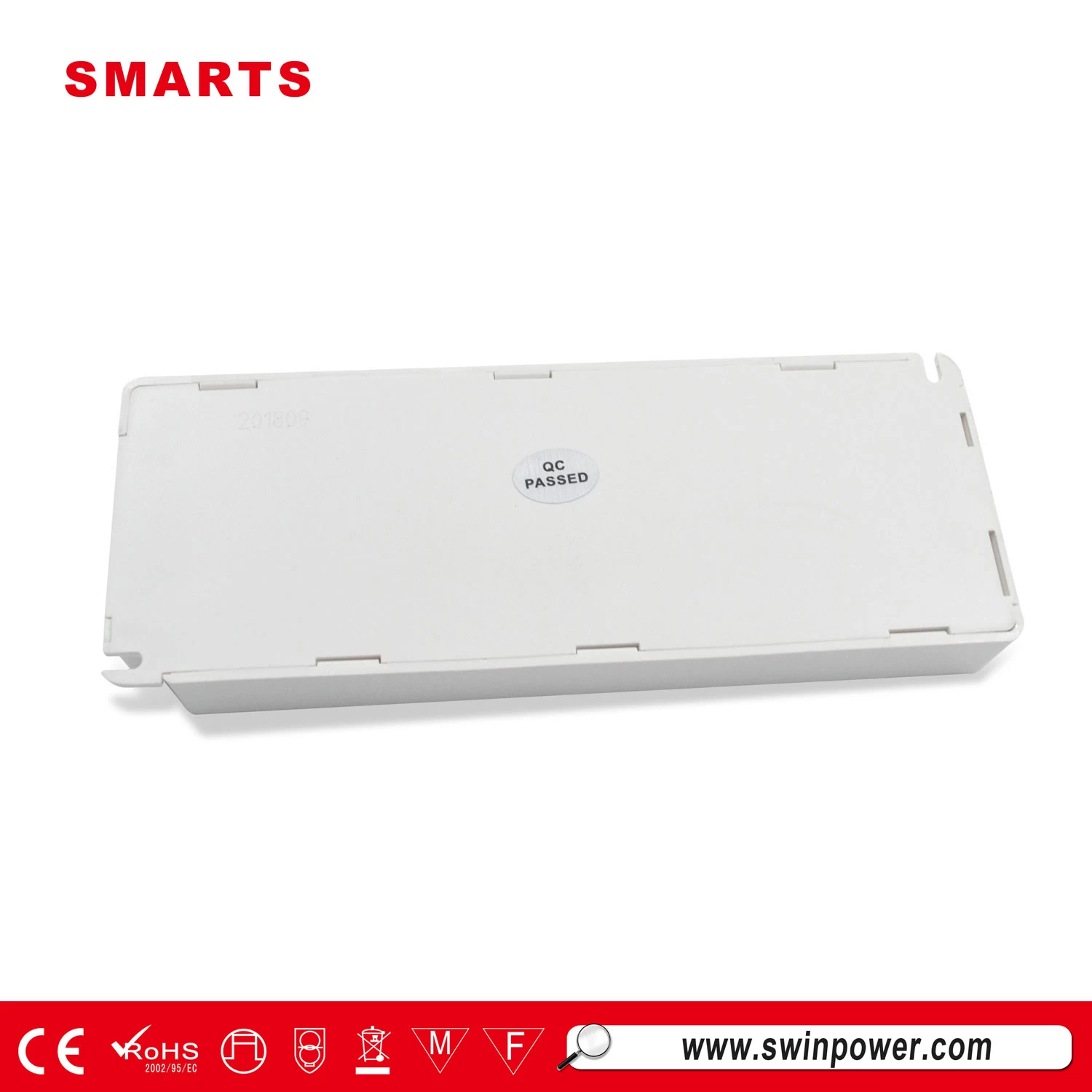

saa rohs approved plastic case 24v led strip power supply 20w led bulb dc power

The cover material of this 20w 24v led strip power supply is plastic case. It is suitable for dry location and cooling by nature. An universal AC input is 180~ 265VAC.




  • Input Voltage180-265V
  • Output Voltage24V
  • Output Current0.83A
  • Working ModeConstant Voltage
  • Dimming modeTriac dimmable
  • Size140*45*28mm
  • CertificationSAA

saa rohs approved plastic case 24v led strip power supply 20w led bulb dc power

The cover material of this 20w 24v led strip power supply is plastic case. It is suitable for dry location and cooling by nature. An universal AC input is 180~ 265VAC. IP20 is its waterproof rate.


Model

SMT-012-020VT

SMT-024-020VT

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

1.66Amp

0.83Amp

Rated power

20W

20W

Input

Voltage Range

180265VAC

Frequency Range

50~60HZ

Power Factor Typ.

PF≧0.92/180V ; PF≧0.94/220V ; PF≧0.95/265V

Full Load EfficiencyTyp.

>83%

>83%

AC CurrentTyp.

0.14A/180VAC  0.12 A/220VAC  0.01A/250VAC

Leakage current

<0.27mA/180VAC; 0.25mA/220VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over voltage

 ≦270VAC(180~265V)

Environment

Working TEMP.

-40+60℃

Working Humidity

2090%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z axes

Safety&EMC

Safety standards

EN-60950-1, EN-61347-1/-2/-13

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (≧50%load)

EMC IMMUNITY

Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry

level surge4KV

Others

Weight

About 0.16Kg/pcs

Size

140*45*28mm

mmmL*W*H

packing

324*298*176mm

Notes

1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and

25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted

pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .


Applications

Our products are widely used in various industries, such as:

  1. indoor LED illuminating lights,
  2. LED Neon,
  3. LED urban Decoration,
  4. LED Lighting Advertising,
  5. LED Display,
  6. Safety Protection Apparatus,
  7. Telecommunications,
  8. Networks,
  9. Vehicle Lights, Controller Panels, etc.
