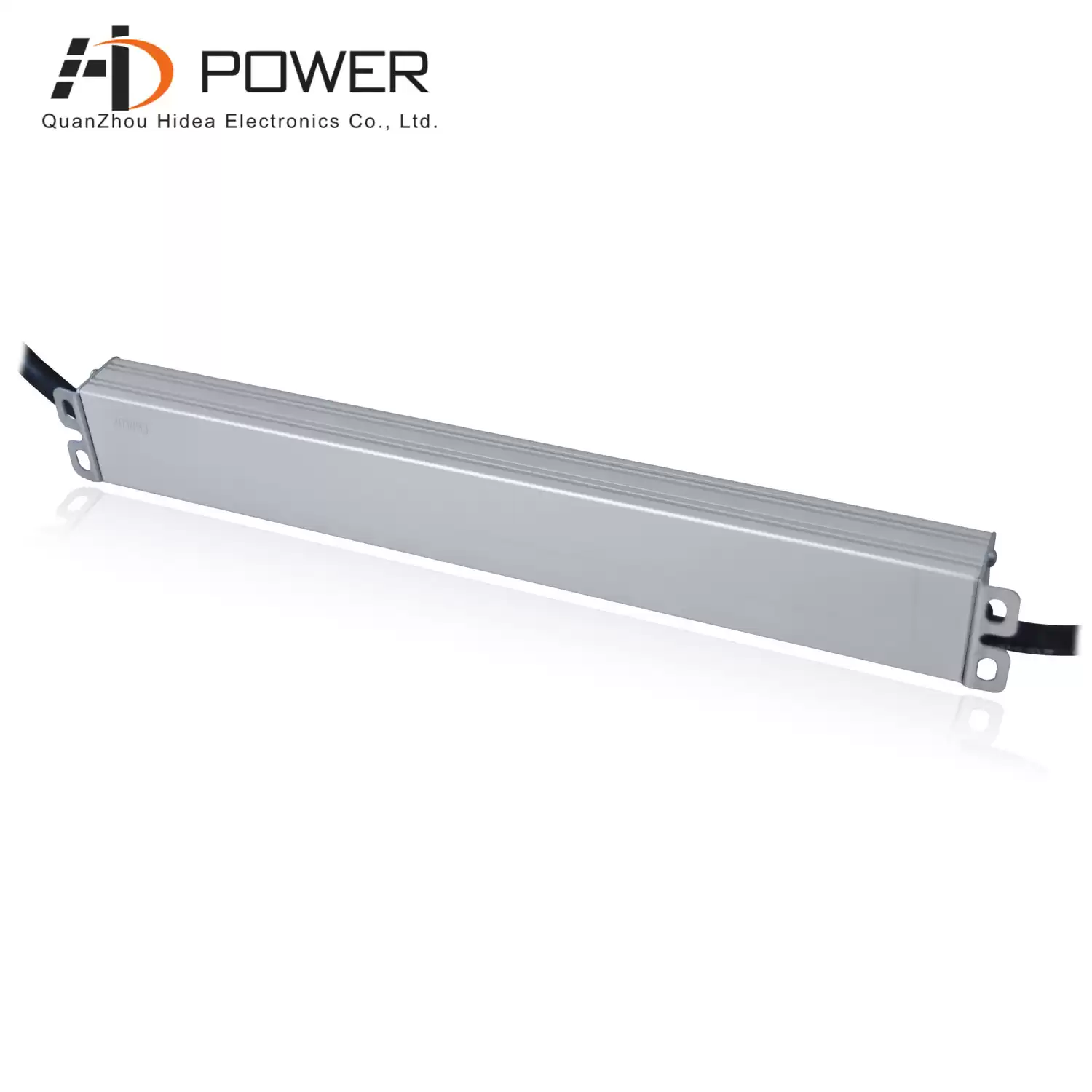

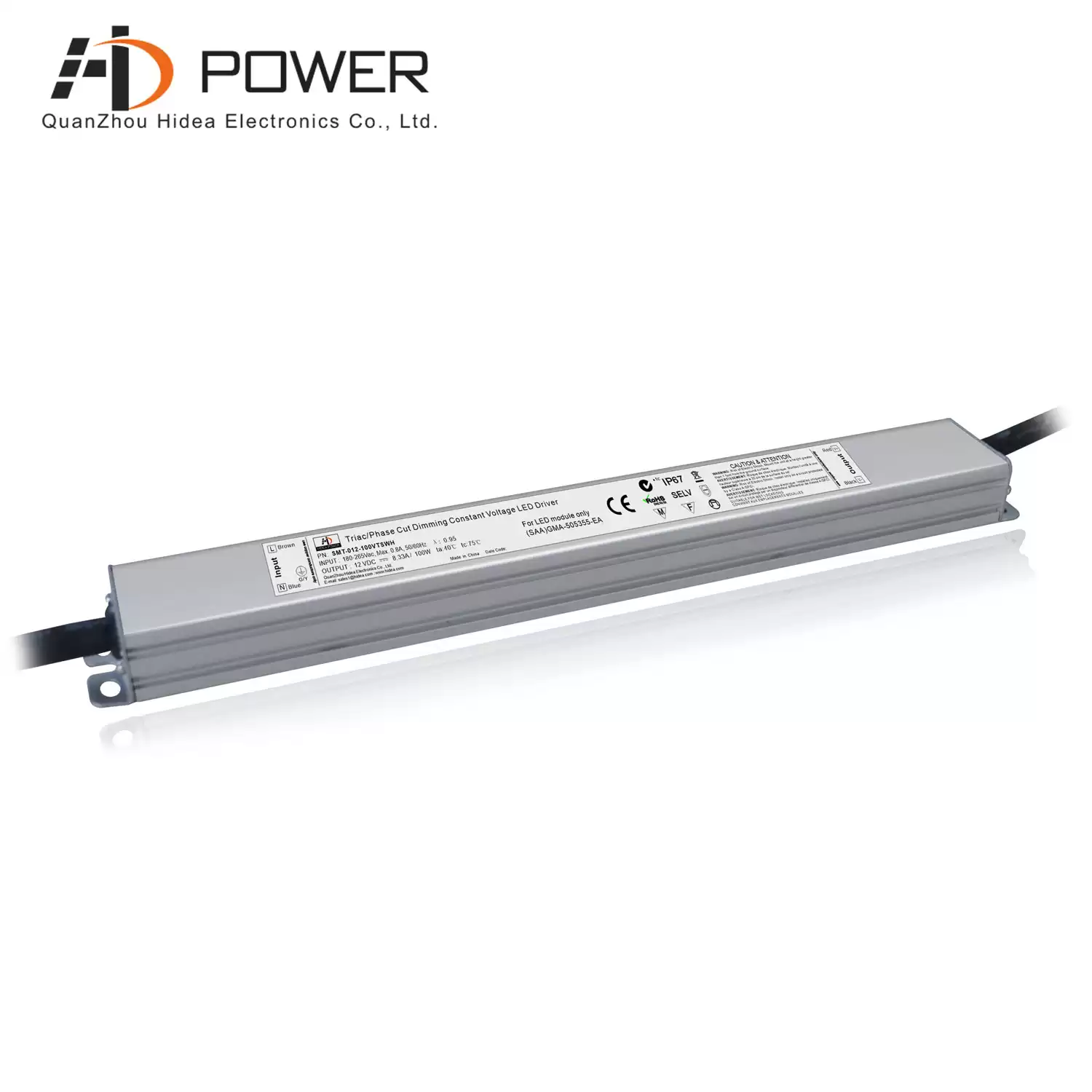

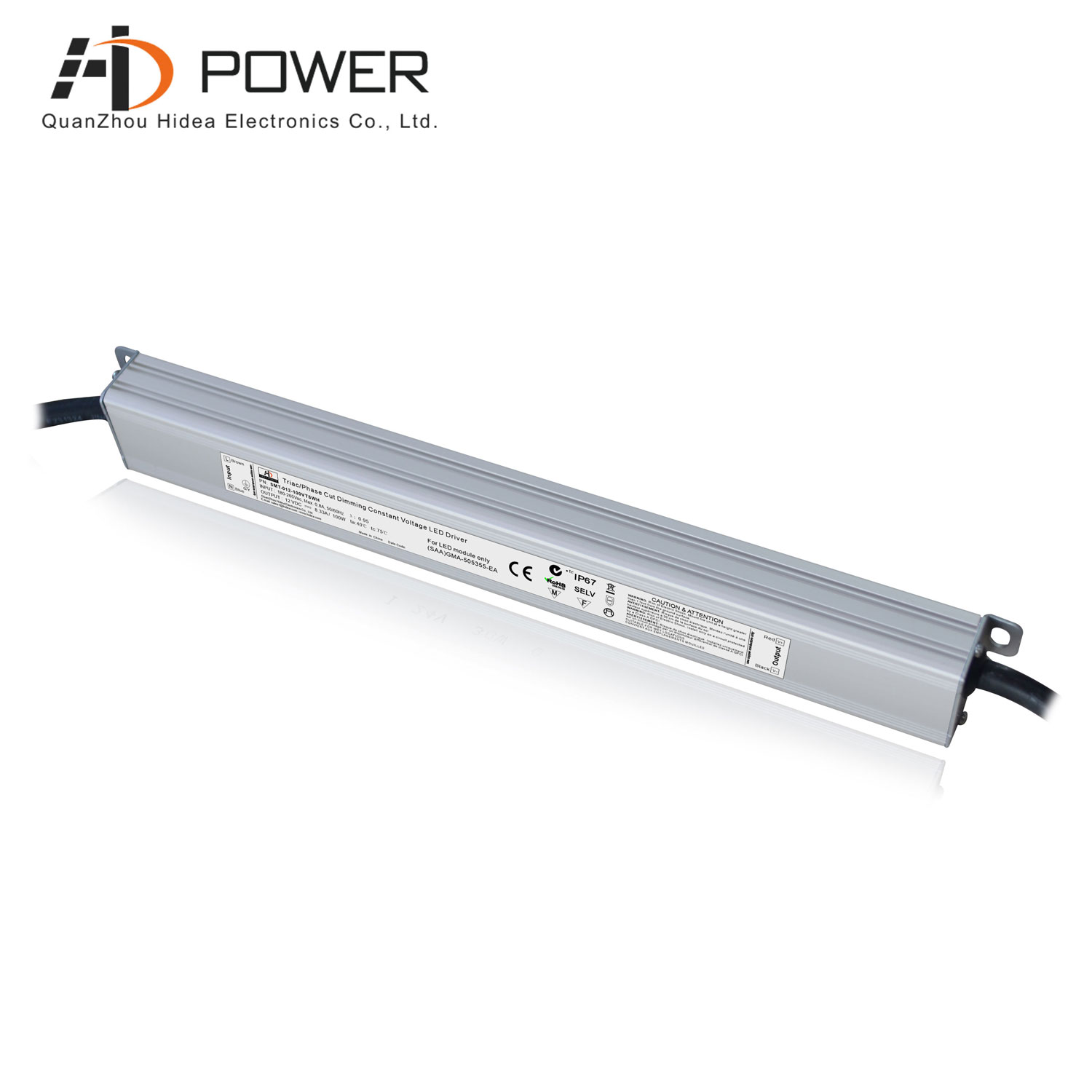

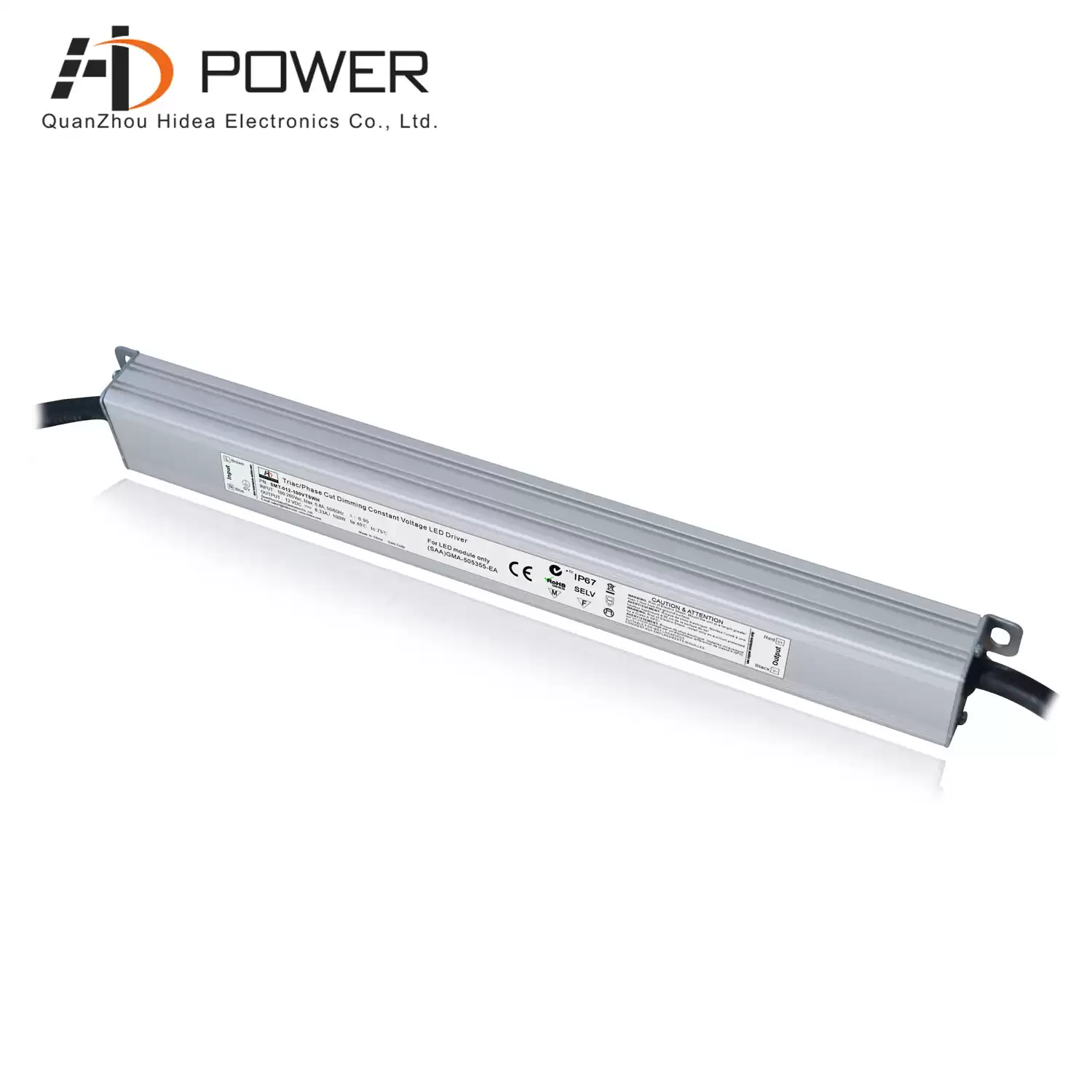

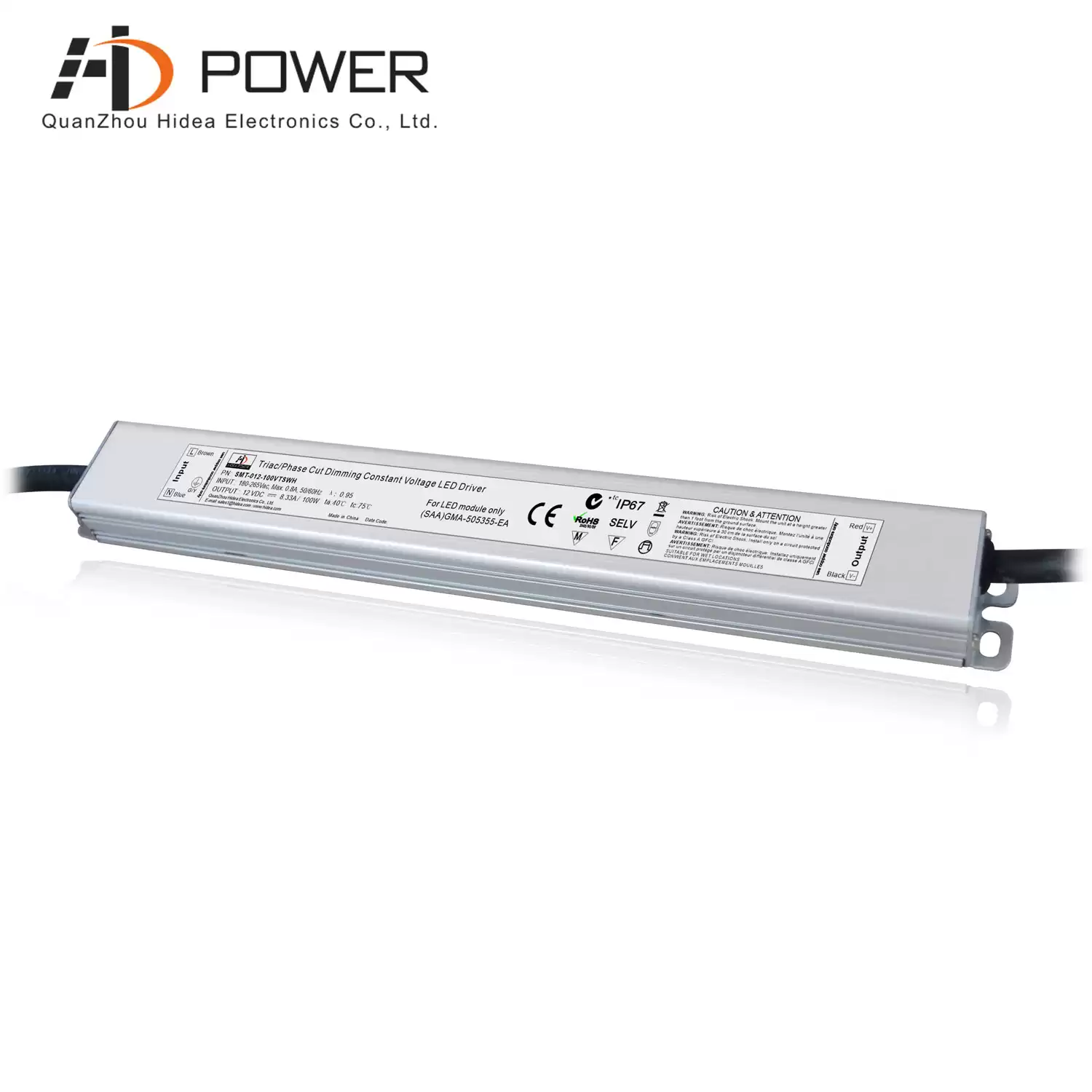

SAA triac dimmable waterproof electronic led power supply 100w ip67 led strip light driver
hidea power 100W silm size triac dimming led driver with good waterproof grade IP67, can effectively water and dust, in line with the global safety lighting regulations, SAA certification is suitable for the use and installation of lighting projects in Australia
Specification
|
model
|
SMT-012-100VTSPH
|
SMT-024-096VTSPH
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
8.33Amp
|
4Amp
|
|
Rated power
|
100W
|
96W
|
|
Voltage Regulation
|
±0.5%
|
|
THD(Typ. ) @ full load
|
<10%
|
|
Load Regulation
|
±2%
|
|
Input
|
Voltage Range
|
200-240VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF≥0.96/230VAC
|
|
Full Load Efficiency(Typ.)
|
>86%
|
>88%
|
|
AC Current(Typ.)
|
0.61A/200VAC
|
0.59A/200VAC
|
|
Inrush Current(Typ.)
|
52A, 50% 210us@230VAC
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Protection Class
|
II
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 EN62493
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG: 100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
EN55015 EN61000-3-2 EN61000-3-3
|
|
EMC IMMUNITY
|
EN61000-4-2,3,4,5,6,11 EN61547
|
|
Others
|
Weight
|
0.4Kg
|
|
Size
|
330*30*22mm(L*W*H)
|
|
packing
|
50pcs /CTN SIZE: 350X330X145mm
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
