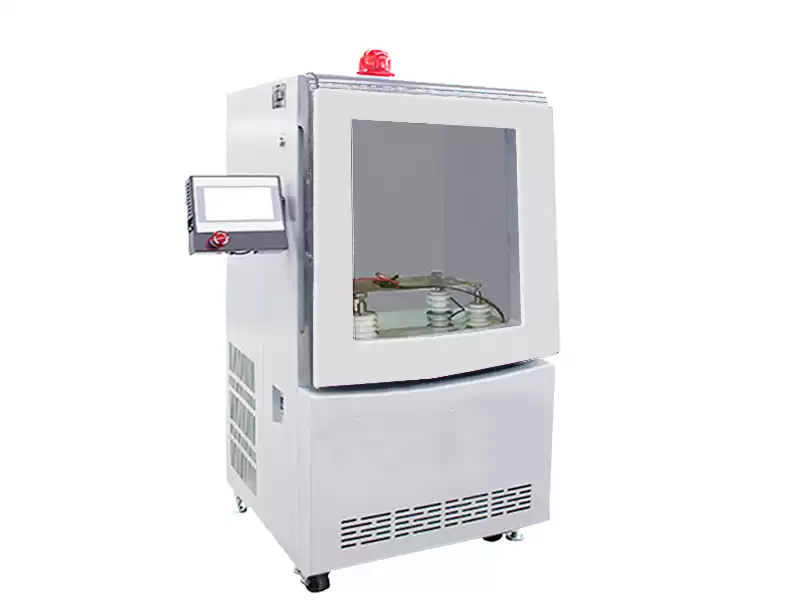

Safety Shoe Electrical Resistance Tester

Safety Shoe Electrical Resistance Tester is used to determine the electrical resistance of various safety shoes.

Test Standards

ANS-Z41 section 4, CSA-Z195 section 5.4 , AS/NZS 2210.2 section 5.11,
GB12011, GB/T20991 section 5.11, ASTM F2412 section 9, ASTM F2413 section 5.5.
NOM-113-STPS-2009 Section 8.5
ISO 20345, EN 50321

Parameters

Model AT-F3027-20KV AT-F3027-30KV
Voltage raised rate Increasing 1KV/second, up to prescribed voltage. when reaching 75% of set voltage, the speed will switch to 100V/second
Output voltage range AC 0~20KV AC 0~30KV
Current leakage range AC 0~20mA
Transformer capacity 500VA 600VA
Voltage maintained time 0S~99S
Boot electrode solid metal spheres Diameter: 3.5mm
Depth of inner electrode At least 30mm
Specimen plate 40X20cm
Power supply 1 phase, AC 220V, 3A
Accessories Dia. 3.5mm solid metal spheres  1pack
35KV Insulated gloves  1set
35KV Insulated pad  1m²
Power line  1pc



If you are looking for more lab testing equipment, please feel free to contact .
