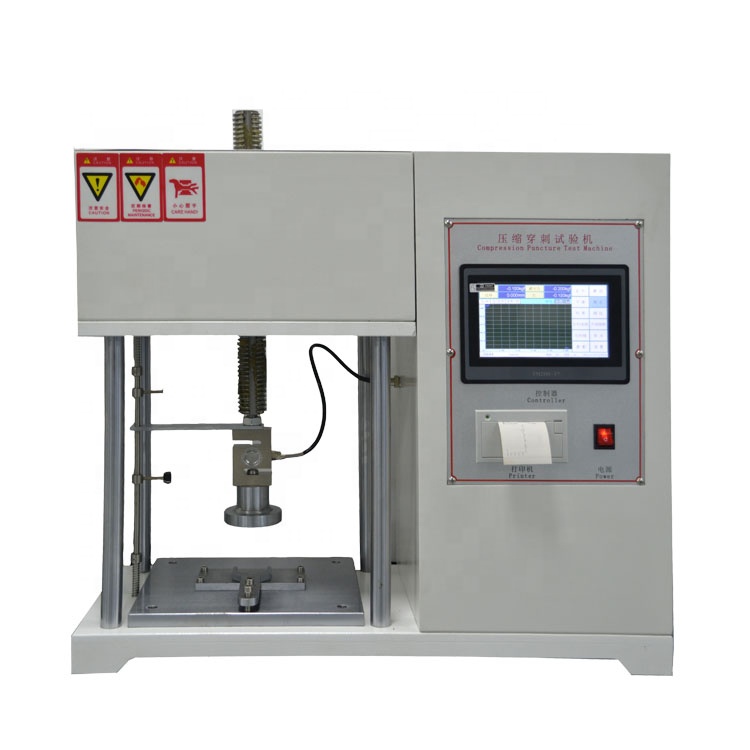

Safety Shoes Compression and Puncture Resistance Tester
Safety Shoes Compression and Puncture Resistance Tester is used to evaluate the resistance of safety shoes’ toecap to compression, and penetration resistant performance of soles of safety shoes under specified conditions.
Test Standards
ISO 20344-5.5, 5.8, AS/NZS2210.2-5.5, 5.8, EN12568-5.23, 7.2, EN 344-1-5.4, 5.6, EN 388-6.4, BS-953-5, ASTM F2412-6, 11 ASTM F2413-5.2, 5.7 etc.
Parameters
Nail penetration test Penetration speed: (10±3)mm/min
Tip: diameter (4.5±0.05)mm
Clamp hole dia.: 25mm
ASTM F2412 2413:
Compress head dia.: 76.2(3inch)
Compress plate width: 152.4mm
Displacement resolution: 0.01mm
Constant speed specify penetration force
Speed: (10±3)mm/min
When the applied force reached 1.1kN(1.2KN), the compression stopped, and then observe specimen within 10S
Force unit switch Kgf, N, lbf, g, ton,Mpa
Machine transmission mode Servo motor drive, synchronous wheel and precision ball screw drive
Stop mode Overload stop, emergency stop button, specimen damage automatic stop, Upper&Lower limit set automatic stop, automatic reset function
Power supply 1 phase, AC 220±10% 50/60Hz
