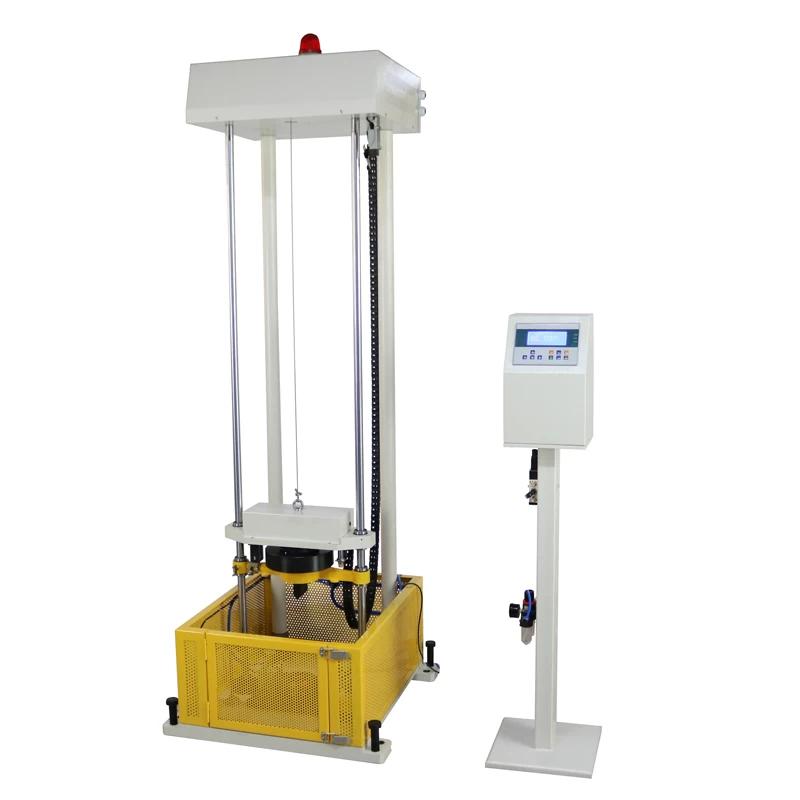

Safety Shoes Impact Tester GT-KB17
Product Introduction
|
Application:

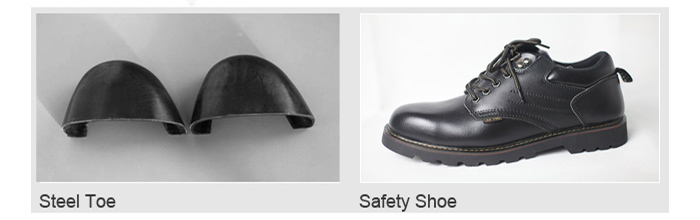

Safety Shoes Impact Tester is used for impact resistance of safety shoes. Impact steel head of safety shoes by 100J or 200J kinetic energy, and inspect it subsidence to check it quality.
Standards:
EN ISO 20344 Section 5.4 and 5.16, AS/NZS 2210.2 Section5.4 and 5.16, CSA-Z195 Section 5.21, ANSI-Z41 Section 1.4.5, ASTM F2412 Section 5, ASTM F2413Section 5.1
|
|

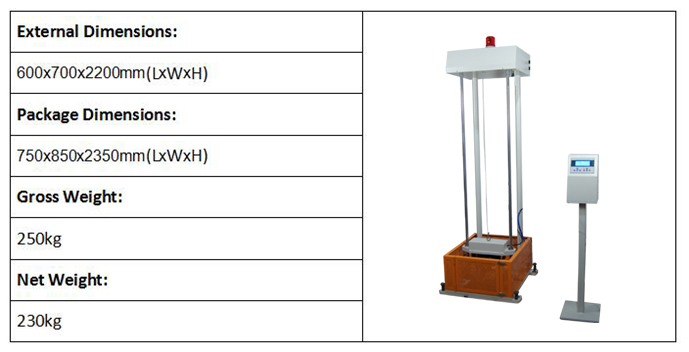

Dimensions
Feature
1. Equip with protection fence, to avoid hazardous objects splash
2. Control box separate with impactor, to protect personnel security.
3. Equip with electromagnet absorption device and automatically grab impact head to set height
Equip with two buffer cylinder, to avoid second impact.

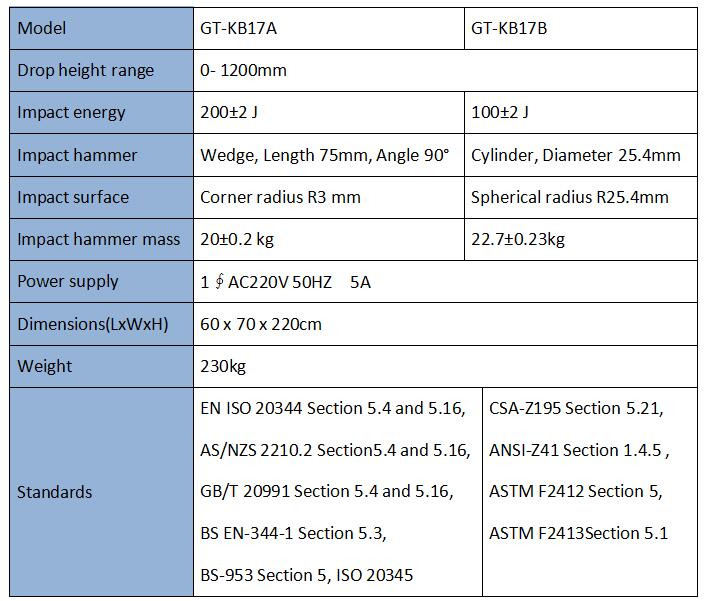

Key Specifications
Application Industry
All the material blow can be tested on the Shoes Impact Tester
