Category
|
Specification
|
|
Model
|

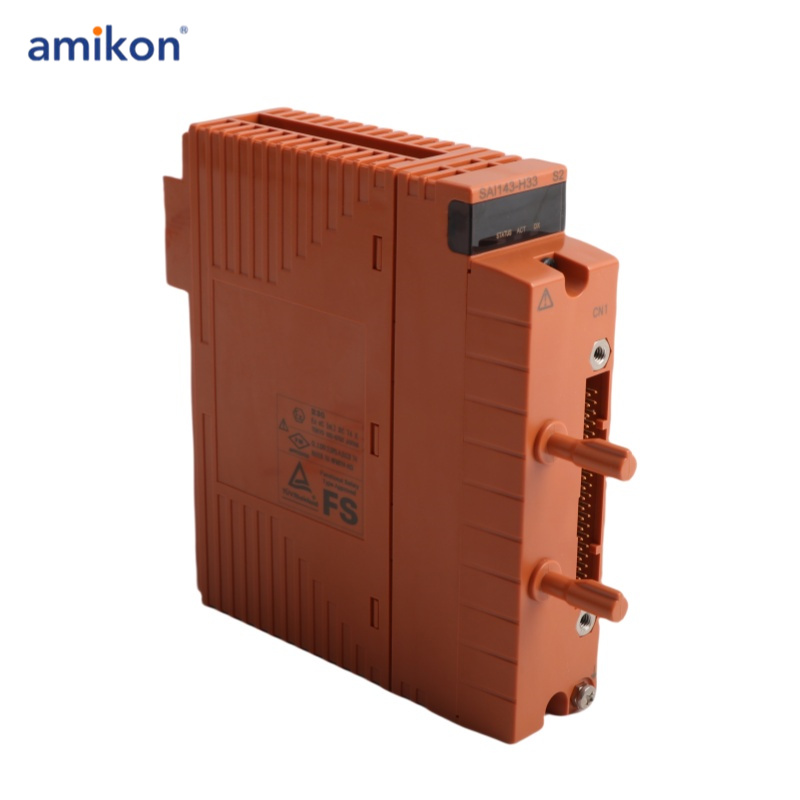

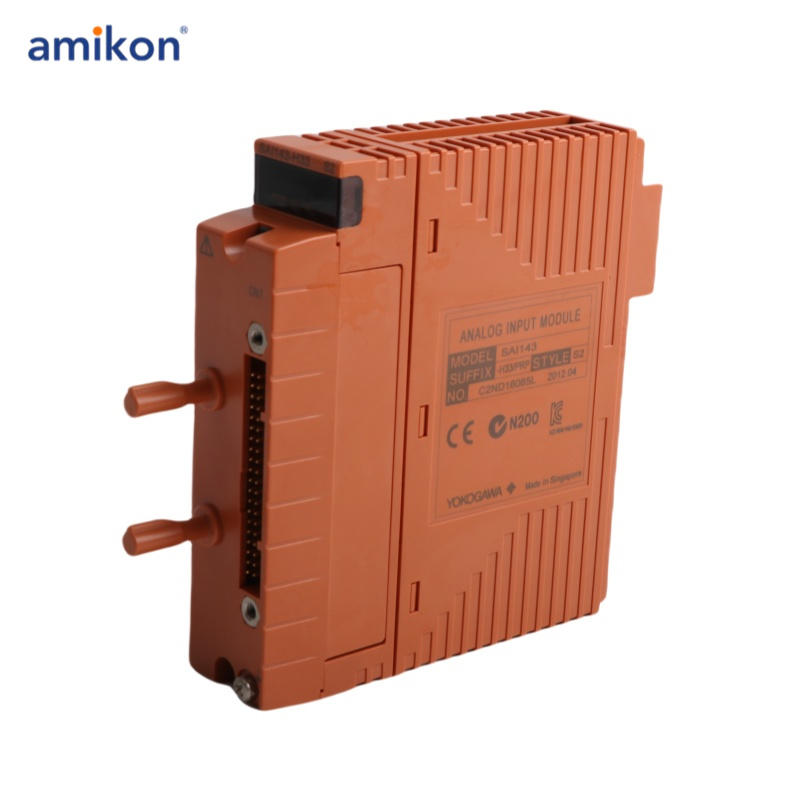

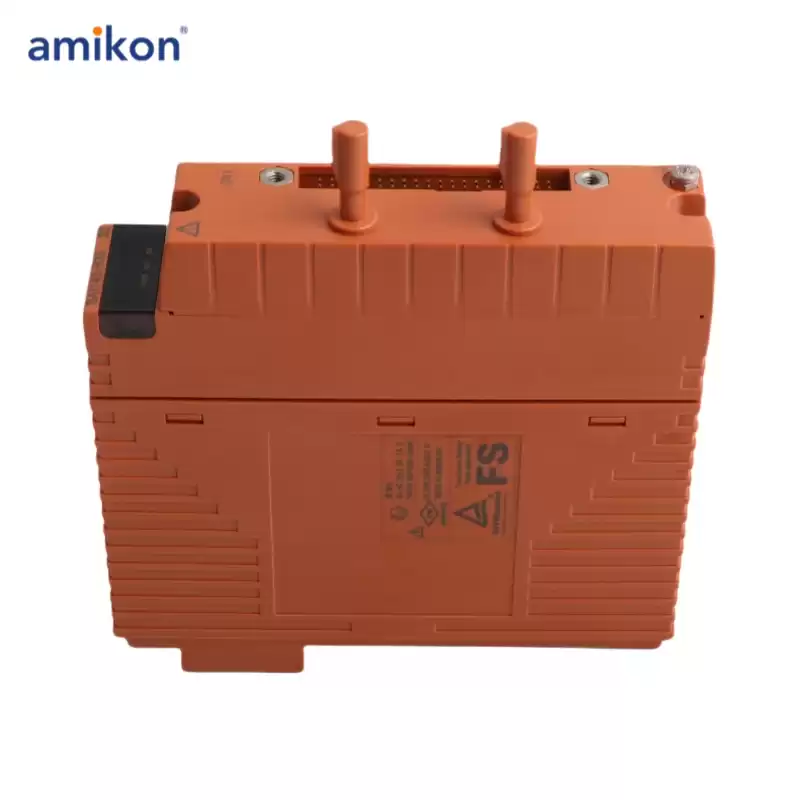

SAI143-H33 S2
|
|
Number of Input Channels
|
16 channels, module isolation (*5)
|
|
Rated Input Range
|
4 to 20 mA
|
|
Permissible Input Range
|
0 to 25 mA
|
|
Data Update Frequency
|
40 ms
|
|
Temperature Drift
|
±16 µA/10 °C
|
|
Transmitter Power Supply
|
16.15 V minimum (at 20 mA), 26.4 V maximum (at 0 mA)
|
|
Output Current Limit
|
25 mA
|
|
2/4-Wire Setting
|
Individual channel setting, changed by setting pins
|
|
Withstand Voltage
|
1.5 kV AC between input signal and system for 1 minute (*2)
|
|
Maximum Current Consumption (5 V System)
|
320 mA
|
|
Maximum Current Consumption (24 V System)
|
550 mA
|
|
Support PRM
|
Available (SAI143-H)
|
|
Transmitter Power Supply ON/OFF Function
|
Available in 2-wire setting, for all 16 channels at the same time
|
1: No Zener barriers can be connected to this module. An isolation barrier should be used when an intrinsic safety instrumented system is used.
2: 500 V AC when dedicated signal cable is used.
3: ±32 µA (input range under 0.05 mA) (Style code S3 or later)
4: Rated accuracy of style code S3 or later is ±16 µA (Input range 0.05 to 23 mA).Rated accuracy of style code S2 or earlier is ±16 µA (Input range 1 to 23 mA).
5: When SAI143-S3 or SAI143-HC is used in the ambient temperature more than 60°C, number of input channels which a user can use is restricted. Refer to “ProSafe-RS Outline of I/O Modules (for FIO)” (GS 32P06K60-01EN).
6: The maximum voltage drop in the input protection circuit is 0.45 V. The module input impedance varies from 272.5 Ω (20mA) to 362.5 Ω (4 mA).
7: This function enables to reset the alarm state of Fire and Gas devices by turning off the transmitter power supplied from this module in 2-wire setting.Supported by R4.03.00 or later and style code S4 or later
