Category
|
Specification
|
|
Model
|

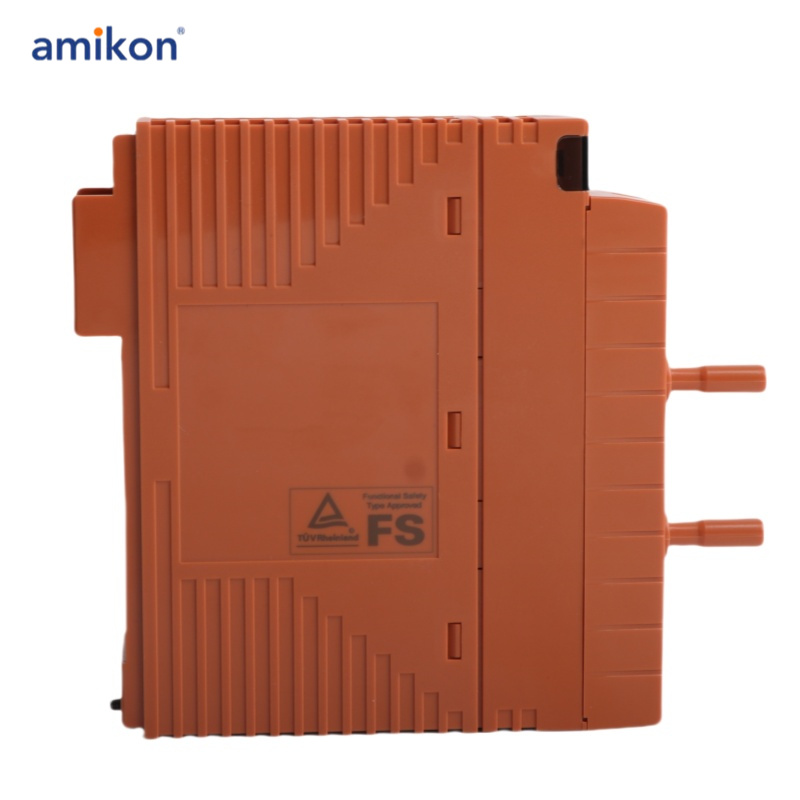

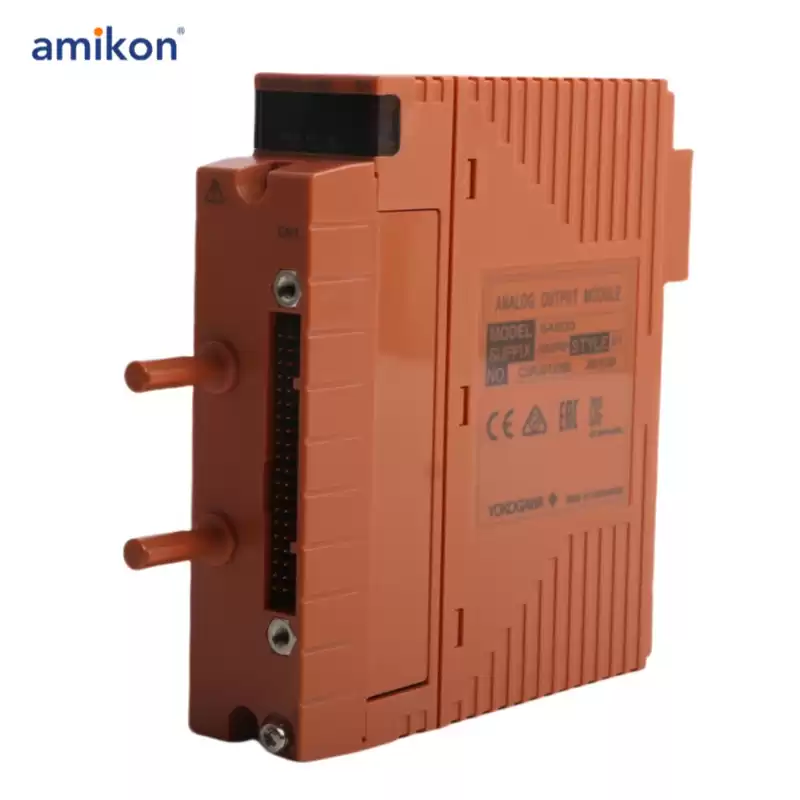

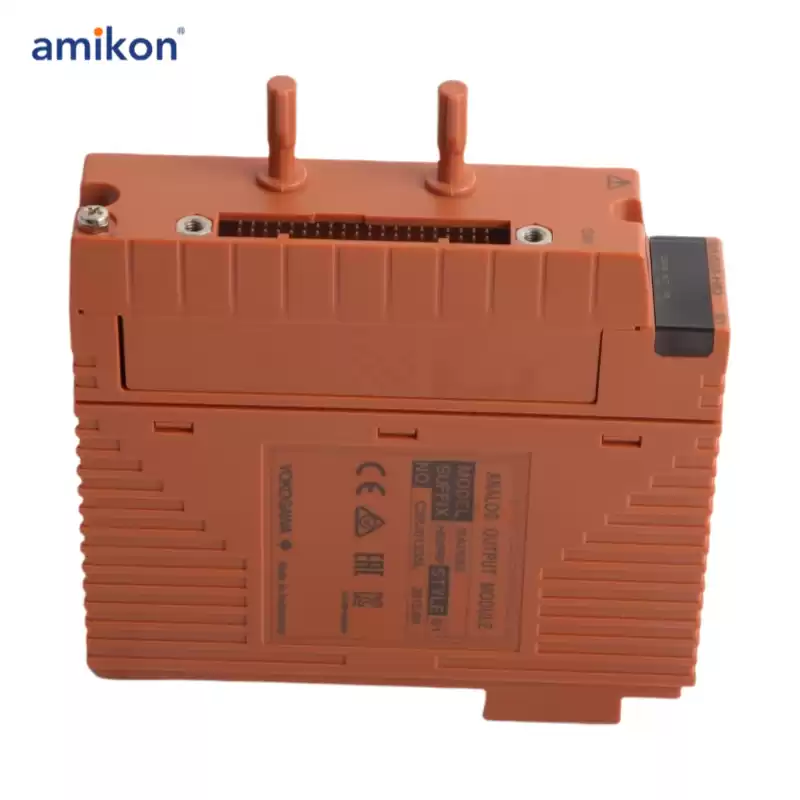

SAI533-H03 S1
|
|
Number of Output Channels
|
8 channels, module isolation (*3)
|
|
Rated Output Range
|
4 to 20 mA
|
|
Maximum Range of Guaranteed Precision
|
1.25 to 23 mA
|
|
Output Range
|
1.25 to 23 mA
|
|
Allowable Load Resistance @ Rated Range
|
230 to 600 Ω
|
|
Accuracy
|
±48 µA
|
|
Data Update Frequency
|
40 ms
|
|
Temperature Drift
|
±16 µA/10 ºC
|
|
Withstand Voltage
|
1.5 kV AC between output signal and system for 1 minute (*1)
|
|
Maximum Current Consumption (5 V System)
|
320 mA
|
|
Maximum Current Consumption (24 V System)
|
300 mA
|
|
Weight (For Pressure Clamp Terminal Block or MIL Cable)
|
Approx. 0.26 kg
|
|
Weight (With Signal Cable Interface Adapter)
|
Approx. 0.33 kg
|
