Item
|
Specifications
|
|
Model
|

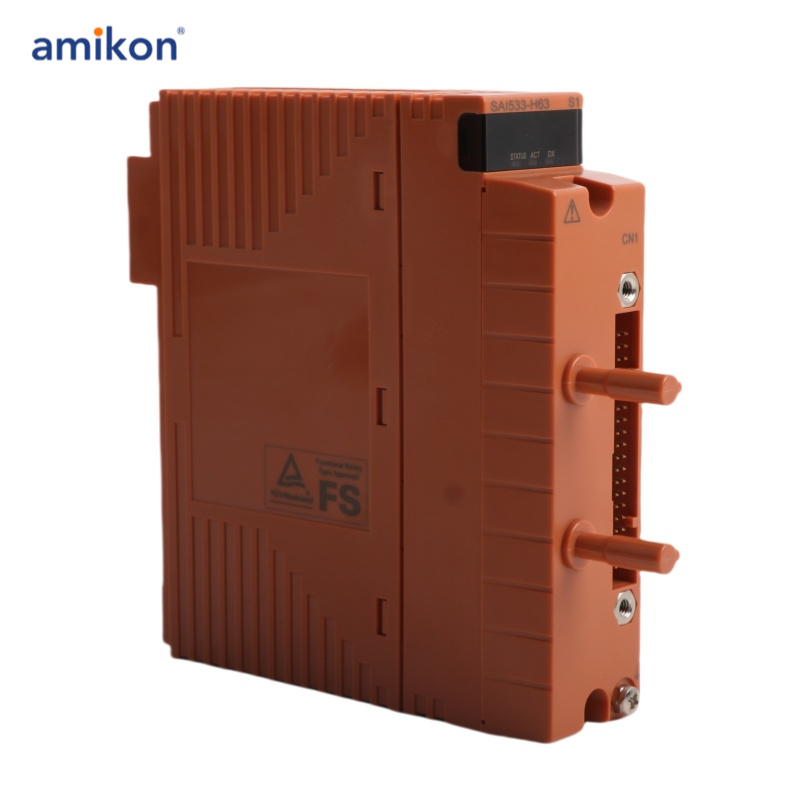

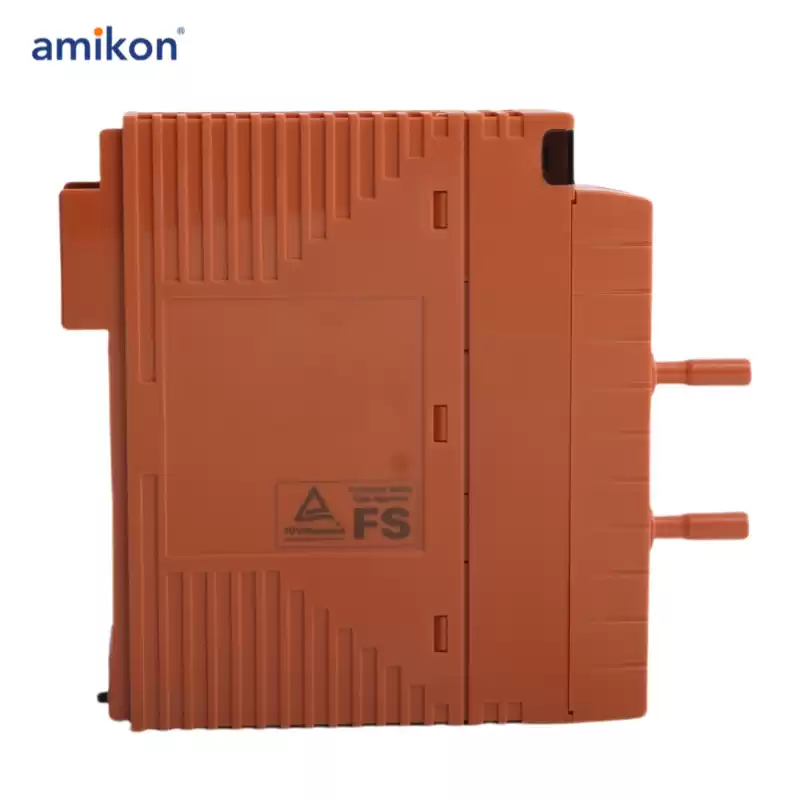

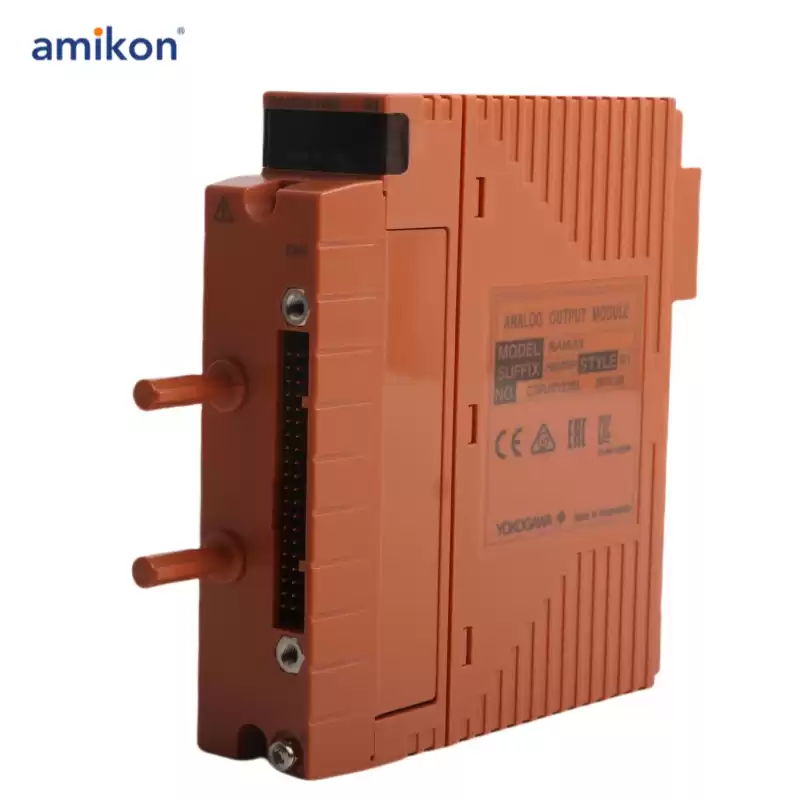

SAI533-H03
|
|
Number of output channels
|
8 channels, module isolation (*3)
|
|
Rated output range
|
4 to 20 mA
|
|
Maximum range of guaranteed precision
|
1.25 to 23 mA
|
|
Output range
|
1.25 to 23 mA
|
|
Allowable load resistance @ rated range
|
230 to 600 Ω
|
|
Accuracy
|
±48 μA
|
|
Data update frequency
|
40 ms
|
|
Temperature drift
|
±16 μA/10 °C
|
|
Withstand voltage
|
1.5 kV AC between output signal and system for 1 minute (*1)
|
|
Maximum current consumption
|
5 V system: 320 mA<br>24 V system: 300 mA
|
|
Weight
|
Approx. 0.26 kg (For pressure clamp terminal block or MIL cable)<br>Approx. 0.33 kg (With signal cable interface adapter)
|
|
External connection
|
Pressure clamp terminal<br>MIL cable<br>Dedicated signal cable
|
|
Support PST(*2)
|
Available (KS1)
|
