Description
|
|
Model
|

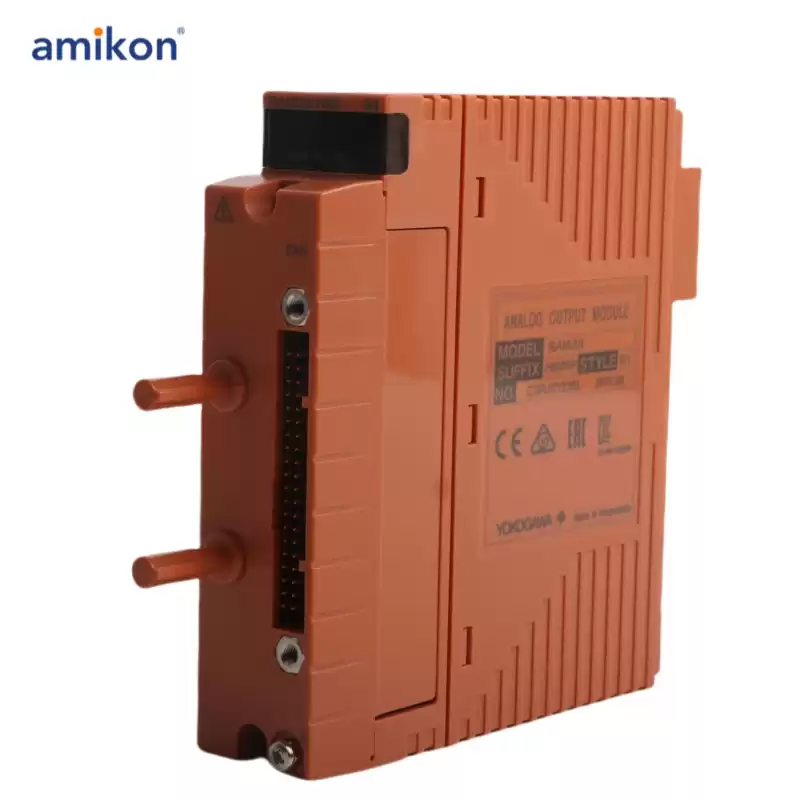

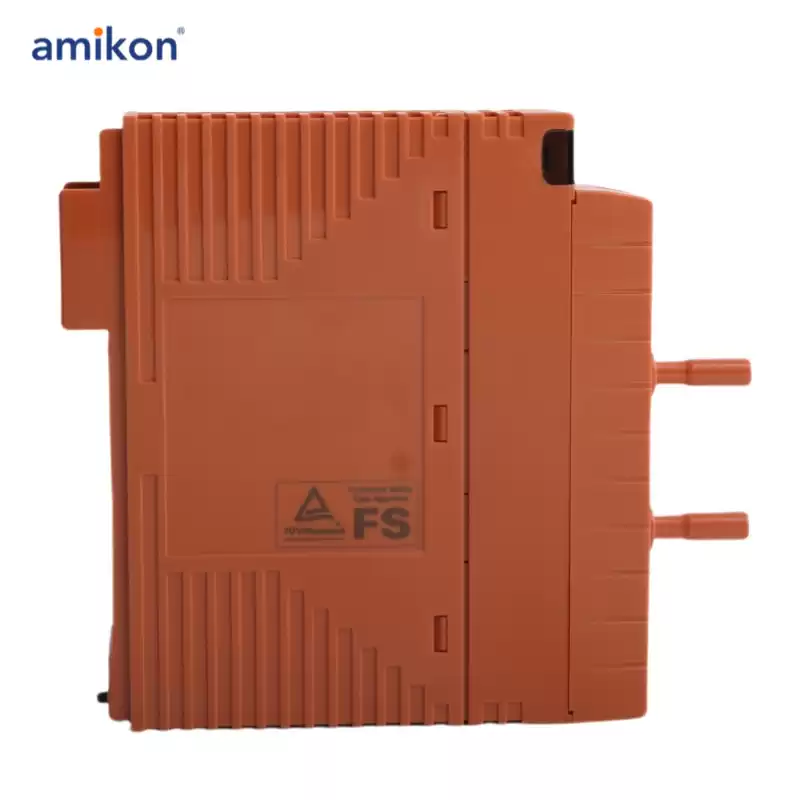

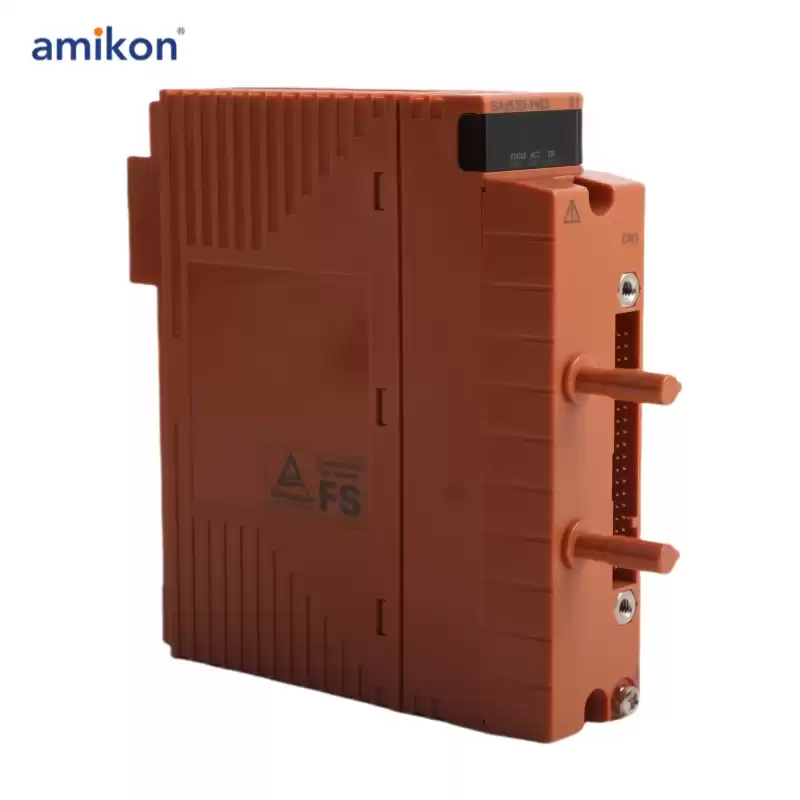

SAI533-H63 S1
|
Analog Output Module (4 to 20 mA, 8 channels, module isolation)
|
|
Suffix Codes
|
-H
|
With HART communication
|
|
5
|
For pressure clamp terminal block or MIL cable with no explosion protection
|
|
6
|
With signal cable interface adapter and no explosion protection (*1)
|
|
E
|
For pressure clamp terminal block or MIL cable with explosion protection
|
|
F
|
With signal cable interface adapter and explosion protection (*1)
|
|
3
|
With ISA Standard G3 and temperature (-20 to 70 ºC)
|
|
/A4S00
|
With pressure clamp terminal block for analog [Model: STA4S-00]
|
|
Option Codes
|
/A4S10
|
With pressure clamp terminal block for analog (with surge absorber) [Model: STA4S-10]
|
|
/A4D00
|
With dual-redundant pressure clamp terminal block for analog (*2) [Model: STA4D-00]
|
|
/A4D10
|
With dual-redundant pressure clamp terminal block for analog (with surge absorber) (*2) [Model: STA4D-10]
|
|
/PRP
|
With prevention pin of false insertion (*3)
|
|
/CCC01
|
With connector cover for MIL cable (for flat ribbon cable) [Model: SCCC01]
|
*1: When selecting SAI533-H63 or -HF3, you can not choose the option code of pressure clamp terminal block and MIL cable connector.
*2: When using this module in a dual-redundant configuration, order an additional module with the same specifications but without option codes.
*3: When SAI533-H63 or -HF3 is selected, you can choose the option code for prevention pin of false insertion.
A mechanism to prevent wrong type I/O module insertion is supported with signal cable. The signal cable used with this I/O module must have option code /SAI533.
