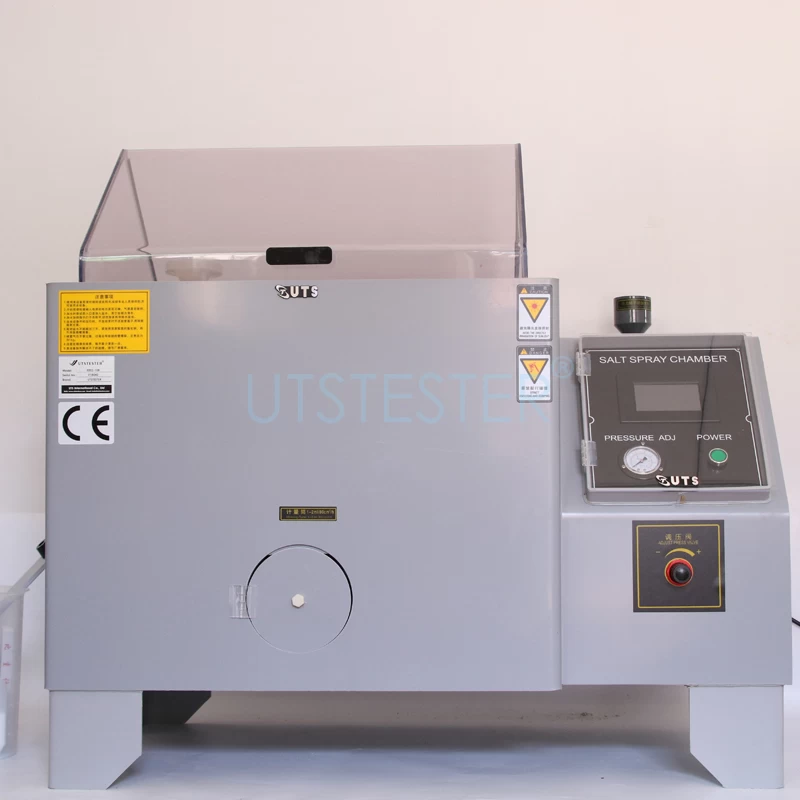

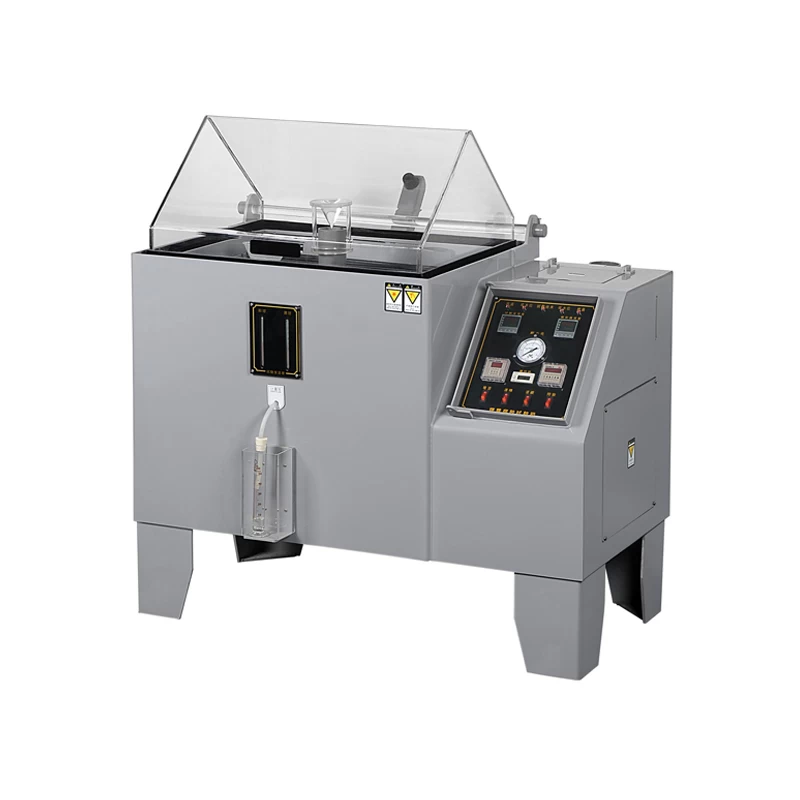

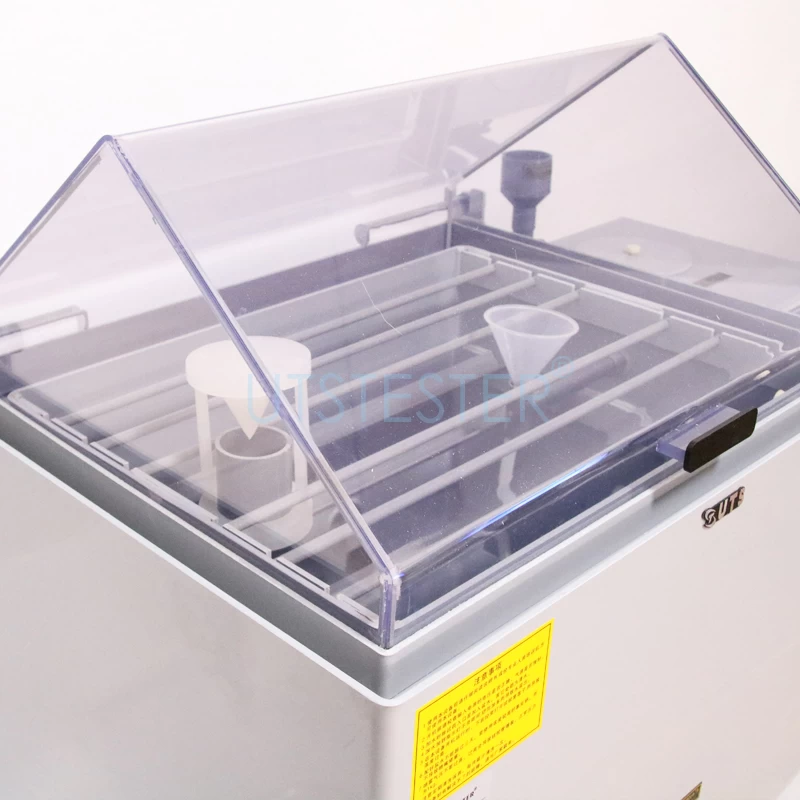

Salt Spray Tester E002
This instrument is mainly to do surface processing for various materials, including paints, electroplate, inorganic and anti-rust oil, and after anticorrosion treatment, test the corrosion resistance of their products.
Widely used in the aerospace industry, automobile electronics, electronic electrician, mobile phone digital, plastic products, metal materials industries.

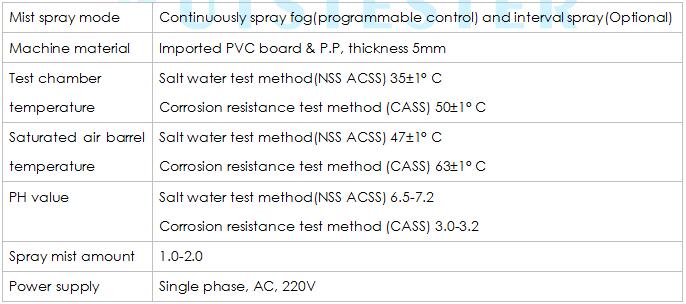

Key Specifications
Test Principle
Compress corrosive solution as air-atomizing to cover each sides of sample. Continuously or circularly conduct this test until sample appear prospective corrosive phenomenon. Record the corrosive time to assess sample’s corrosion resistance.
Test Standards
GB/T 2423.18-2000, GB/T 6461-2002, GB/T 12967.3-91 CASS, GB/T 5170.8-2008, GB/T 5170.11-2008
GJB 150.11A-2008, GB/T 2423.17-2008, GB/T 10587-2006, GB/T 6461-2002, QB/T 3828-1999
ASTM.B117-2009, JIS H8502, IEC 60068-2-11-1981, IEC 68-2-52 1996, ISO 9227-2006
CNS 8886-2002, CNS 4159, CNS 4158
Feature
1.Automatic or manual adding water system, auto supplement water when lack of water, which ensure test will not be paused.

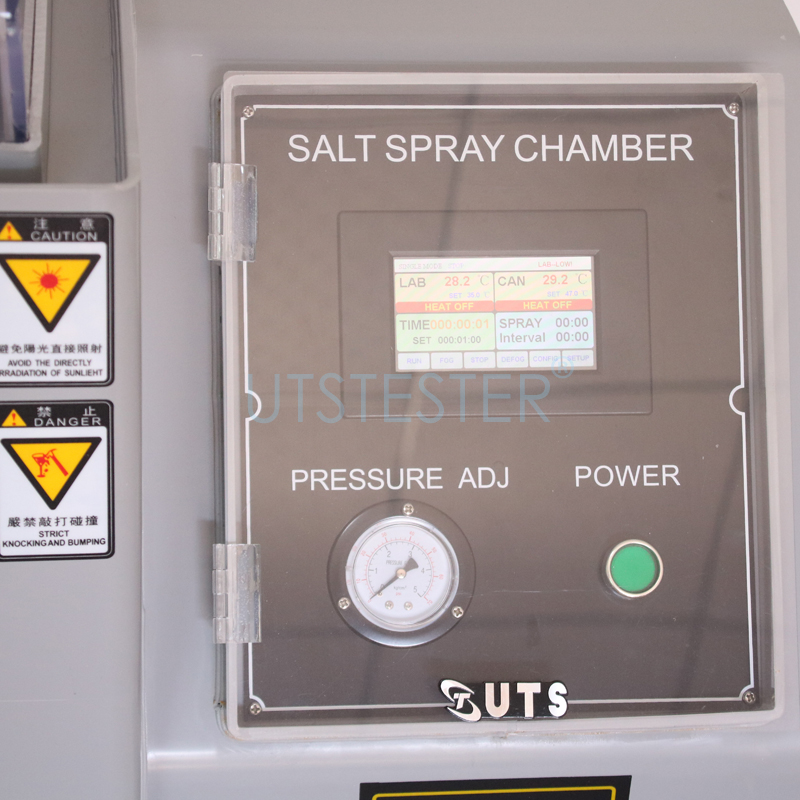

2.Temperature controller adopts digital display, PID control error ± 0.1 ° C.
3.Double over heat protection and alarm when lack of water to ensure safety usage.
4.Test chamber uses steam direct heating mode, ensure fast heating and uniform to reduce standby time.

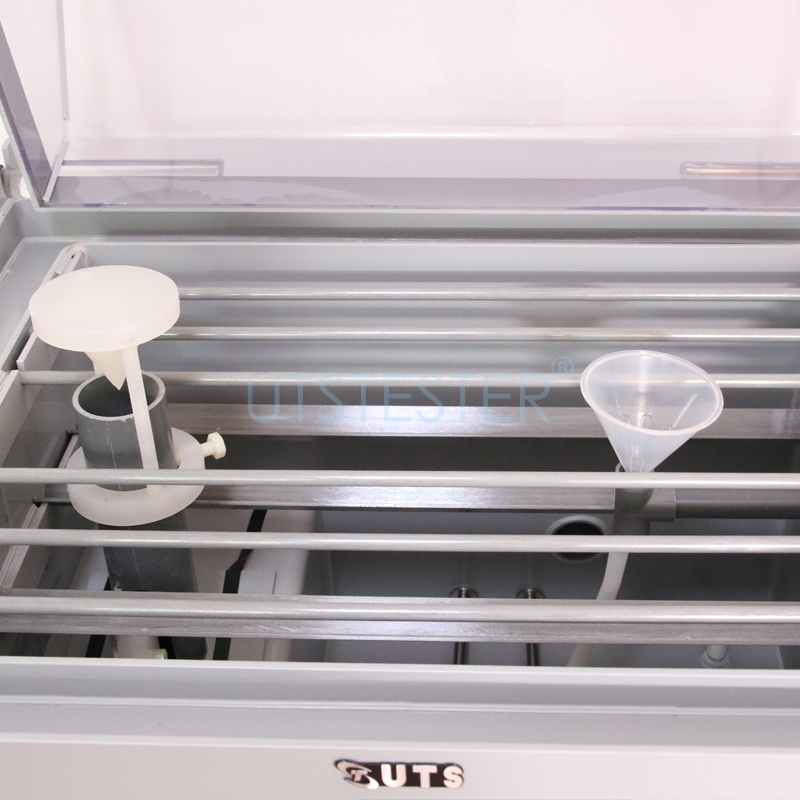

5.Precision glass nozzle is available to adjust fog and amount of fog.
Applications
