Same Manual Roller Press Machine For Lab Research

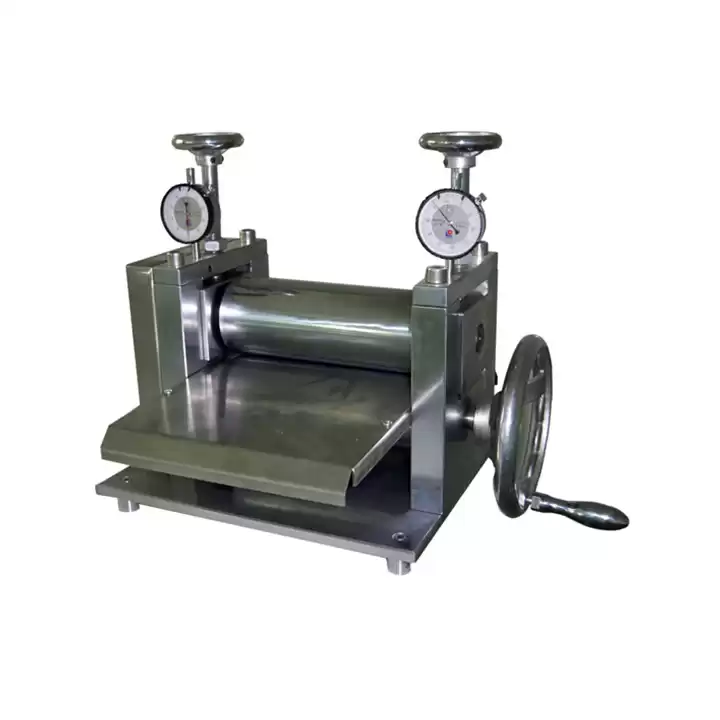

1 TMAX-SG-100LLab Roll Press Machineis aManual Rolling Press Machine. It has dual rollers of 96 mm dia. x 100mm width and dual grade micrometer. Thislab roll press machineis an ideal rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying.
2 ThisLab roll press machineis mainly used in the laboratory lithium battery materials, small amount of precious metals such as gold and silver materials, copper, aluminum and other non-ferrous metal materials manually suppressed
|
Model
|
SG100L
|
|
Roller Dimensions
|
100mm(Dia.)*100mm(W)
|
|
Roller
|
1. Roller diameter tolerance: 0.004mm
2. Material: Made from hardened tool steel (RC > 62) with Cr electroplated coating
|
|
Roller Surface Hardness
|
62 HRC
Never roll materials with hardness > 50HRC
|
|
Compliance
|
CE Certificate
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Warnings
|
1. Never roll materials with hardness > 50HRC
2. In order to prolong the lifespan of the roller bearings, regular lubrication is recommended.
3. Must clean roller surface for each rolling and use acetone to clean and lubricate
when not in use to avoid corrosion
4. This rolling machine can be used under Ar gas.
|
|
Application Notes
|
This roller is specially designed for battery R&D in terms of its advantages
as affordable, compact and precise.
1 Must use acetone to clean and dry rollers' surfaces after each use to avoid rusting
2 Coated Rust-proof oil if machine were to be unused for a long period of time
3 The minimum thickness of the rolled sheet should depend on the physical property of
the materials. Here are some results from our test:
|
Electrode
|
Size
|
Original
thickness
|
Finished thickness
|
|
LiFePO4
double sides
|
50mm Width x 260mm Length
|
0.205mm
|
0.09mm
|
|
LiMn2O4
double sides
|
50mm Width x 260mm Length
|
0.205mm
|
0.09mm
|
|
Copper foil + graphite
(single side)
|
75mm Width x 240mm Length
|
0.09mm
|
0.04mm
|
Sample testing is available upon customer's request
|
