HCET-B series motor protector for household appliances
Overload motor protectors used in household appliances and professional electrical equipment can prevent the damage caused by household appliances overload, overheating, stall or blocked rotation, neutral wire loss, voltage overload, humidity and other factors, which is of great concern to us. HCET-B small size motor protector has both temperature and current protection. It is compact, insulated and easy to install. HCET-B has a very accurate trip time, which can well protect the household electrical appliances from the harm caused by the high temperature.
Features
Both temperature and current sensitive.
With hand-reset function.
Set overload trip current according to the customer request,up to 35A.
Accurate trip off time can prevent motor from overheating (3〜8s).
Small size, insulation shell make it more flexible and easy to install.
Each type of parts strictly implemented European ROHS environmental standards.
Specifications
|
Item No.
|
HCET-B
|
|
Electrical specifications
|
30 amps/15 volts DC
|
|
15 amps/30 volts DC
|
|
15 amps/250 volts AC
|
|
30 amps/125 volts AC
|
|
Operating temperature range
|
50°C-180°C
|
|
Temperature tolerance
|
± 5°C, ± 8°C
|
|
Trip off current range
|
1-35A
|
|
Trip off time
|
3-8s.(according to customer's requirements)
|
|
Case material
|
Plastic
|
|
Case size(mm)
|
20*8.5*4.4
|
|
Wire
|
Optional and customized
|
Applications
 |
 |
 |
 |

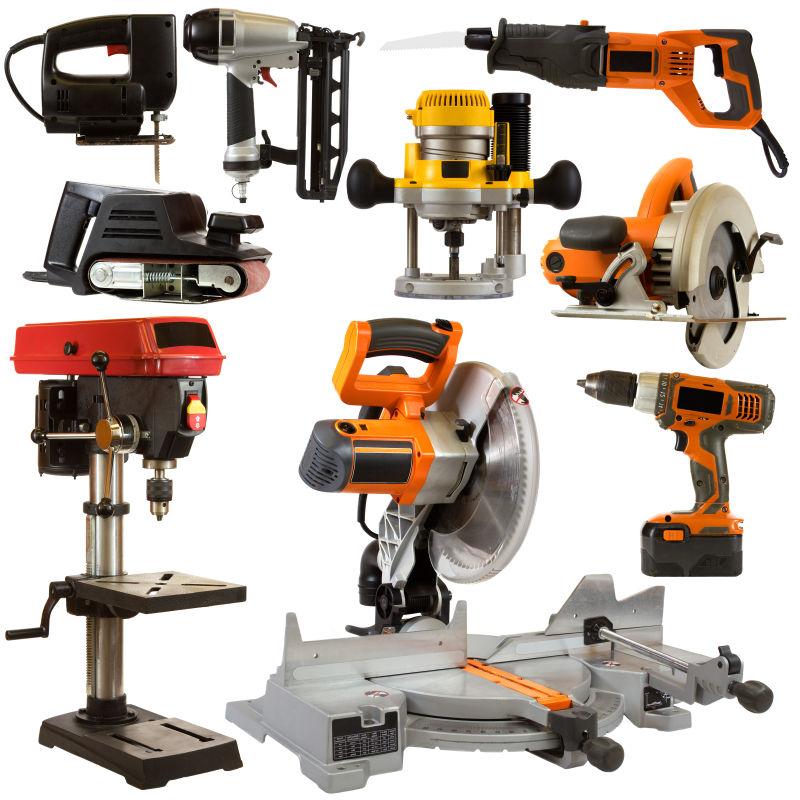

| Electric tools |

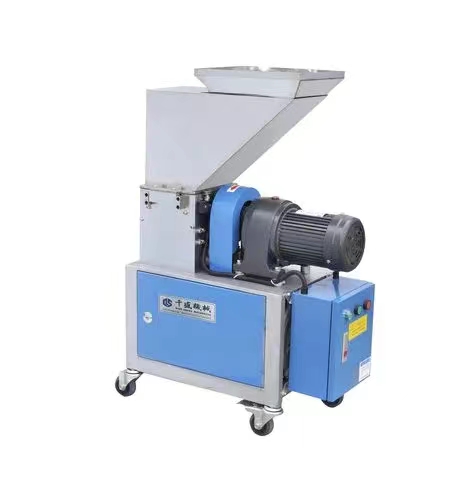

Grinders |

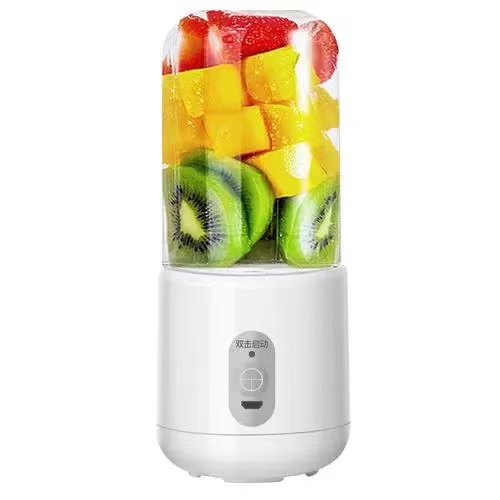

Juicers |

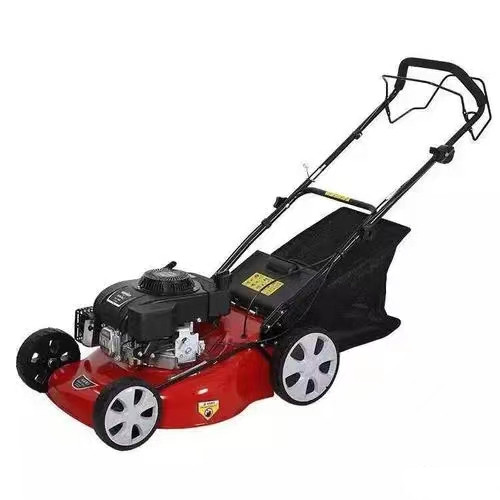

Lawn mowers |
 |
 |
 |
 |

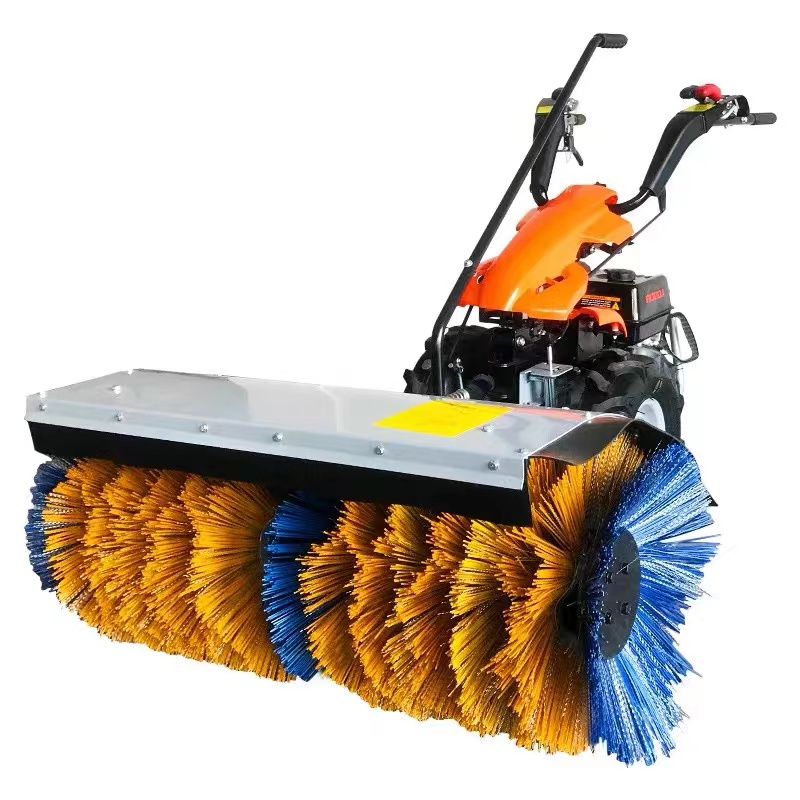

| Snowplows |

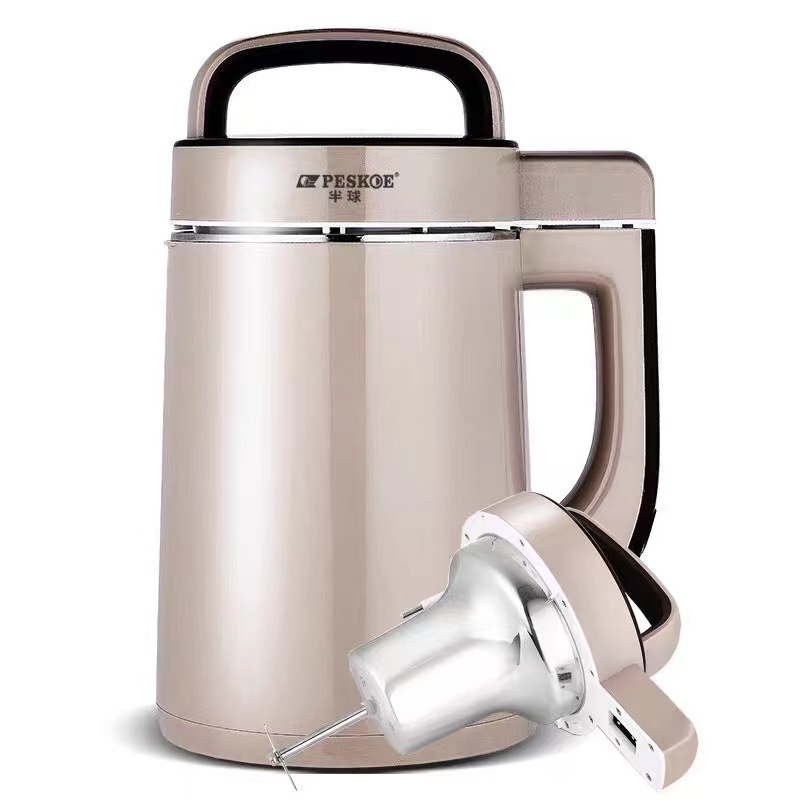

Soybean milk machines |

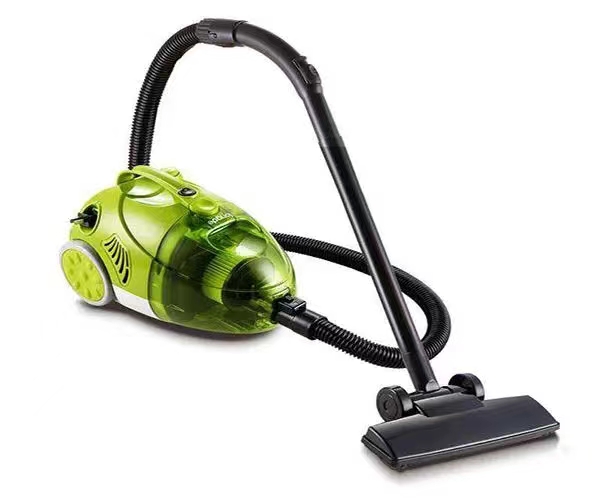

Vacuum cleaners |

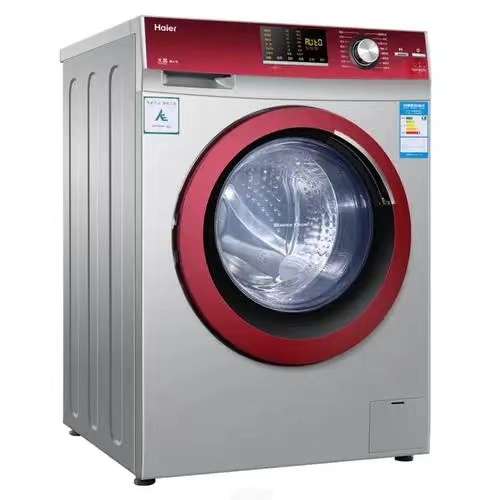

Washing machines |

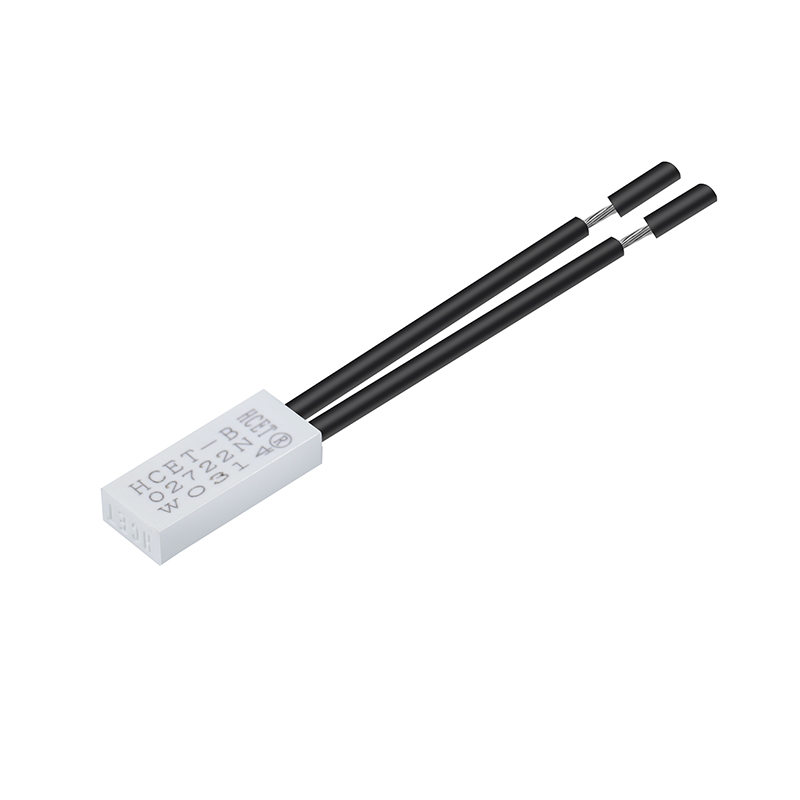

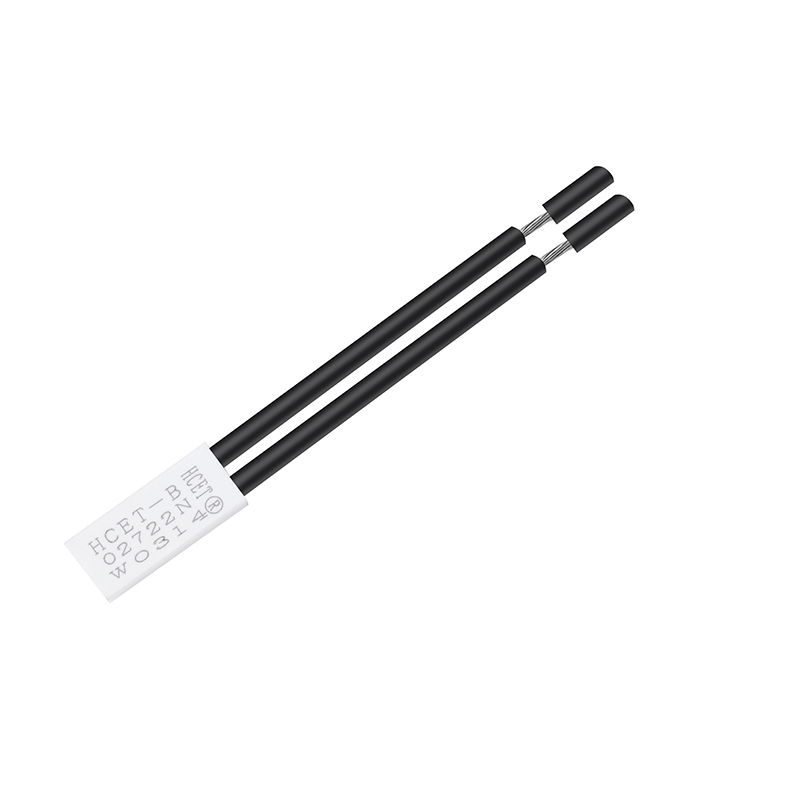

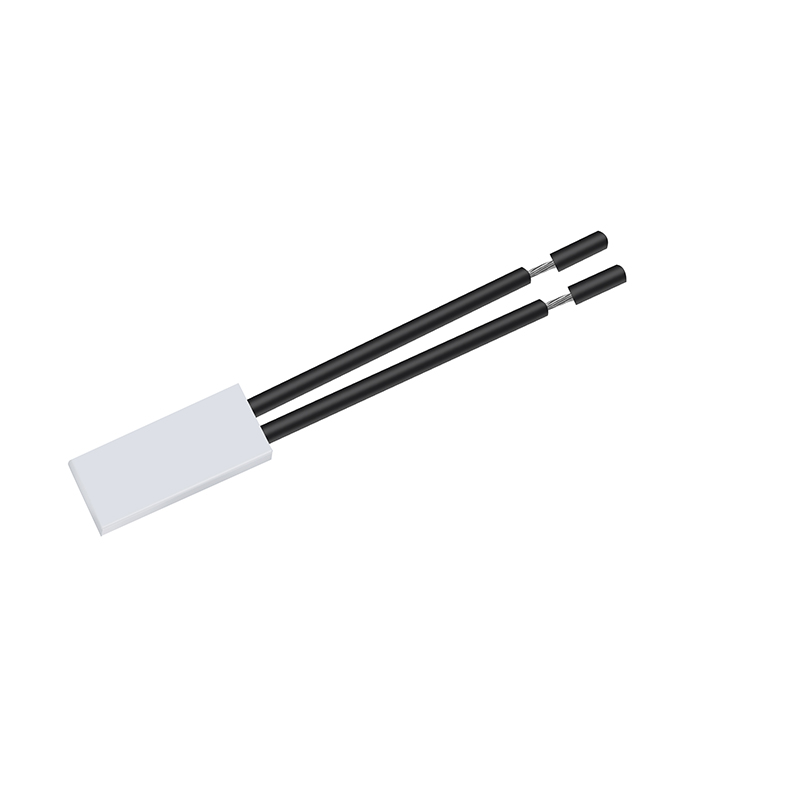

Product display

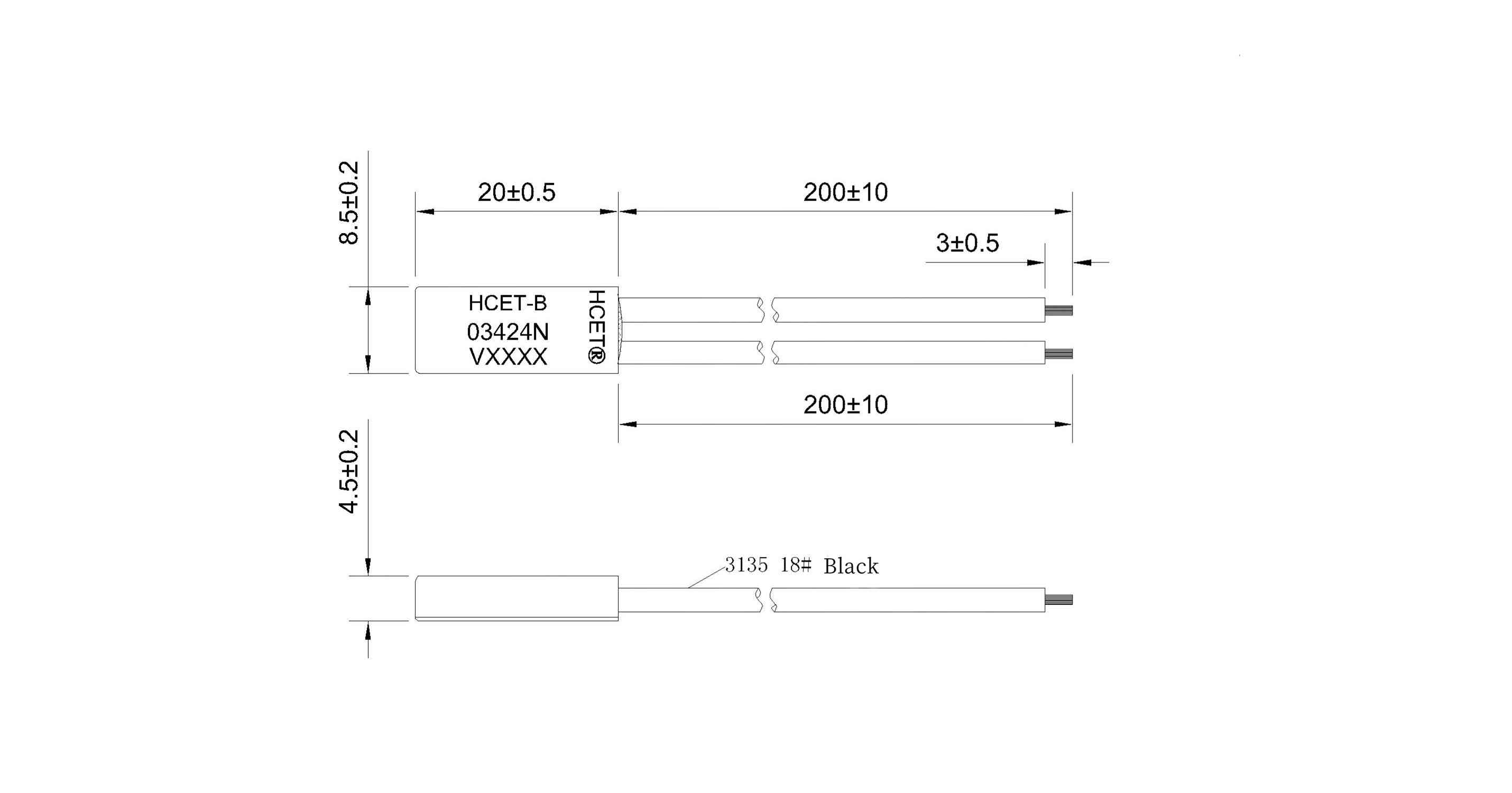

Size details
Packing & Delivery
Packing:
Packed in standard export cartons.
If you have special packing requirements,please feel free to discuss with us,thank you.
Delivery time:
Delivery time for small orders:7-15 days.
Delivery time for special requirements orders:15-30 days.

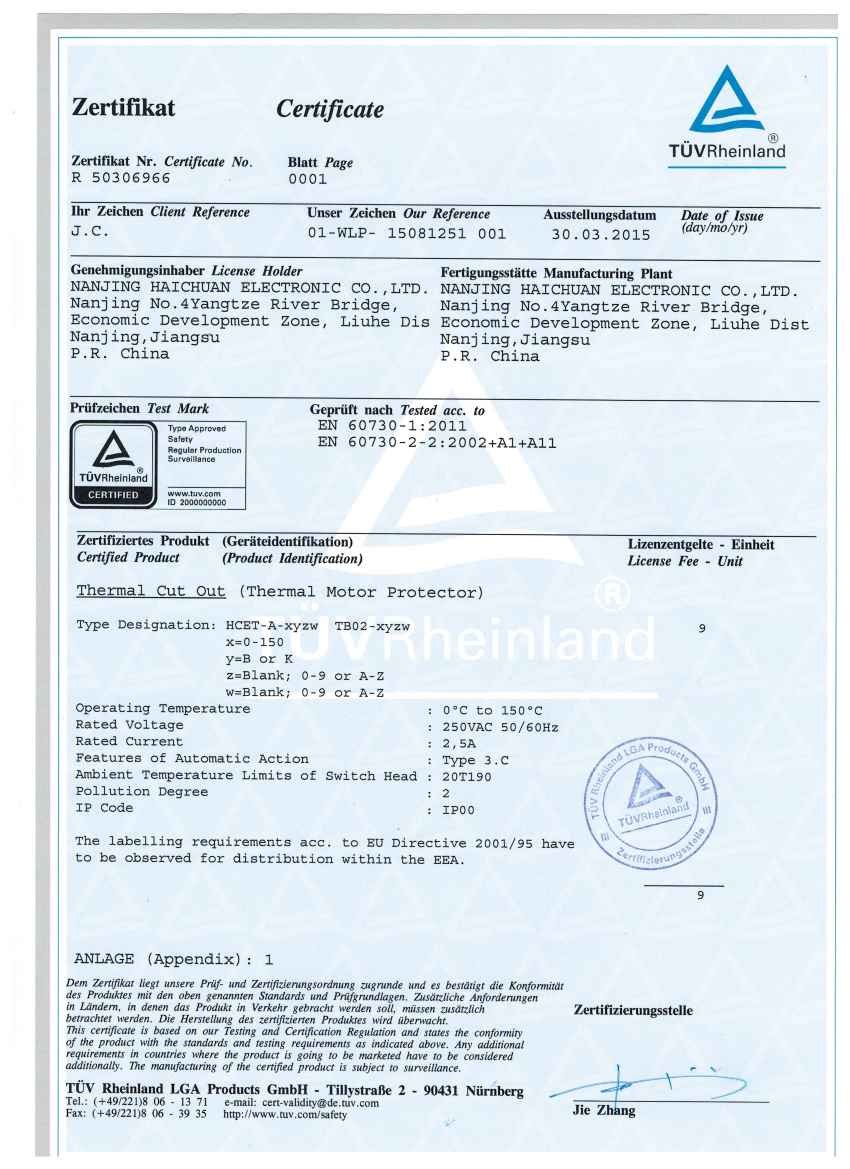

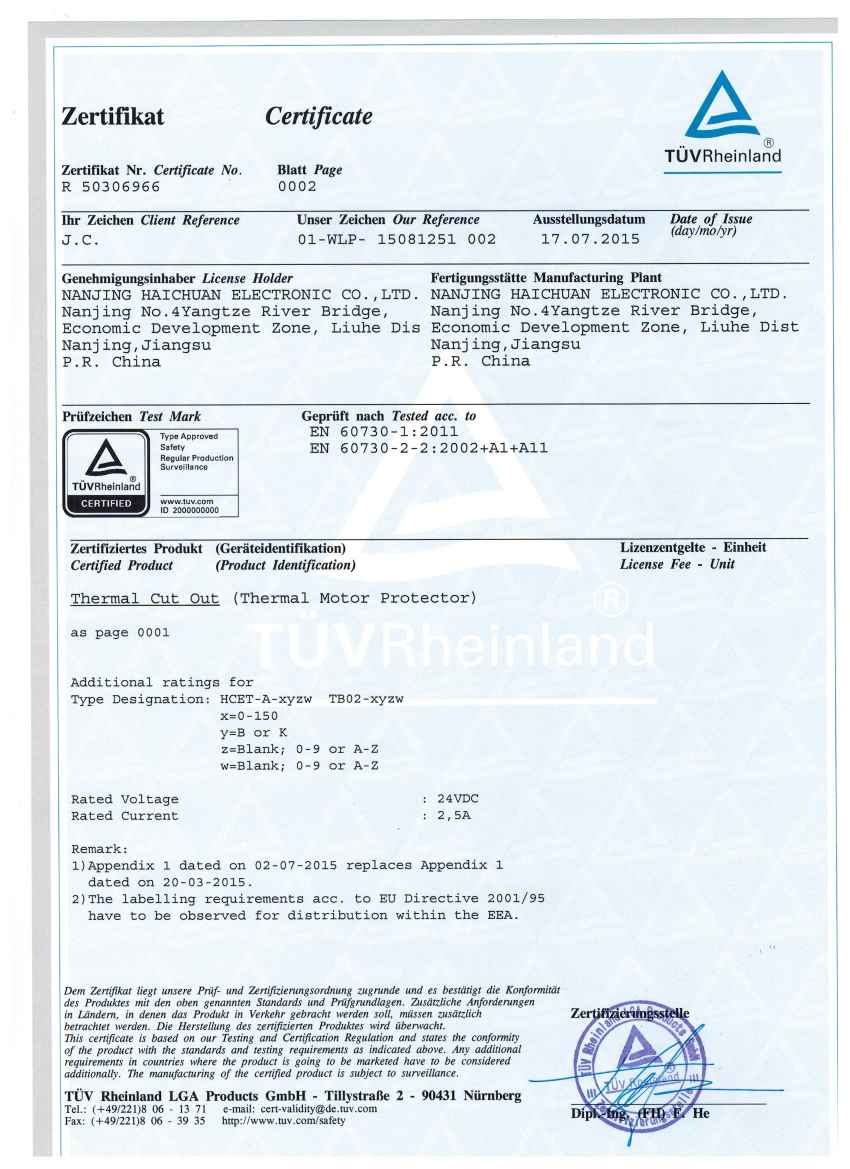

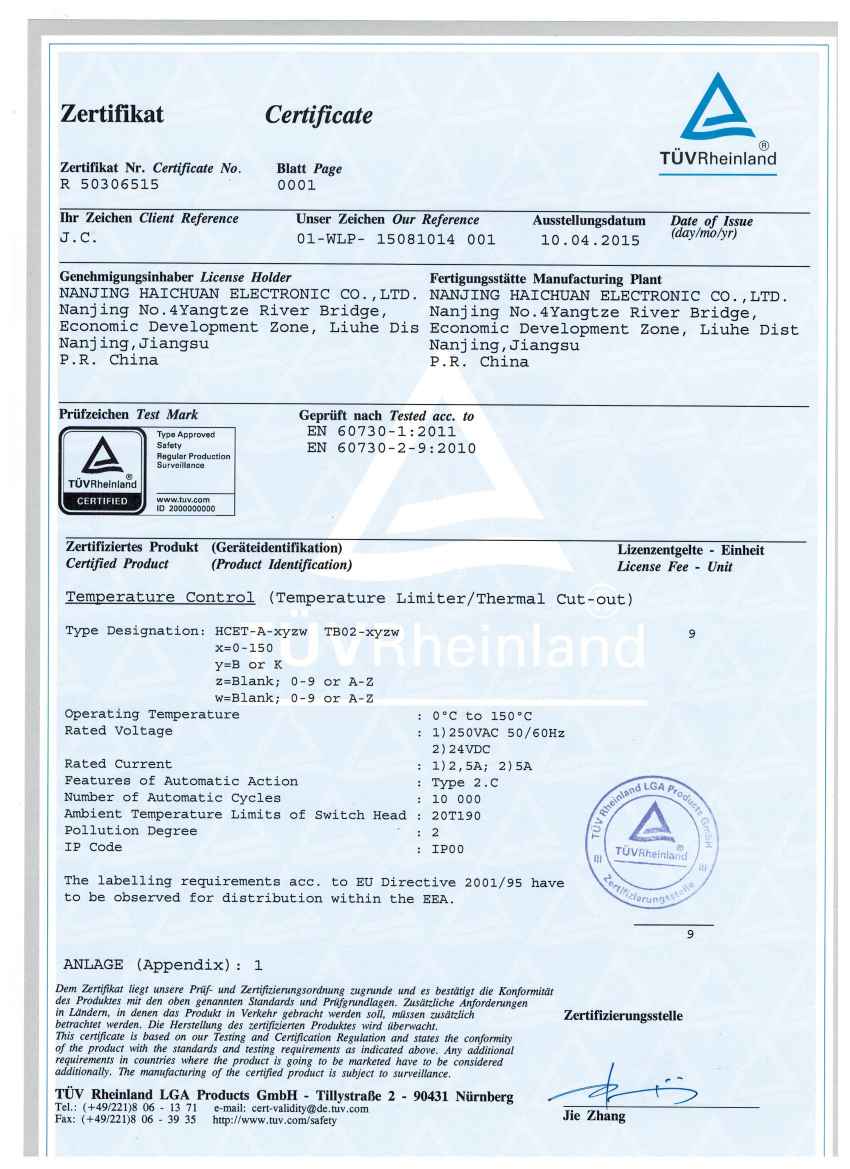

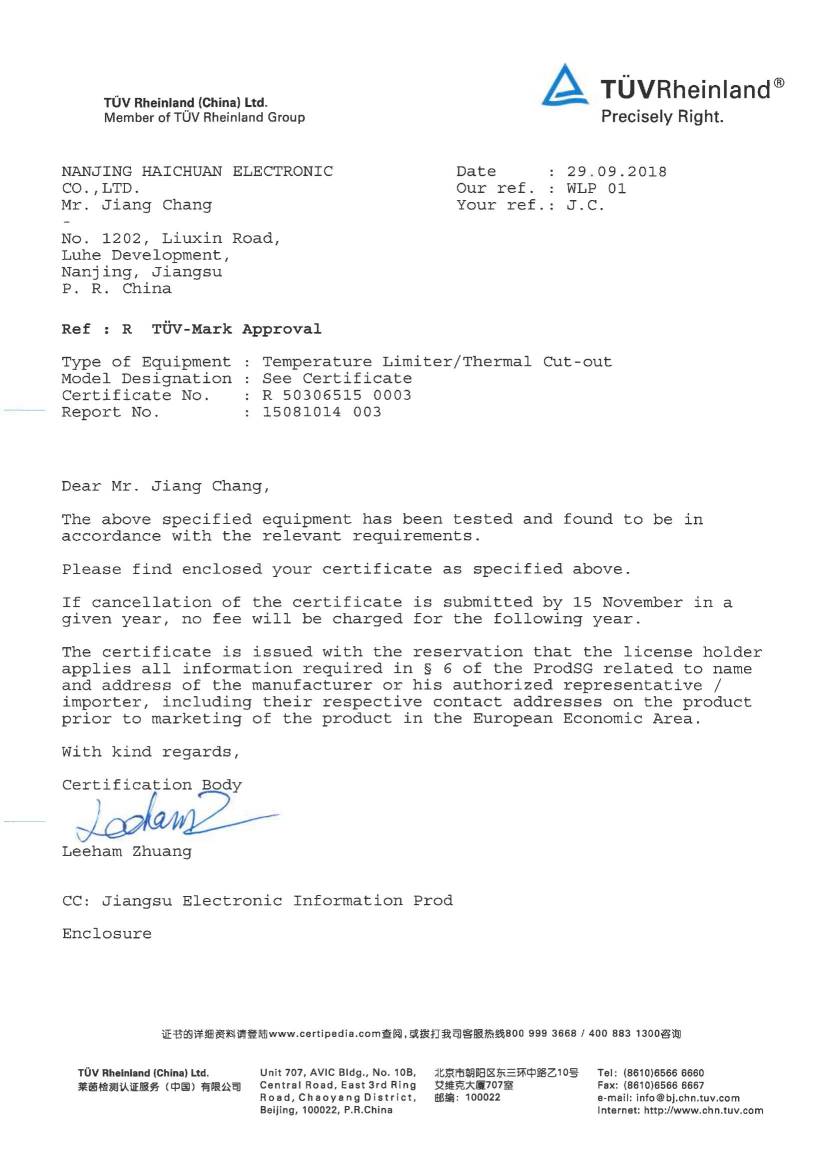

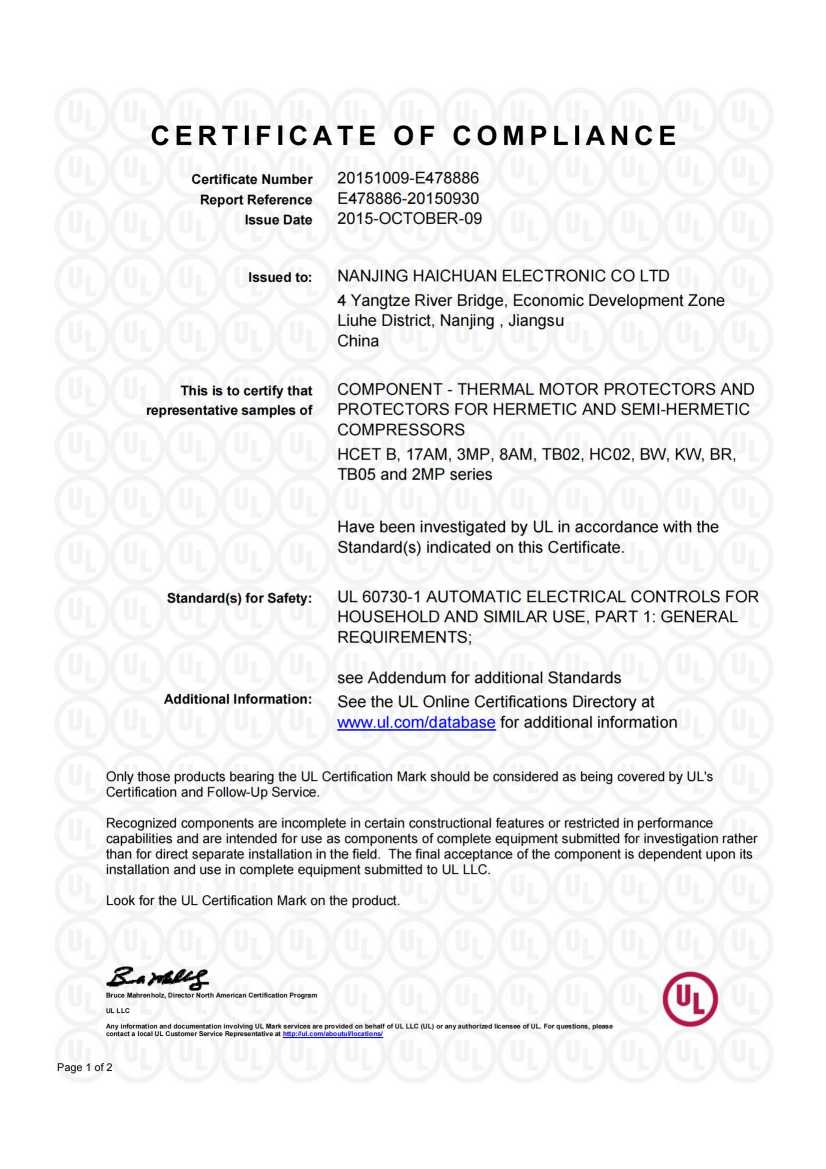

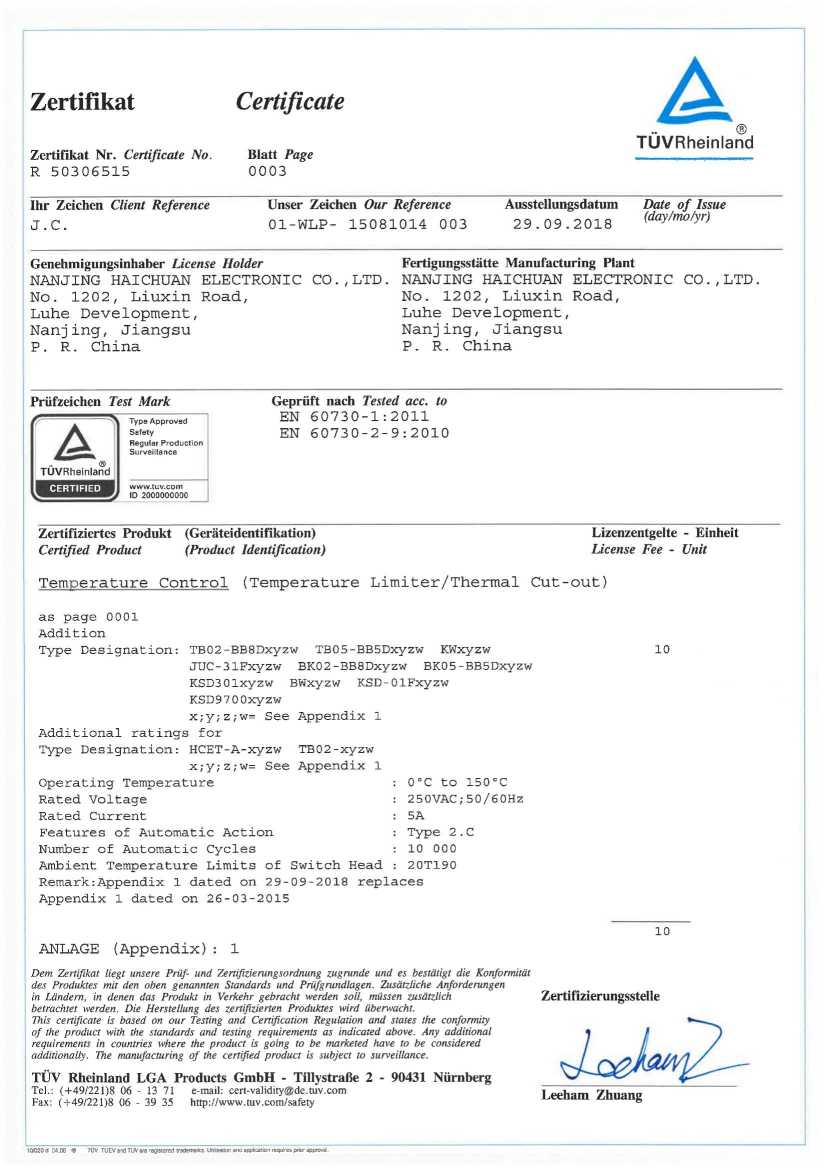

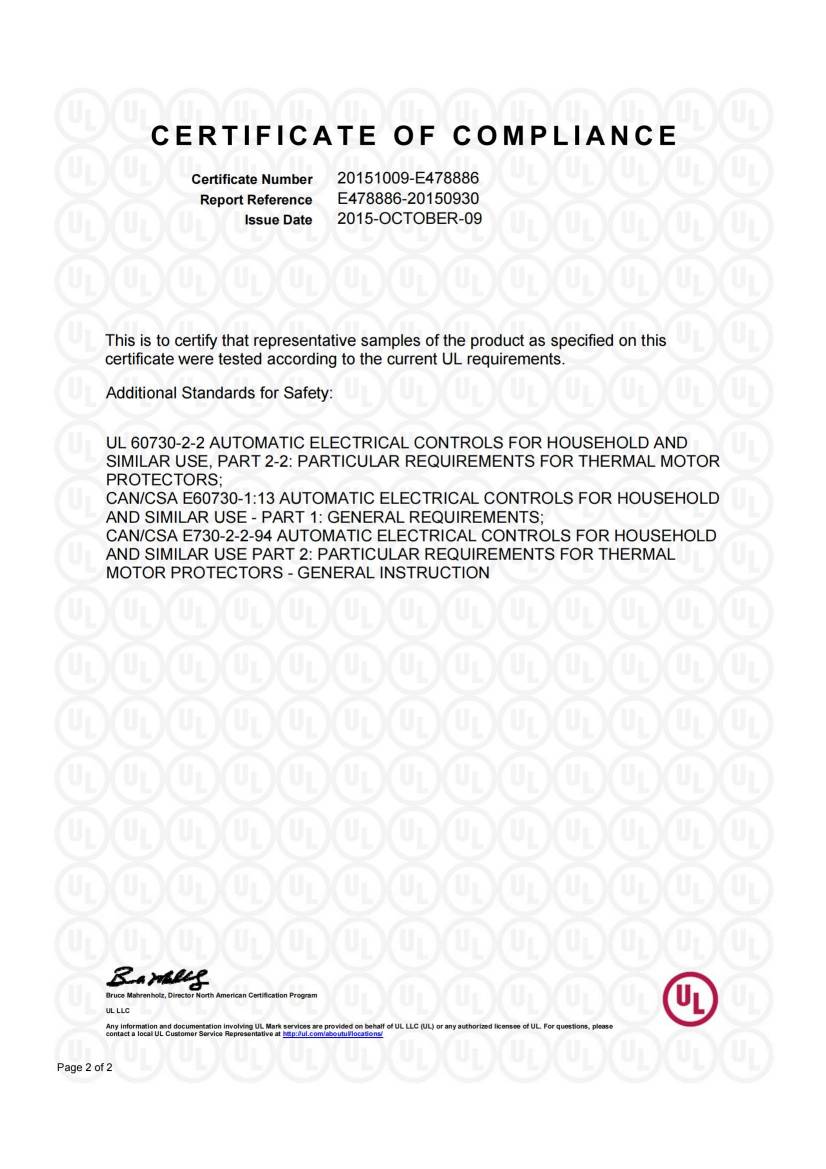

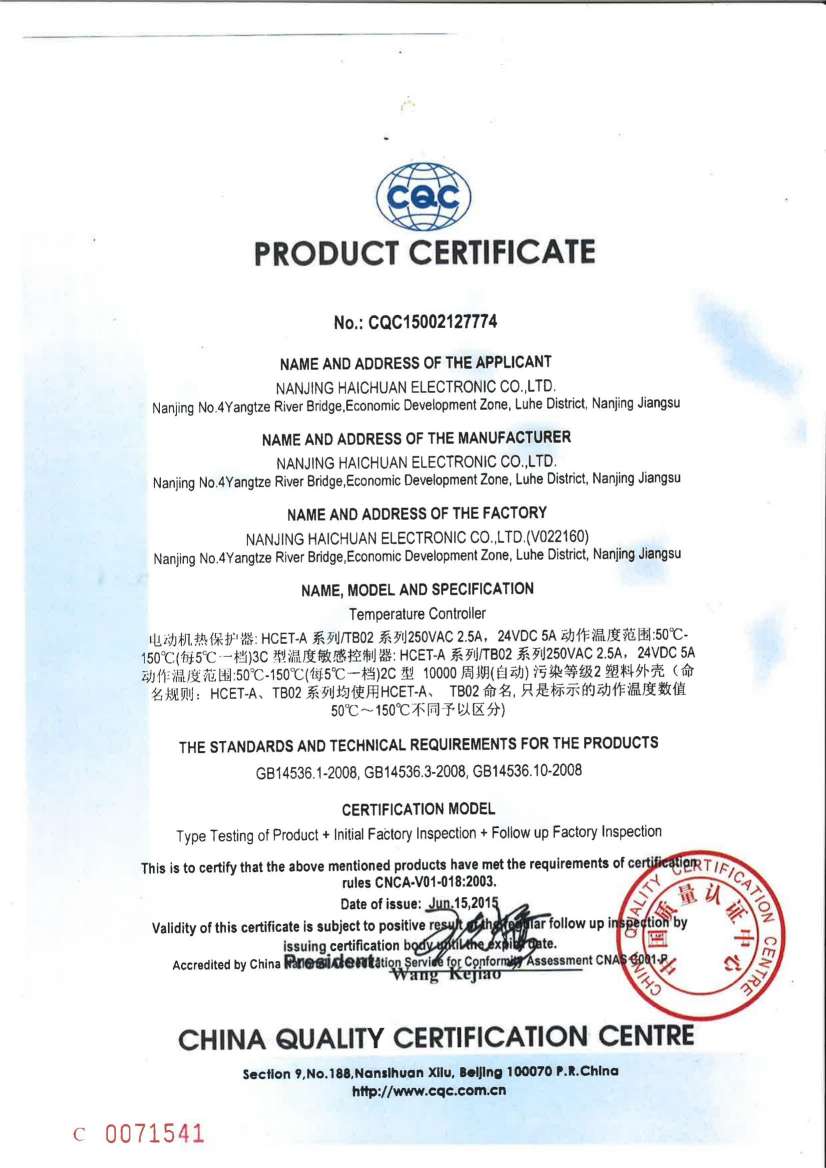

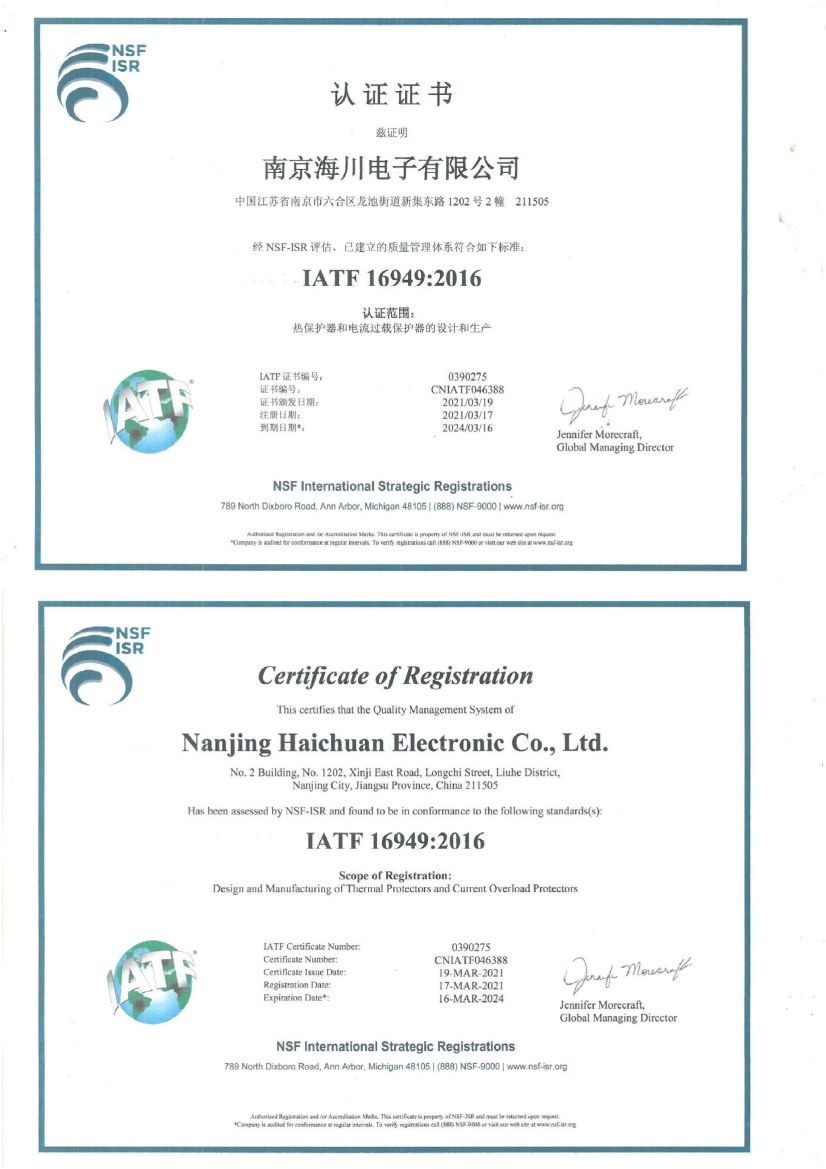

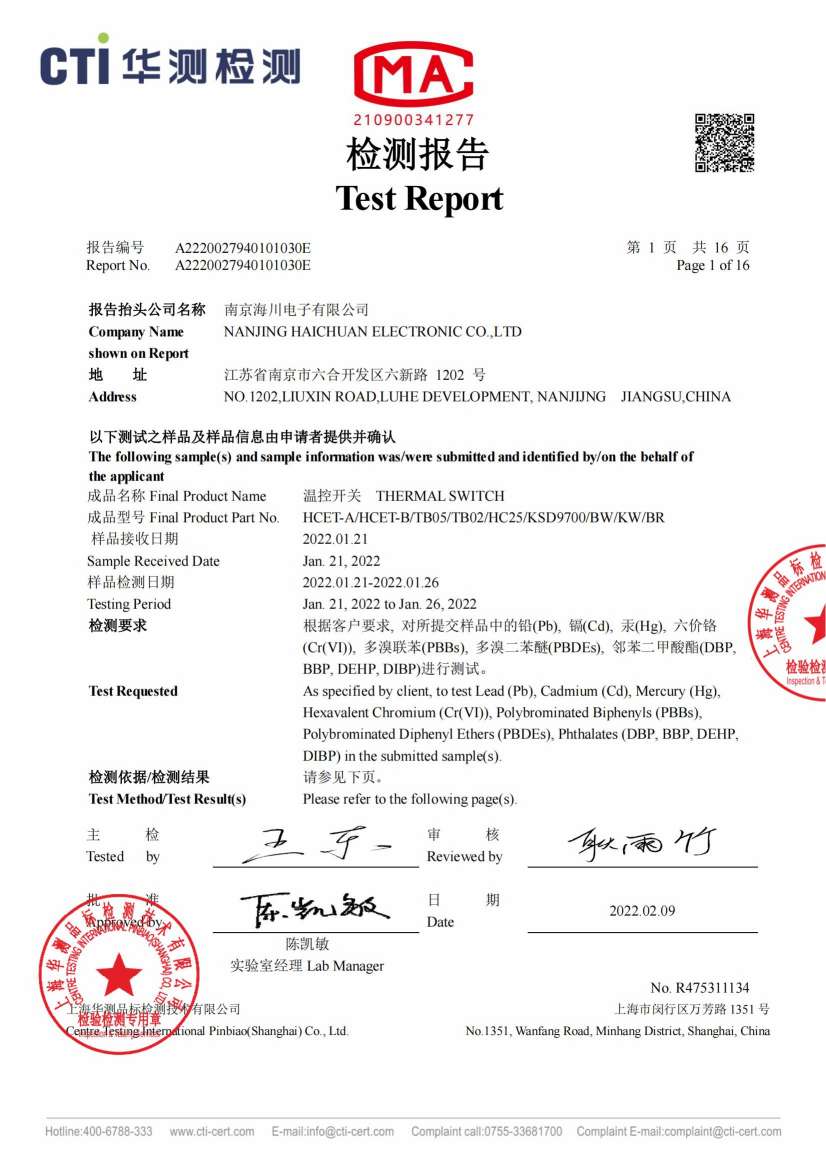

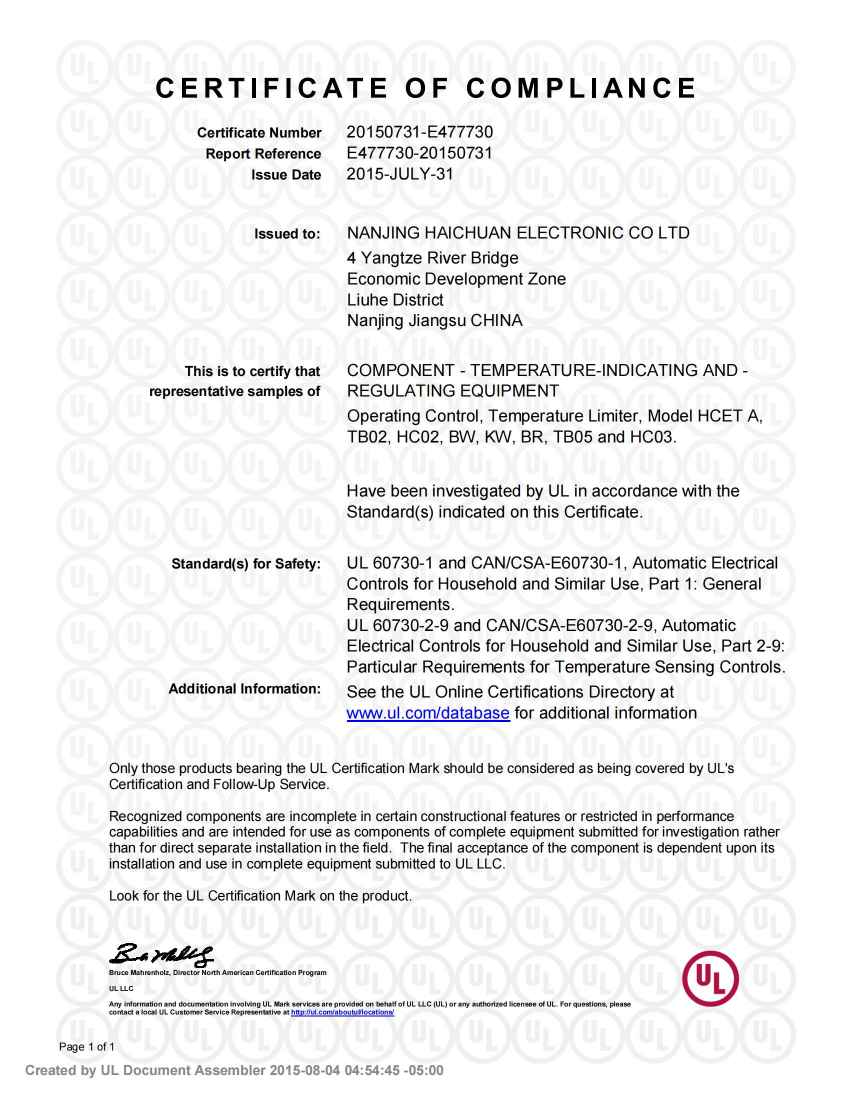

Certificates
Nanjing Haicheng Electronic Technology Co., Ltd. is a national high-tech enterprise which has passed the ISO/TS16949 quality management system certification. It has a number of independent patents, and its products have passed the UL, TUV, CQC, PSE multinational international safety regulations certification.
