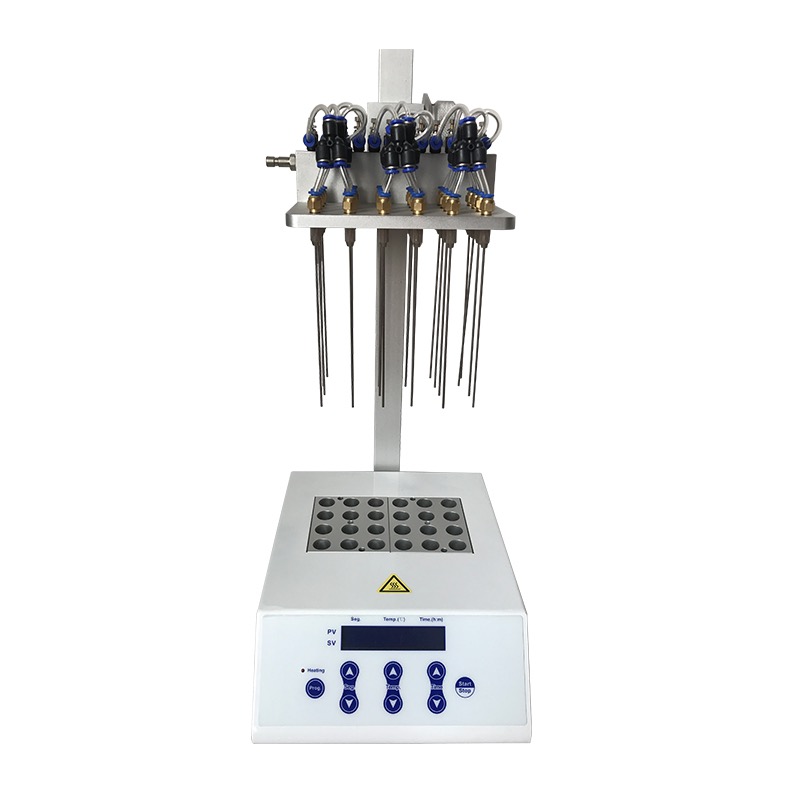

The nitrogen sample concentrator is used for concentrating or preparing samples in batches. It is used in processes such as drug screening, hormone analysis, liquid phase and mass spectrometry in the analysis of sample preparation. It works by blowing nitrogen in the surface of the sample which is being heated to accelerate evaporating and separating the solvent in the samples without oxygen. Instead of the rotary evaporation instrument, the nitrogen sample concentrator can efficiently concentrate dozens of samples simultaneously.The sample surface in the tube can be observed while concentrating.
-
Works by heating with dry bath in the bottom and nitrogen blowing on the surface which accelerates liquid evaporation and sample concentration
-
Adjustable position of gas needle in air chamber plate for different types of tubes. The length of a standard gas needle is 150mm
-
Adjustable height of air chamber plate. Sample surface in the tube can be observed while concentrating, a unique characteristic
-
Independently controlled gas needle. Separate blowing and flow regulating of each needle are available to avoid gas waste
-
The instrument can be put into a ventilation cabinet when the concentration sample is toxic solvents
-
Built-in overheating protection, automatic fault detection and fault alarm features
-
LED displays temperature and time. Operation is simple and convenient. Can be set for continuous operation.
-
Works by heating with dry bath in the bottom and nitrogen blowing on the surface which accelerates liquid evaporation and sample concentration
-
Standard configured air cavity and adjustable bracket.
1.Temp control range: ambient+5°C-150°C 2.Temp setting range: 5°C-150°C
3.Temp stability @ 40-100°C:≤±0.5 °C 4.Temp stability @ 100-150°C: ≤±1 °C
5.Block temp uniformity@100°C:≤±0.5 °C 6.Block temp uniformity@150°C:≤±1 °C
7.Temp display accuracy: 0.1°C 8.Heating speed: ≤30 min (40°C to 150°C)
9.Time range: 1min-99h59min or continous 10.Needle plate max lift stroke: 285mm
11.Gas-in joint outer diameter: ɸ7mm 12.Nitrogen pressure: ≤0.1MPa
13.Nitrogen flow rate: 0-10L/min 14.Needle length: 150mm
15.Sample capacity: 1 standard visible block 16.Voltage: AC110V, 50/60Hz
17.Power: 400W 18.Fuse: 250V,3A/6A, ɸ5x20
19.Dimension (WxDxH): 220x260x 525mm 20.Weight: 5.8kgs
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
