Samsung LCD Touch Screen Floor Standing Kiosk Digital Signage 1920x1080
Description of Touch Screen Digital Signage
1. Available in a wide range of sizes: 32" 43", 49", 55" and 65", each display has built-in speakers and comes with a remote control.
2. Industrial-grade design, heavy-duty built for non-stop loop-playing video and picture 24/7/365
3. High-class metal material Shell, the outline shape & color can be customized.
4. Support Split Screen (play video, pictures, and subtitles at the same time)
5. Remote network control
6. Seamless designed aluminum alloy frame
7. Capable of setting rolling caption on the screen, playing rolling caption in the advertisement program.
Features Highlights
1 . Video formats MP4(AVI:DIVX/XVID) , MPG2(DVD:VOB/MPG2) , MPEG1 (VCD DAT/MPG1);
2 . Audio formats MP3;
3 . Advanced IR touch technology , support single-touch technology;
4 . interactive touch for widely using;
5 . Adopt memory card to update ad files;
6 . SD card or USB port at one player;
Floor Standing Digital Signage
Based on Android 4.4 system, all the android application Apk, software automatic restoration supported.
Real time management and controlling, browser, breakpoint upload and download, multi-mode upload supported.
Updating programs (video, pictures, texts, PPT etc.) through the Internet supported.
Auto power on/off, electronic clock & date supported.

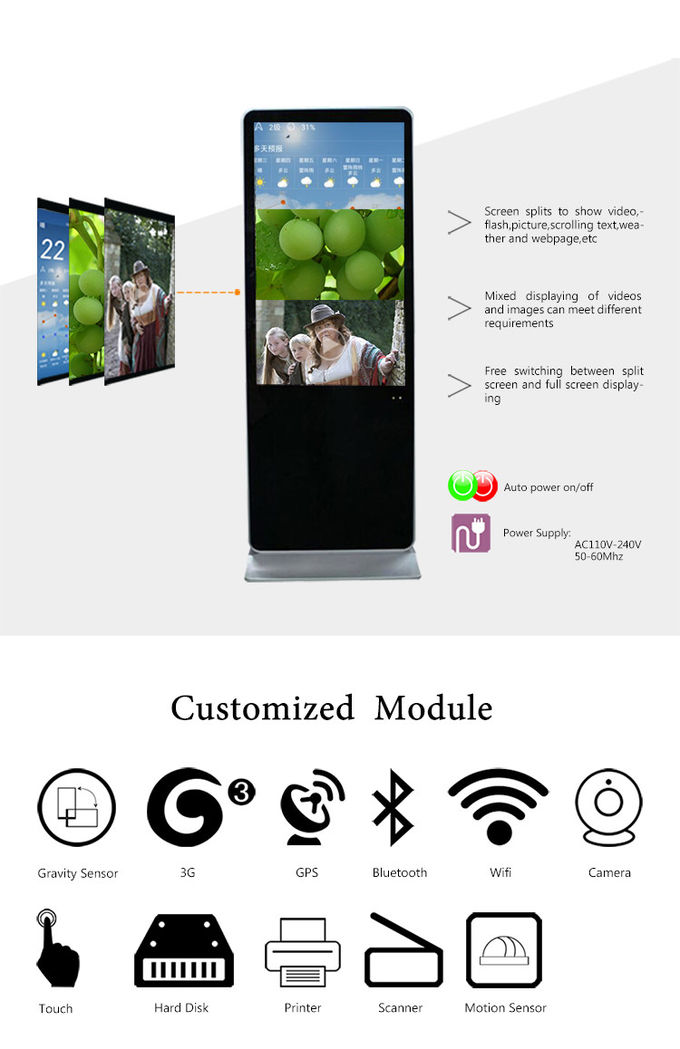

Split screen and fixed template display setting supported.
Setting IP address, working time and working day supported.
1080P full HD programs display supported.
WAN & LAN long-distance setting play/sleep/reboot etc. function supported.
Display contents cryptographic protection supported (selectable)
Cable network, wifi, touch screen, motion senor and inner camera setting supported.(selectable)

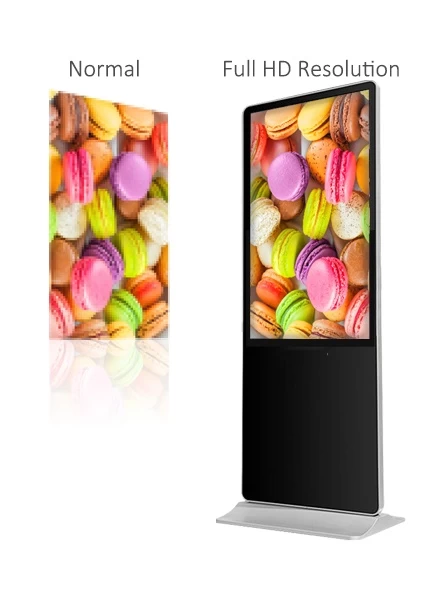

Full HD for superior true-color performance
The LEEMAN DISPLAYLED digital signage displays content in Full HD 1920 x 1080 resolution to deliver superior pixel-by-pixel true-color performance. At this resolution and brightness, high-definition multimedia messaging can be seen crystal-clear for a more realistic viewing experience. Split screen function is supported, that is, many kinds of content type can be displayed on the screen simultaneously, such as video, picture, audio, text message, time & date, news, and so on.
Easy to Use Software
The bundled Ezposter software is the first graphic design software developed with a focus on digital signage. Quick to learn, easy to master and efficient to work with, both non-designers and graphic artists alike will love Ezposter intuitive interface and ease of use. They will also appreciate its comprehensive toolkit and streamlined workflow. For the first time, anyone can create great-looking, high-quality video content with point-and-click, drop-and-drag simplicity for all digital media solutions.
Wide Variety of Applications
The LEEMAN DISPLAY LED totem/kiosk is a digital signage with a sleek, free-standing design. It delivers high-impact messaging in a number of venues including shopping malls, retail stores, fashion stores, spa & saloon, restaurants, bakery and café, gyms, country clubs, clinic & health, sports centers, Real Estate, office complexes, museums, school buildings, auto 4s shops, railway stations and airports etc. It is great for grabbing attention in busy, high-traffic areas.
LEEMAN DISPLAY LED LCD TECH DATASHEET.
|
LCD Specifications
|
|
Model No.
|
LEEMAN-LCD-K49
|
Panel
|
SAMSUNG panel
|
|
Size
|
49inch
|
Body Dimension
|
1849(H)x709(W)x60(D)mm
|
|
Body Material
|
Tempered glass+AL
|
Frame Surface
|
Tempered glass
|
|
Display Color
|
16.7M(8-bit)
|
Response Time
|
6ms
|
|
Brightness
|
300cd/m2
|
Viewing Angle
|
89/89/89/89/(Min)(cR≥10)
|
|
Display Ratio
|
16:9
|
Display Area
|
1073.8x604mm(V*H)
|
|
Backlight Life
|
50000H
|
Backlight Type
|
LED
|
|
Scan Frequency
|
60HZ
|
Resolution
|
1920×1080
|
|
Power
|
180W
|
Contrast
|
1300:1(Typ)
|
|
Voltage
|
110-240V ( AC)
|
Net Weight
|
50KG
|
|
Main Hardware Parameters
|
|
Processor
|
UltraOcta-A83
|
|
RAM
|
2GB
|
|
ROM
|
emmc FLASH 8GB ( max support 32GB)
|
|
Memory Expansion
|
Max support 32GB TF card
|
|
WiFi
|
Built-in USB WIFI or WIFI/BT module (optional), 802.11b/g/n
|
|
File System
|
|
OS
|
Android 4.4.4
|
|
Language
|
Chinese simplified, Chinese traditional, English, French, German, Italian, Japanese, Korean, Russian, Spanish, Polish, Czech, etc.
|
|
Network Function
|
|
Browser
|
UCWeb, Google, etc
|
|
Online Entertainment
|
Support online video, television, movies, music, radio
|
|
Office
|
WORD, EXCEL, POWERPOINT, PDF, TXT
|
|
Games
|
Built-in 3D acceleration, perfect support 3D effect games
|
|
Expansibility
|
Google Play up to more than 20,000 kinds of Apps free download
|
|
Video Play
|
|
Support format
|
Support AVI (H.264, DIVX, DIVX, XVID), rm, rmvb, MKV (H.264, DIVX, DIVX, XVID), WMV, MOV, MP4 (.H.264, MPEG, DIVX, XVID), DAT (VCD), VOB (DVD), PMP, MPEG, MPG, FLV (H.263, H.264), ASF, TS, TP, 3GP, MPG, etc more than 30 formats
|
|
Decoding resolution
|
Max resolution 3840*2160
|
|
Video output
|
Max support HDMI 1080P full HD output
|
|
Audio Play
|
|
Support format
|
Support MP3, WMA, MP2, OGG, AAC, M4A, MA4, FLAC, APE, 3GP, WAV, Support song list function
|
|
Recording function
|
Support MP3, WMA format recording
|
|
Additional Function
|
|
Picture browsing
|
Support JPG, BMP, PNG, GIF etc a variety of image formats and support image rotate/slide show, up to 4096*4096 resolution
|
|
Text reading
|
Support TXT, PDF, HTML, HTM, CHM, UMD
|
|
Basic Interfaces
|
|
USB2.0
|
2xUSB HOST (1xUSB pin, 1 standard USB)
|
|
UART
|
6 (2xRS232, 3xTTL, 1xTTL+ fluid control)
|
|
LVDS output
|
1, can directly drive 50/60Hz LCD screen
|
|
LCD Backlight port
|
1, standard 6pin socket ( power input can choose 12V or 5V)
|
|
Touch panel port
|
1 built-in 6P socket, can choose to connect small size capacitive touch panel
|
|
HDMI output
|
1x HDMI support 1080P output
|
|
AV output
|
Support 1xCVBS ouput and 2x L/R audio output)
|
|
TF card
|
1x TF
|
|
Speaker output
|
L/R output (max support dual channel 4R/3W speaker)
|
|
Headphone
|
Headphone output can be connected via extension cable
|
|
Infrared body induction
|
1 (Depends on the structure, it can be soldered directly to the motherboard or can be connected out by an extension cable)
|
|
RTC
|
1 clock socket, (RC2032 or connect larger capacity button battery through the socket)
|
|
Power supply
|
1 external socket (inner core 2.5MM) and 1 built-in 6P_2.54MMsocket DC 12V input
|
|
LAN
|
1x RJ45
|
|
LED indicator and IR remote control receiver
|
1 built-in double color LED indicator(power on and system operating indicator) and IR remote control receiver(Depends on the structure, it can be soldered directly to PCB board or can be connected out by an extension cable)
|
|
Button
|
1 built-in system upgraded button and 1 5pin socket can be connected through extension cable
|
|
I/O socket
|
1 built-in 5P socket (support 4xGPIO extension)
|
|
Other Functions
|
|
Touch panel
|
Support capacitive touch, IR touch (DKtouch, Fitouch, CVT etc.)
|
|
Other input device
|
Support USB keyboard, mouse, IR remote control
|
|
Voice function
|
Supported
|
|
Video function
|
Support USB camera
|
|
Special function
|
Watchdog, timer switch
|
|
3G module
|
Supported (optional)
|
|
Power
|
|
Power supply
|
DC 12V
|
|
Power consumption
|
≦2.5W, not connect to speaker/lcd screen/backlight inverter/USB devices
|
|
Working Environment
|
|
Working temperature
|
0℃～40℃
|
|
Working humidity
|
10％～90％, no condensation
|
|
Storage temperature
|
-40℃～70℃, recommended 5℃～35℃
|
|
Touch Function
|
|
Touch screen
|
Touch Points
|
4 points IR touch
|
|
Resolution
|
4096x4096
|
|
Response Speed
|
>10ms
|
|
Scan Speed
|
60/S
|
|
Input Method
|
Finger touch or other opaque medium
|
|
Luminousness
|
>98%
|
|
Min Touch Diameter
|
5mm
|
|
Persistence
|
More than 60 million times single-touch
|
|
Surface Hardness
|
Mohs level 7
|
