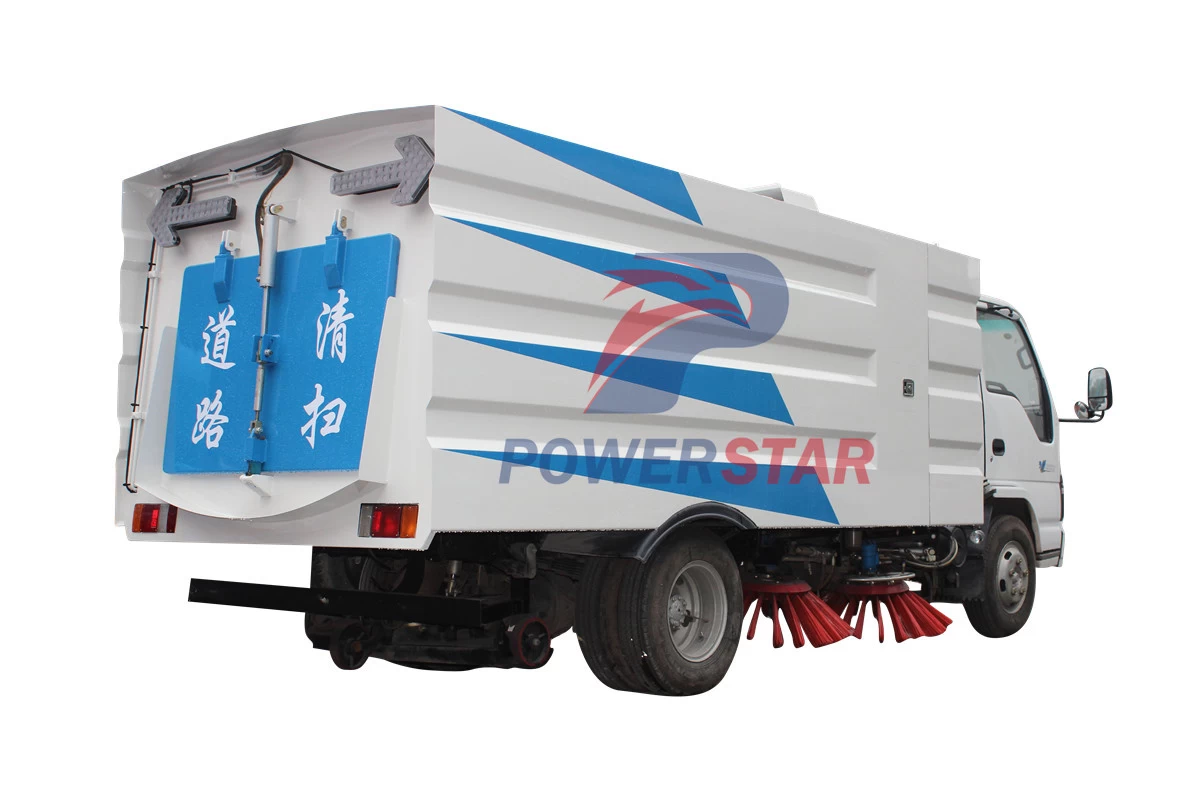

Multi functional road sweeper Isuzu 4m3
Applications:
Industrial road sweeper Isuzu (also called dustbin road sweeper truck, broom road sweeper, high vacuum road sweeper, vacuum street sweeper, brush road sweeper, nation road sweeper) is a new road cleaning machine developed through refitting the Isuzu truck chassis which is excellent in performance and conforms to the European emission standard.
This Isuzu street sweeping vehicle has a proper and practical structure with four sweeping brushes in the middle while the suction port at the back part of the vehicle chassis. The sweeping brushes can avoid obstacles automatically. With low-noise suction system and famous-brand hydraulic components, our street sweeping vehicle are more stable and reliable in performance.
The Sweeper truck also adopts the way of vacuum suction and sweeping combination, wet dust removal, electro-hydraulic control and hydraulic dumping unloading to clean the road.
Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Dustbin tank body capacity from 3 to 10 Cublic Meter.
---- Easy operation and easy maintenance.
---- Virious types of refuse container lifter are available.
Specifications:
|
Hydraulic road sweeper truck Isuzu (3 cbm)
|
|
General
|
Vehicle Brand
|
POWERSTAR
|
|
Chassis Brand
|
ISUZU NKR
|
|
Overall Dimension
|
5250 * 2200 * 2530 mm
|
|
GVW / Kerb Weight
|
7,300kg / 3,960kg
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
ISUZU
|
|
Power
|
120 HP (88 KW)
|
|
Displacement
|
2999ml
|
|
Emission Standard
|
Euro IV or V
|
|
Chassis
|
Drive Type
|
4X2, (left hand drive)
|
|
Transmission
|
ISUZU MSB 5 speed levers with 1
reverse
|
|
Wheelbase/No. of axle
|
3365 mm / 2
|
|
Tire Specification
|
7.00-16
|
|
Tire Number
|
6 tires and 1 spare tire
|
|
Max Speed
|
95 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Dustbin tank
|
3 cbm
|
|
Water tank
|
1,500 liters
|
|
Sweeping width
|
3-20 km/h
|
|
Working speed
|
20~25 s
|
|
Max sweeping
|
65000 m2/h
|
|
Control system
|
Electrically Hydraulic control
|
|
Control panel
|
English or Your language
|
|
All standard accessories: Auxiliary engine, dust control system, fire extinguisher, basic tool kit, English manual……
|
|
Optional
|
** Back alarm and Camera can be equipped.
** Water jetting system can be choose.
** Paint color or LOGO.
|
---- SGS, BV, CONTECNA, CE Qualified.
---- Local engineer training support.
---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.
| Operation Manual |
Chassis parts |
Maintenance Tools |
---- 15 years experiences Design & Export.
---- 100% customer made trucks.
---- Fast delivery assurance.
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Quickly ship to worldwide.
---- Color and LOGO can be wished.
