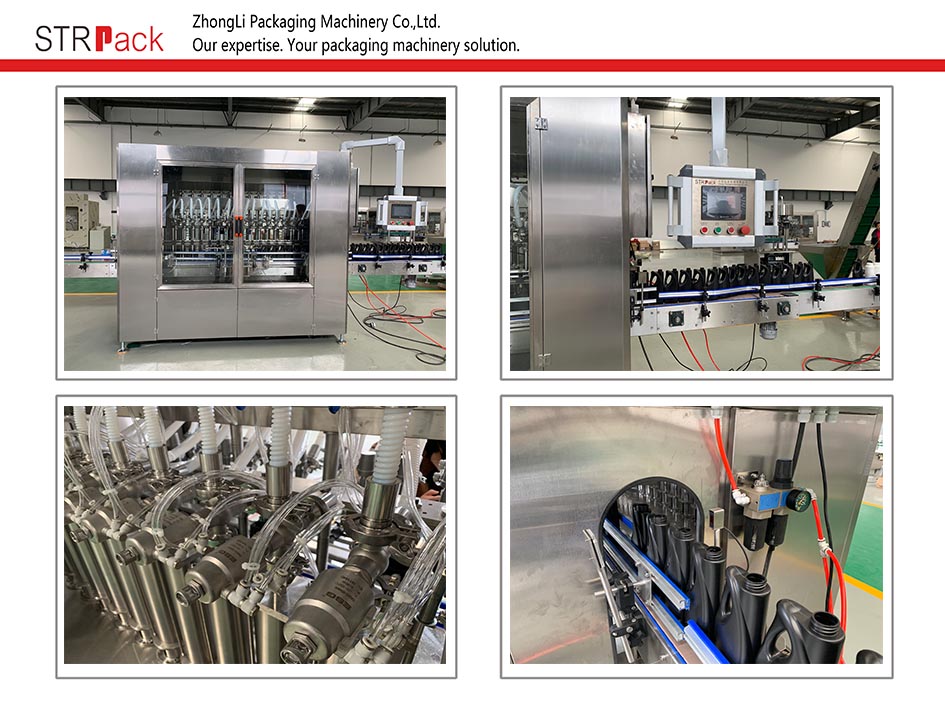

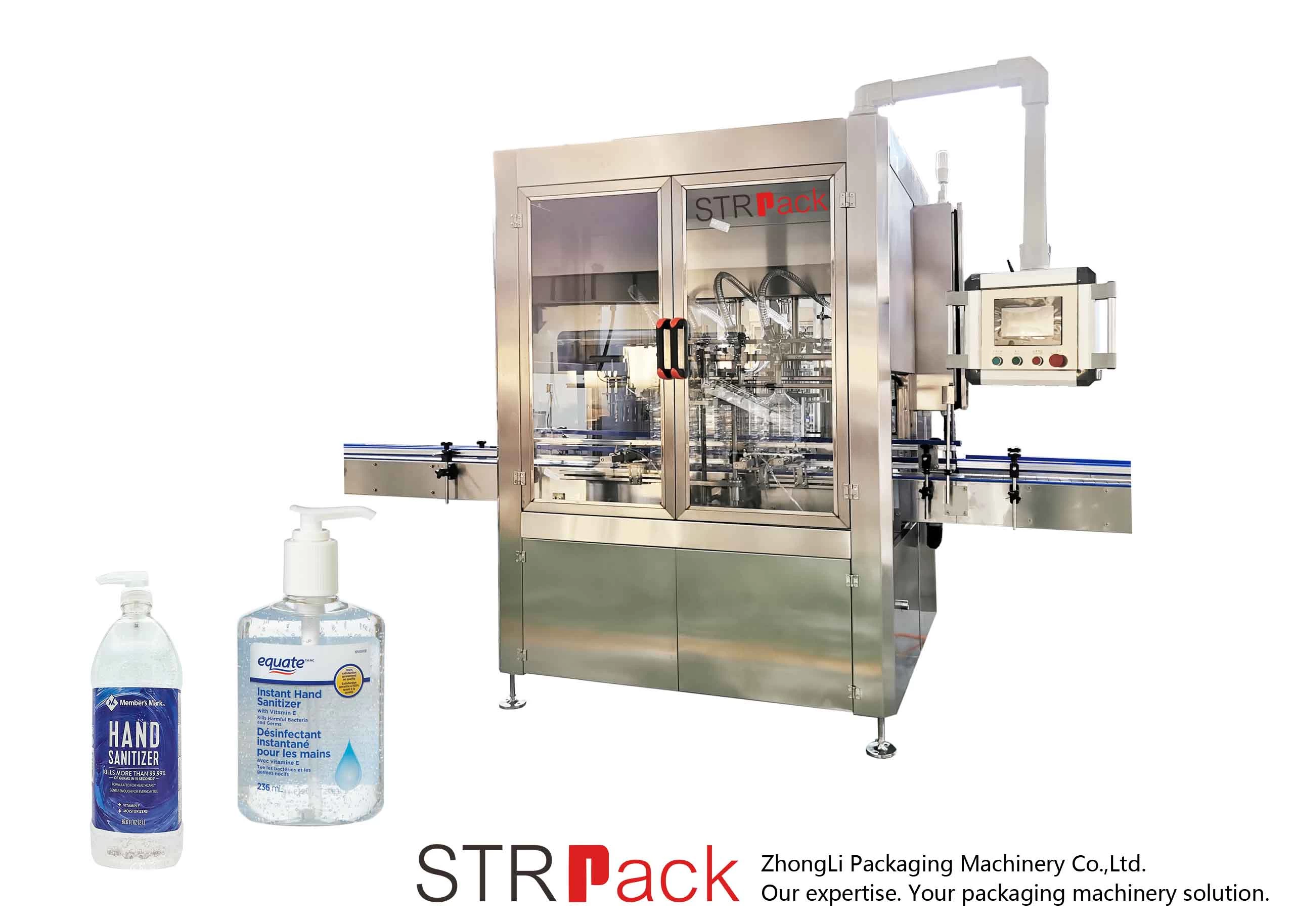

Sanitiser Gel Servo-motor Piston Filler
Brief Introduction:
STRPACK Automatic Linear Sanitiser Gel Servo-motor Piston Filler are suitable for a wide variety of products from water-thin to thick but flowable products. The machine is
made by in-line structure , filling head quantity can be custom-made according
to request like 6/8/10/12/16 heads.
The filling system is driven by servo motor which assure high filling accuracy.
It is controlled by the PLC, human interface and easy operation.
It is widely used in the cosmetic, foodstuff, specialty chemical,
pharmaceutical, and personal care industries.
Features:
Made by high quality 304 Stainless steel,
it is durable
No bottle no fill.
Can control different filling speed on one dose.
Filling system is controlled by servo motor, it assure high filling accuracy.
Diving filling head is available according to different product(For option).
Air blow off filling nozzle is available for sticky product to avoid tail
stringing on nozzle.
Product receive tray is available in case any leakage from filling nozzle(For
option).
Can save up to 20 groups parameter on the PLC, convenient for operation.
No tooling needed to change over different size bottles.
Quick-install connecting parts , it is easy to disassemble and clear machine.
Main Parameter:
|
Model
|
Unit
|
SFM
|
|
Nozzle Number
|
PCS
|
4
|
6
|
8
|
12
|
|
Filling volume
|
Ml
|
20-5000
|
|
Production capacity
|
Bottle/h
|
720-2000
|
1200-3000
|
1800-4000
|
2000-5000
|
|
Quantitative error
|
%
|
20-1000ml:≤±2% ,
1000-5000ml:≤±1%
|
|
Source voltage
|
V
|
Three-phase four-wire
system AC220V 380V ±10%
|
|
Consumed power
|
KW
|
2
|
2.5
|
3
|
5
|
|
Gas supply pressure
|
MPA
|
0.4-0.6
|
|
Air consumption
|
M3/min
|
0.8
|
1
|
1.2
|
1.2
|
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 2 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD100.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
