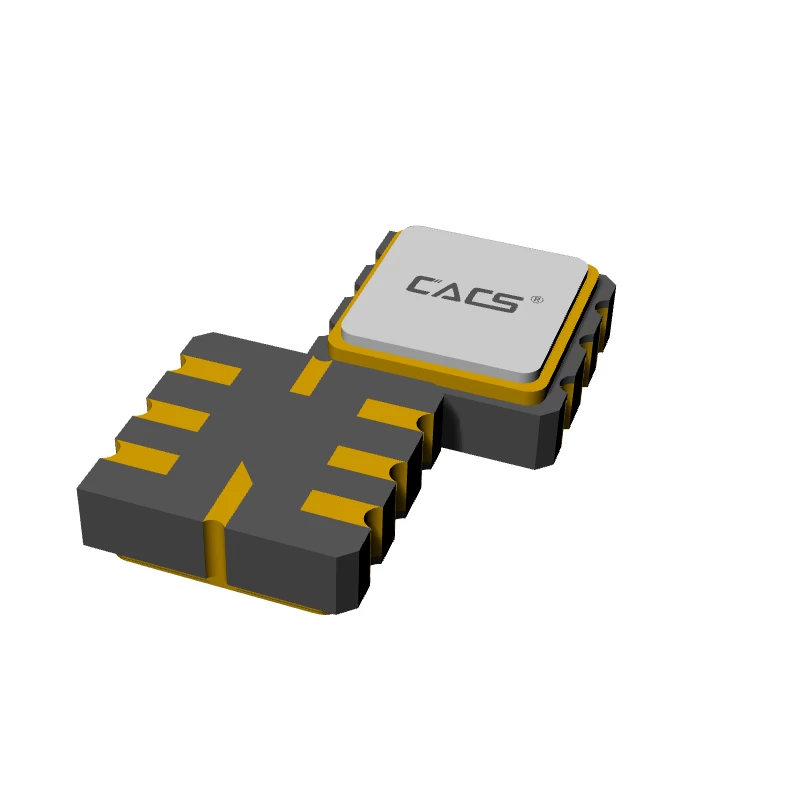

Saw Resonator SMD ACSR S3R

Operation Temperature Range

-45℃ to +85℃

Storage Temperature Range

-45℃ to +85℃

DC. Voltage

10 V

Maximum Input Power

10dBm

Unit

Minimum

Typical

Maximum

Center Frequency

MHz

-

320.65

-

Insertion Loss (320±4 MHz)

dB

1.8

3

0

Amplitude Ripple (320±4 MHz)

dB

0.5

1.5

VSWR (320±4 MHz)

1.5

2.0

Relative Attenuation

fC±15.0MHz

fC±35.0MHz

dB

35

50

40

55

-

Input/Output Impedance

Ohms

50
