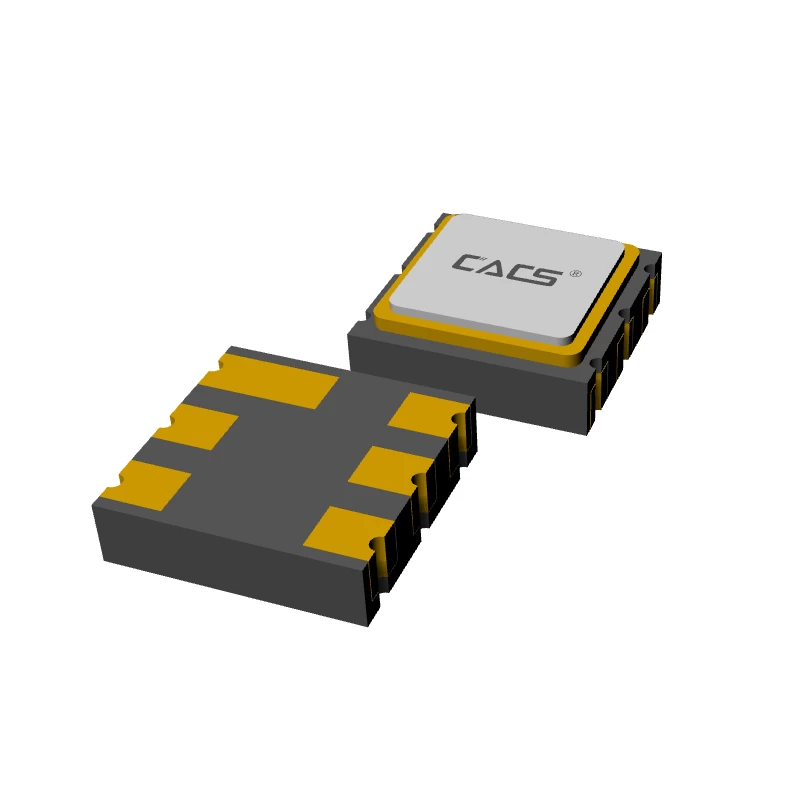

Saw Resonator SMD ACSR S6R

DCVoltageVDC

10V

ACVoltageVpp

10V50Hz/60Hz

Operationtemperature

-40℃to+85℃

Storagetemperature

-45℃to+85℃

SourcePower

0dBm

Item

Unites

Minimum

Typical

Maximum

Center Frequency

MHz

433.87

433.92

433.97

Insertion Loss

dB

1.4

1.9

Quality Factor

Unload Q

8300

12000

50Ω Loaded Q

850

1500

Temperature Stability

Turnover Temperature

℃

10

25

40

Freq.temp.Coefficient

ppm/℃

0.032

Frequency Aging

ppm/yr

<±10

DC.Insulation Resistance

MΩ

1.0

RF

Equivalent RLC Model

Motional Resistance R1

Ω

18

26

Motional Inductance L1

μH

79.82

Motional Capacitance C1

fF

1.685

Transducer Static Capacitance C0

pF

2.3
