SC series Rack and Pinion Passenger Hoist for building construction
Passenger Hoist

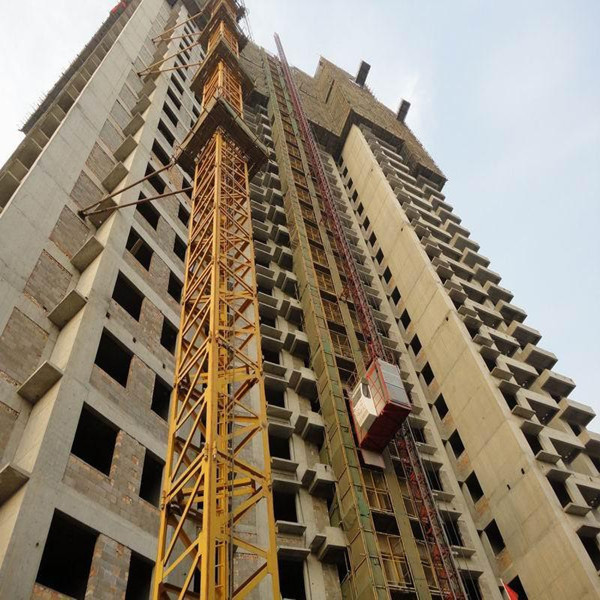

Passenger hoists are widely used at the sites of industrial and civil construction, bridge construction, underground construction, large chimney construction, ship industry, which is convenient for transport of both material and human.

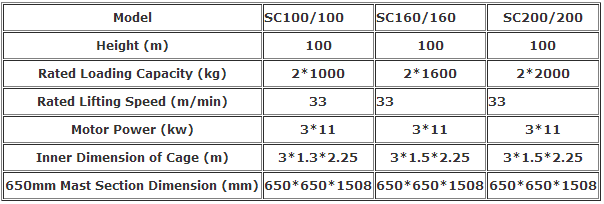

1. Lifting speed:33m/min
2. Max Lifting height: 150m
3. Start-up current: 270A
4. Working current: 70 A
5. Motor power:3*11kw
6. The recommended cage dimension (L*W*H) ( m) of construction hoist: 2.0*1.0*2.5, 2.5*1.3*2.5, 3.0*1.3*2.5, 3.2*1.5*2.5, 3.7*1.5*2.5, 4.2*1.5*2.5. and The cage Size also can be made according to your reuquirement.
7. Perfect safety device for the hoist, Mainly including: Anti-falling safety device, upper and lower travel limit, upper and lower finial limit, cage door electrical and mechanical interlock device, anti-roof collapse device, anti-doffing safety hook, buffer spring, overloading protective device, etc.
*Standard cage dimension is 3.2x1.5x2.5,other available cage dimension(LxWxH)(m)
2.5x1.3x2.5; 3x1.3x2.5; 3.6x1.5x2.5; 3.8x1.5x2.5;4.0x1.5x2.5;4.2x1.5x2.5 special dimension can be made according to requirement of customer.
* Capacity ,lifing speed etc can be selected according to requirement of customer.

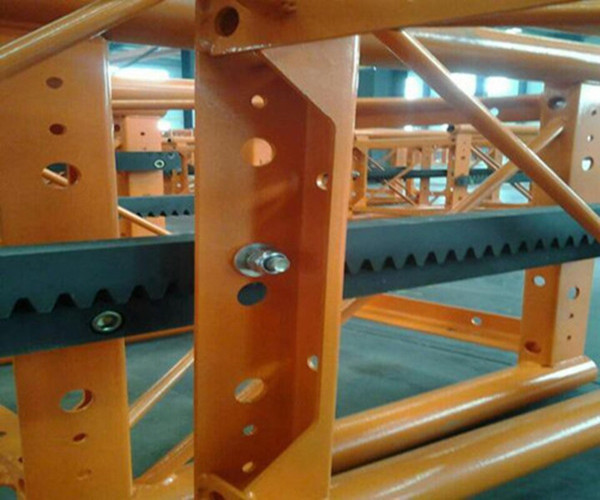

*Standard mast section is 650x650x1508mm,or can be made according to requirement of customer.
*Motor/reducer option:GJJ motor(Chinese);Nord motor special for GJJ(Germany)
*Tie-in type I apply for the height <=150m
*The hoist over 200 meters with counter weight is not recommended
