Shuangma is a large professional construction scaffolding manufacturer and exporter. For detailed industrial scaffolding,shipyard scaffolding and more scaffolding information, please consult us.

All products

Adjustable Screw Jacks for System Scaffolding

System Scaffolding Screw Jack is the adjustable base for modular system scaffolding. It provides not only heavy duty load bearing support to the scaffolding, but also provide leveling adjustment. Solid screw jack is made by the solid steel rod with dia.37.5mm after rolling the thread. Hollow screw jack is made by O.D 38x5mm or 5.5mm sealess steel tube. The jack nut is made by cast steel and to hold O.D 48.3mm scaffolding tube or O.D 60.3mm Shoring scaffold tube. Base plate is made by 6-8mm carbon steel.

Galvanized Base Jacks for Frame Scaffolding

Frame Scaffolding Screw Jack is the adjustable base jack for H frame scaffolding. It provides not only heavy duty load bearing support to the scaffolding, but also provide leveling adjustment. Solid screw jack is made by the solid steel rod with dia.34mm after rolling the thread. Hollow screw jack is made by O.D 34x4mm sealess steel tube. The jack nut is made by cast steel and to hold O.D 42-48mm frame leg tube. Base plate is made by 5-6mm carbon steel.

Punched Hole Cross Braces for H Frames

Punched Hole Cross braces enable scaffolding frames to maximize their loading capacity by balancing the frames on both ends.

Snap On Cross Braces for American Scaffolding Frames

Snap On Cross braces enable scaffolding frames to maximize their loading capacity by balancing the frames on both ends.

Punched Hole Guard Rail Brace for Frame Scaffolding

Guardrail Brace is one important part of frame scaffolding system, it provides fall protection to the people when working on the scaffold platform. Scaffold guard rail is made by dia.1.25" x 0.0787"t (O.D 32x2.0mm) pre-galvanized tube, or by black tube and then do electric galvanized, which endures hits and all kind of forces, preventing a person from leaving the area bounded by the platform.

Galvanized Snap On Guard Rail Braces for Scaffolding Frames

Guardrail Brace is one important part of frame scaffolding system, it provides fall protection to the people when working on the scaffold platform. Scaffold guard rail is made by dia.1.25" x 0.0787"t (O.D 32x2.0mm) pre-galvanized tube, or by black tube and then do electric galvanized, which endures hits and all kind of forces, preventing a person from leaving the area bounded by the platform. Snap On Guard Rail is matched for Snap on Series Frame Scaffolding and Guardrail Post.

Powder Coated Scaffolding Guardrail Post for Scaffolding Frames

Guardrail Posts are set up on top of the scaffolding platform for installing guardrail braces. They provide fall protection to the people when working on the scaffold platform. Guardrail Posts are made by dia.1.65" x 0.09"t (O.D 42x2.3mm) or dia. 1.69"x0.095"t (O.D 43x2.5mm) steel tubes. They are strong engough to hold the guardrail braces.

Powder Coated Angle Iron Side Bracket with Bell Hanger

Side brackets allow for the extension of the scaffold platform beyond the legs, usually by a multiple of plank widths. When used with frame scaffolds, the side bracket is placed at the leg and is parallel to the frame or bearer. Angle Iron Side Bracket is the kind of bracket made by angle iron, with bell hanger.

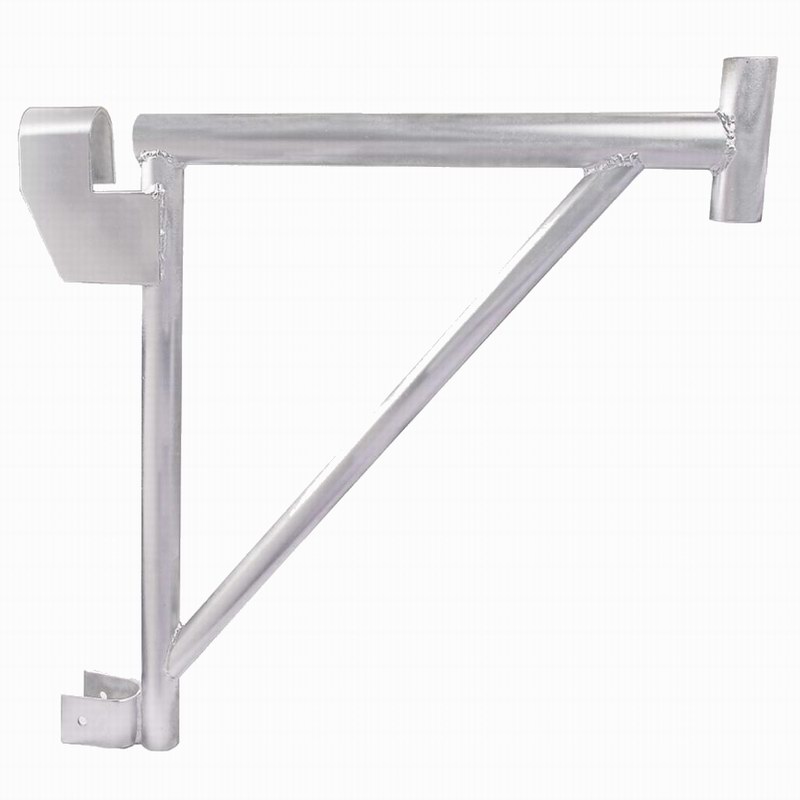

Powder Coated Tubular Side Bracket with Saddle Hanger

Side brackets allow for the extension of the scaffold platform beyond the legs, usually by a multiple of plank widths. When used with frame scaffolds, the side bracket is placed at the leg and is parallel to the frame or bearer. Tubular Side Bracket is the kind of bracket that made by dia.1.65"x0.09"t (O.D 42x2.3mm) steel tube and with saddle hanger.

Powder Coated Tubular End Bracket

End Bracket is the type of extension bracket, used to extend the platform at the end of a scaffold run. The end bracket is also placed at the leg but is perpendicular to the frame or bearer. Tubular End Bracket is made by dia.1.65"x0.09"t (O.D 42x2.3mm) steel tube and with bell hanger or saddle hanger.

Putlog, Putlog Truss for Frame Scaffolding

Scaffold Putlogs are used to span doorways to build around obstructions to connect frame towers and to solve other long-span applications.

Galvanized Scaffolding Locks and Pins

Scaffolding Locks and Pins are the necessary parts and safety devices for scaffolding system.

Galvanized Scaffolding Double Couplers

Scaffolding Couplers are the fittings for fixing and stabilizing the steel tubular scfolding. Simple, orthogonal, sviwel,fixed couplings for worksite barrier, couplings for beams and many other types. We supply various types of BS1139 / EN74 / AS 1576 / ANSI Standard forged or pressed Double Coupler, Swivel Clamp, Beam Clamp Girder, Sleeve Coupler, Putlog Coupler, Board Clamp...

Hot Dip Galvanized Twist Lock Scaffolding Tubes

Scaffolding Twist Lock Tubes are made from Hot Dip Galvanized Steel and meet OSHA and ANSI requirements. Tube-Lock is designed for the construction of independent scaffolds and can also be used in industry, shipbuilding and the aircraft industry.

Rubber Scaffolding Casters Wheel, PU Casters

Scaffolding Casters are the important components both for steel and alumnium scaffolding, they provide movable, convenient and safe load capacity for mobile scaffolding towers.

Powder Coated Folding Trestle for Plastering

Folding Trestle provides elevated access to work areas from ground level. The open trestle allows installation of scaffold planks on the rungs. The general purpose of Trestle Scaffolding is for masonry block brick works, plastering, repairing, painting and electrcain.
