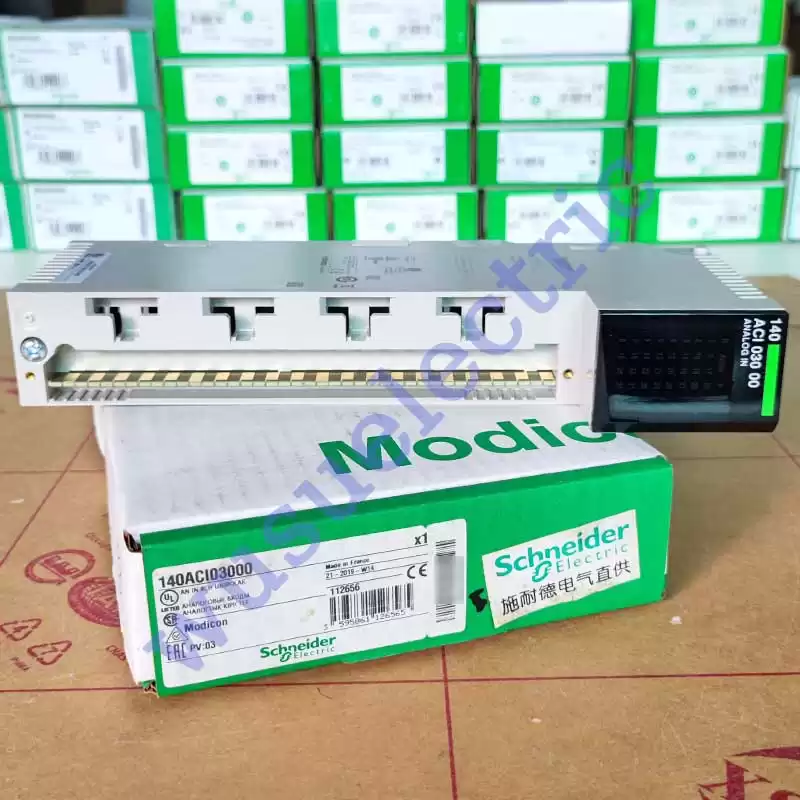

Specifications
| Primary brand |
Schneider Electric |
| Secondary brand |
Modicon |
| Main function |
I/O unit |
| Product series / family name |
Modicon Quantum |
| Sub-range name |
Modicon Quantum I/O modules |
| Functions |
Analog input module |
| Display |
1 green LED (for bus communication is present; Active)
8 green LEDs (for channel is turned on)
1 red LED (for external fault)
8 red LEDs (for channel fault) |
| Programming languages |
When programming with Unity Pro software available languages are
- Function Block Language FBD
- Ladder Diagram (LD)
- SFC Sequential Function Chart
- Instruction List (IL)
- Structured Text (ST) |
| Connection type |
40-pin screw term. blck. (sold separately) |
| Mounting mode |
backplane / rack mounting |
| Analog inputs |
8 x analog inputs (1-5Vdc / 4-20mA; differential; 12-bit) |
| Ambient air temperature for operation |
+32...+140°F / 0...+60 °C |
| Ambient air temperature for storage |
-40...+185°F / -40...+85 °C |
| Humidity |
95% (without condensation) |
| Power dissipation/losses |
2 W |
| Order code / Manufacturer SKU |
140ACI03000 |
| Product replaced by |
BMXAMI0810 |
| Compliant with standard(s) |
CSA C22.2 No. 142
UL508
CE
FM Class 1 Div 2
cUL
Shocks -- 15g-11ms; 3 shocks/direction/axis (IEC 60068-2-27 Ea) |
| Benefits |
The Modicon Quantum automation platform offers a complete range of analog I/O modules designed to interface with a wide variety of devices
All these modules comply with internationally accepted IEC electrical standards that ensure their reliability in severe environments
For increased protection and extended life in extremely harsh environments -- these modules can be ordered with a special treatment |
