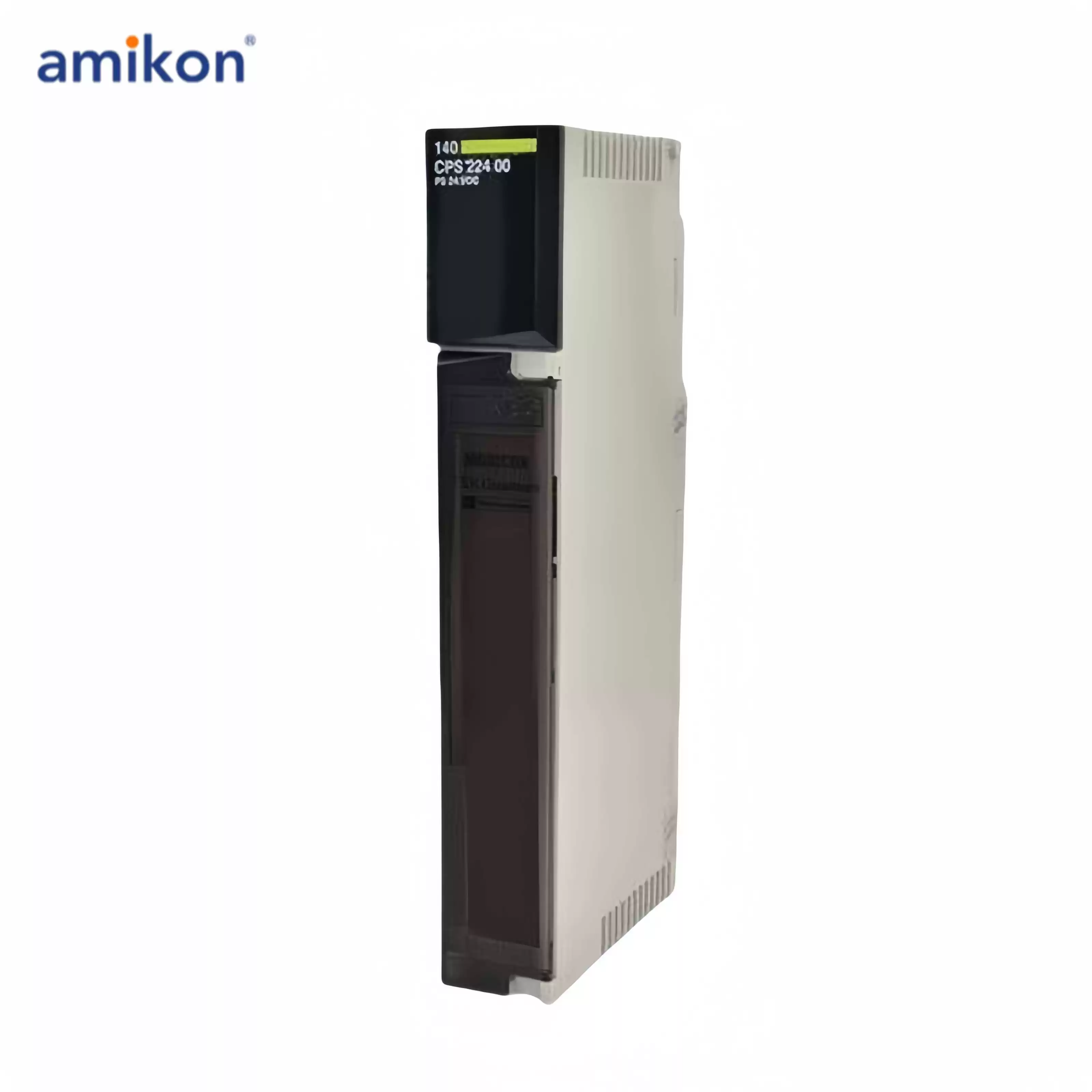

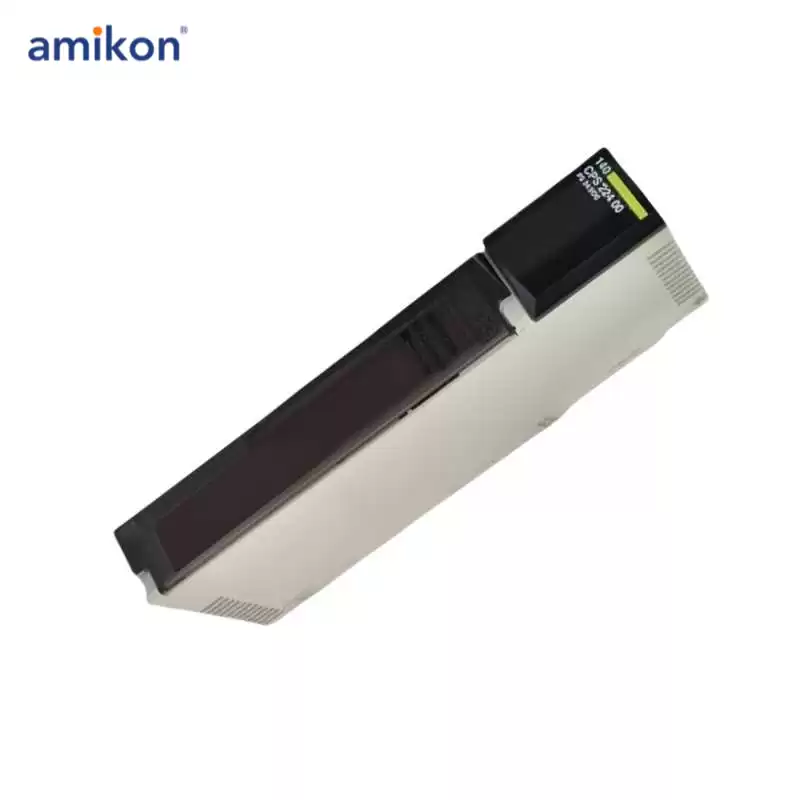

Schneider 140CPS22400 power supply module
The Schneider Electric 140CPS22400 is a power supply module designed for use in the Modicon Quantum series of programmable logic controllers (PLCs).
This module provides reliable DC power to the Quantum PLC system and its associated I/O modules, ensuring continuous operation in industrial automation environments.
It delivers 24V DC power and supports a wide range of operating conditions, making it suitable for use in harsh industrial settings.
Technical Specifications
|
Parameter
|
Specification
|
|
Input Voltage
|
24 V (20...30 V) DC
|
|
Input Current
|
3800 mA
|
|
Inrush Current
|
14 A (20 V)
|
|
25 A (24 V)
|
|
Maximum Input Power Interruption
|
100 ms
|
|
1 ms (20 V)
|
|
Associated Fuse Rating
|
5 A, slow-blow
|
|
Output Voltage
|
5.1 V DC
|
|
Power Supply Output Current
|
8 A (redundant)
|
|
Output Overvoltage Protection
|
Internal
|
|
Output Overload Protection
|
2.3 x maximum rated input voltage for 1.3 ms
|
|
Power Dissipation
|
6 + (1.8 x Iout) where Iout is in A
|
|
Alarm Output
|
1 NC, 6 A, 220 V (power supply fault)
|
|
Local Signalling for Power (PWR OK)
|
1 LED (green)
|
|
Marking
|
CE
|
|
Module Format
|
Standard
|
|
Net Weight
|
1.43 lb (US) (0.65 kg)
|
