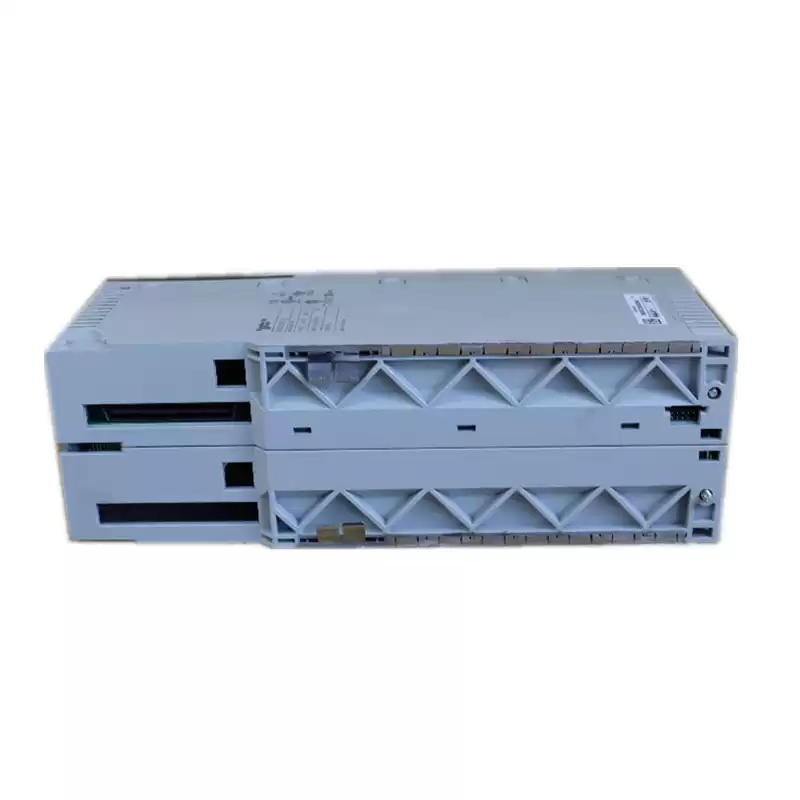

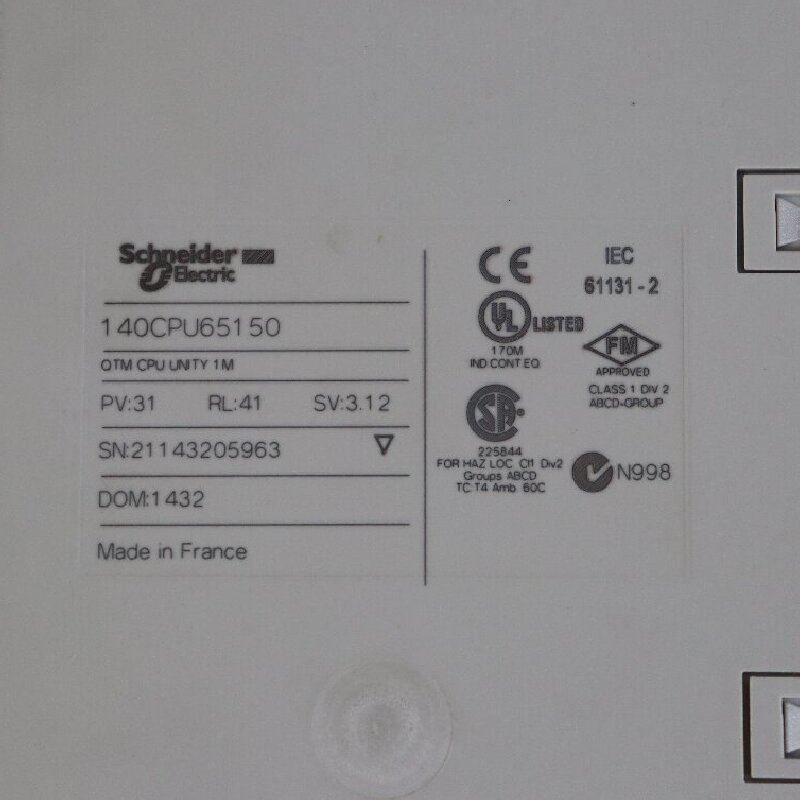

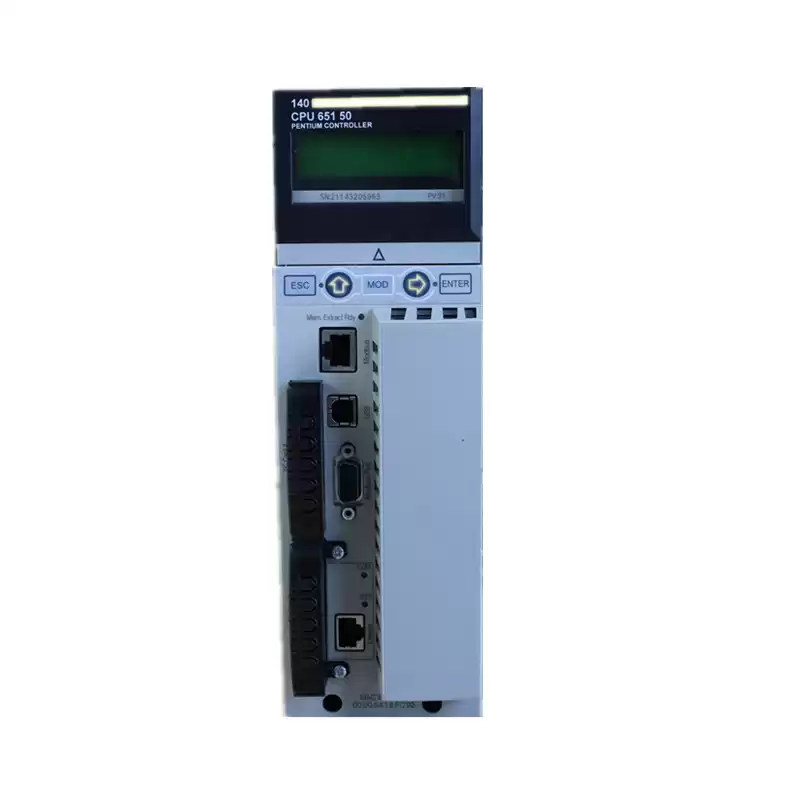

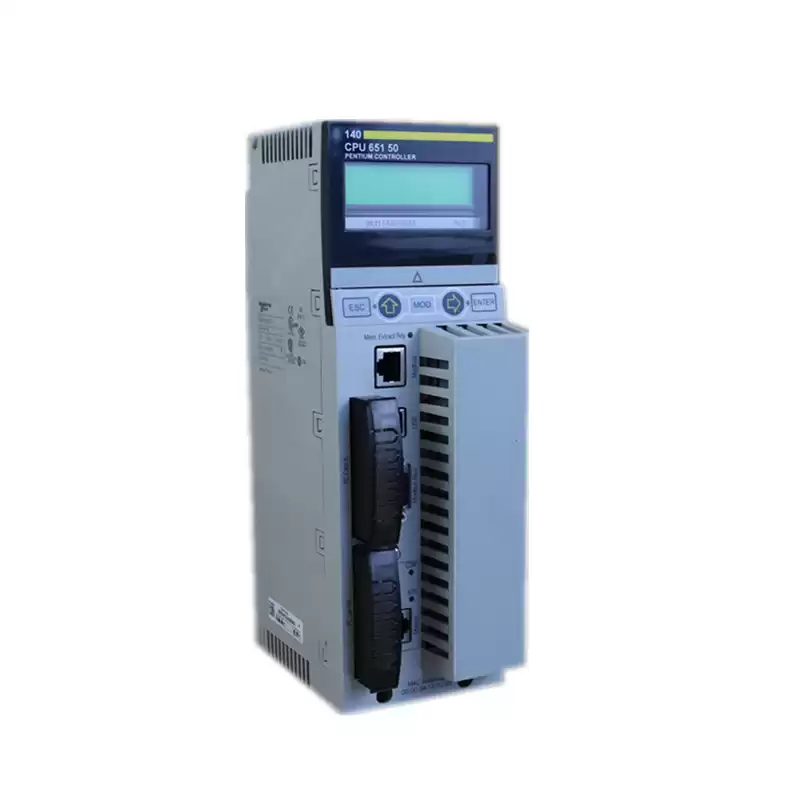

Schneider 140CPU65150 OTM CPU Unit

    Product Details:

• Range of product：Modicon Quantum automation platform
• Product or component type：Unity processor
• Clock frequency：166 MHz
• Number of slots：10  16  6  4  2
• Number of racks：2 - local
• Number of distributed I/O station：63 1 3 Modbus Plus
• Number of remote I/O station：31 - 2 S908 remote I/O
•                                                     31 - 2 ethernet Quantum remote I/O
•                                                     16 - 2 ethernet X80 remote I/O
• Discrete I/O number：31744 inputs, 31744 outputs - remote
•                                      8000 inputs, 8000 outputs - distributed - per network Modbus Plus
•                                      Unlimited (26 slots max) - local
•                                      Unlimited (31 drops of 28 slots max) - ethernet remote I/O
• Analogue I/O number：500 inputs, 500 outputs - distributed - per network Modbus Plus
•                                        1984 inputs,1984 outputs - S908 remote I/O
•                                        Unlimited (26 slots max) - local
•                                       Unlimited (31 drops of 28 slots max) - ethernet remote I/O
• Application specific I/O：Accurate time stamping
•                                          Serial link
•                                          High-speed interrupt inputs
•                                          Counter
• Communication service：Ethernet router
• Number of optional modules：6 Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)
• Maximum number of connections：1 USB
•                                                           2 AS-Interface - distributed
•                                                           4 AS-Interface - remote
•                                                           6 Ethernet TCP/IP - local
•                                                           6 Modbus Plus - local
•                                                           6 Profibus DP - local
•                                                           1 Modbus RS232/485 Modbus/ASCII)
• Integrated connection type：1 Modbus Plus
•                                                1 Ethernet TCP/IP
•                                                1 Modbus
•                                                1 USB
• Memory description：Expandable 7168 kB - program with PCMCIA card
•                                     Expandable 8 MB - file storage with PCMCIA card
•                                     Internal RAM 768 kB
• Switch function：Key switch memory port on/off
• Application structure：1 cyclic/periodic master task -
•                                      1 periodic fast task -
•                                      128 I/O interrupt tasks -
•                                      128 interrupt tasks -
•                                      32 timer interrupt tasks -
•                                      4 auxiliary tasks -
• Number of instructions per ms：10.28 Kinst/ms 100 % Boolean
•                                                      10.07 Kinst/ms 65 % Boolean and 35 % numerical
• System overhead：0.2 ms fast task
•                               1 ms master task
• Bus current requirement：2160 mA
• Local signalling：Ethernet activity (COM) 1 LED green)
•                             Ethernet collision 1 LED red)

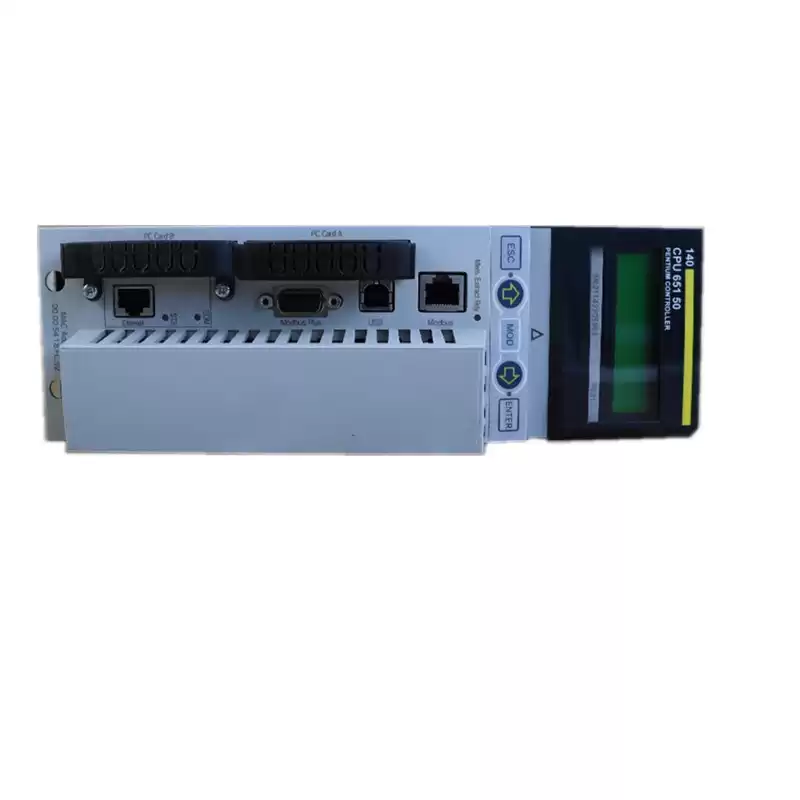

• Electrical connection：1 female connector SUB-D 9 for connecting to the Modbus Plus network
•                                     1 connector RJ45 for connecting Ethernet network
•                                     1 connector RJ45 for connecting Modbus bus
