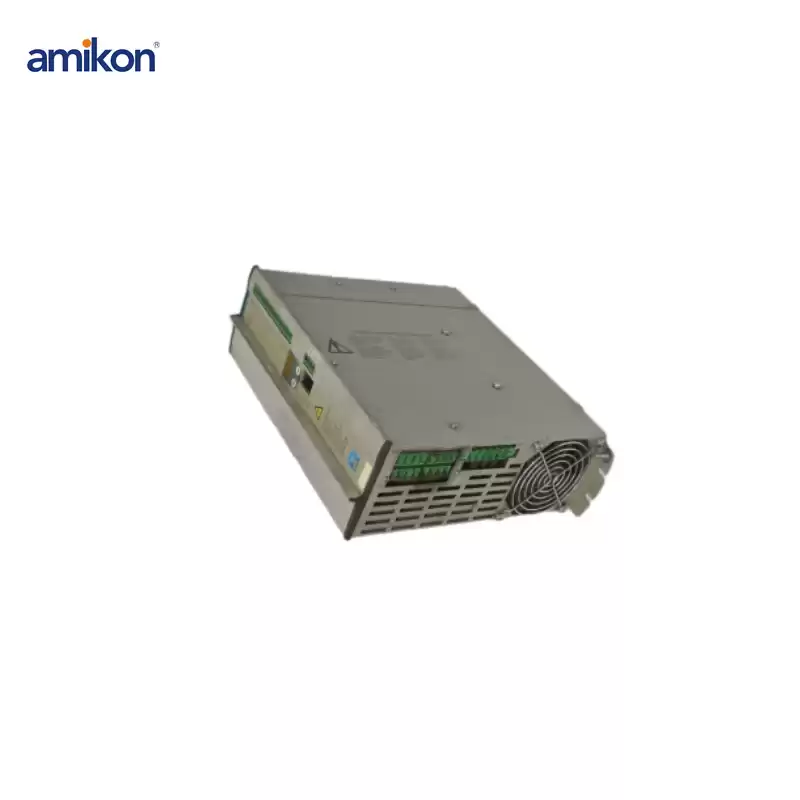

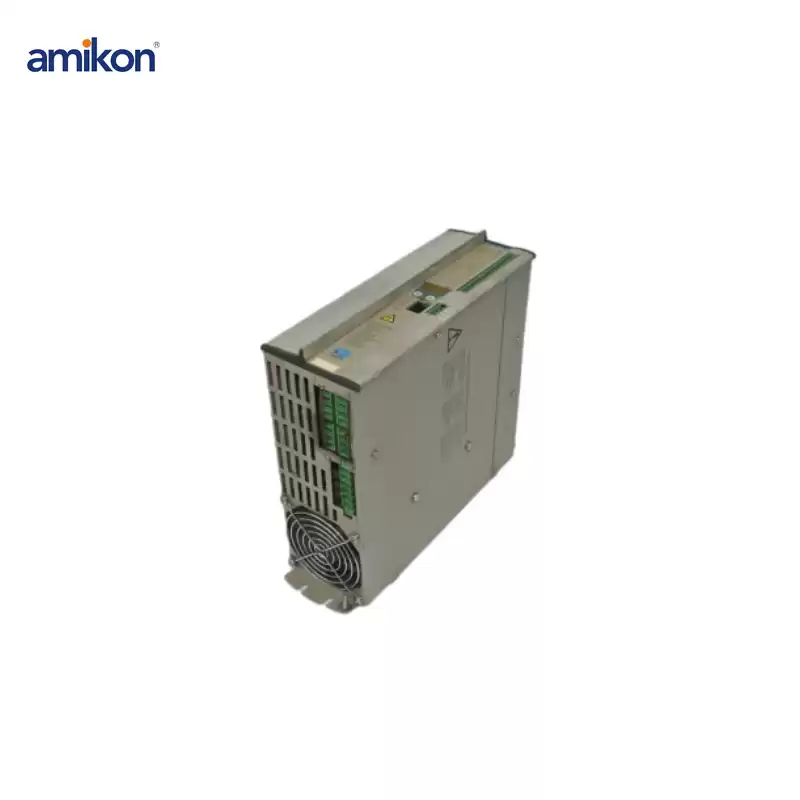

Schneider LXM15MD40N4 Servo Drive
The Schneider LXM15MD40N4 is a high-performance servo drive designed to provide precise motion control for a variety of industrial automation applications. Part of Schneider Electric's Lexium 15 series, this compact and versatile servo drive offers exceptional efficiency and reliability, making it suitable for applications such as robotics, packaging, material handling, and CNC machinery.
Equipped with advanced control algorithms, the LXM15MD40N4 ensures rapid response times and high torque output, enabling accurate positioning and smooth motion. The drive is compatible with a wide range of Schneider servo motors, providing flexibility in system design. It also supports various communication protocols, including Ethernet/IP and CANopen, allowing for easy integration into existing automation systems.
Technical Specifications
|
Model Number
|
LXM15MD40N4
|
|
Type
|
Servo Drive
|
|
Power Supply
|
230V AC ± 10%
|
|
Power Rating
|
4 kW
|
|
Current Rating
|
10 A (Continuous)
|
|
Control Mode
|
Position, Speed, and Torque control
|
|
Communication Protocols
|
Ethernet/IP, CANopen
|
|
Cooling Method
|
Fan-cooled
|
|
Operating Temperature
|
-10°C to +40°C
|
|
Storage Temperature
|
-20°C to +70°C
|
|
Protection Class
|
IP20
|
|
Dimensions
|
Approx. 240 mm x 150 mm x 90 mm
|
|
Weight
|
Approx. 2.5 kg
|
|
Certifications
|
CE, UL, RoHS
|
|
Applications
|
Robotics, Packaging, Material Handling, CNC
|
|
Safety Features
|
Built-in thermal protection, extensive diagnostics
|
