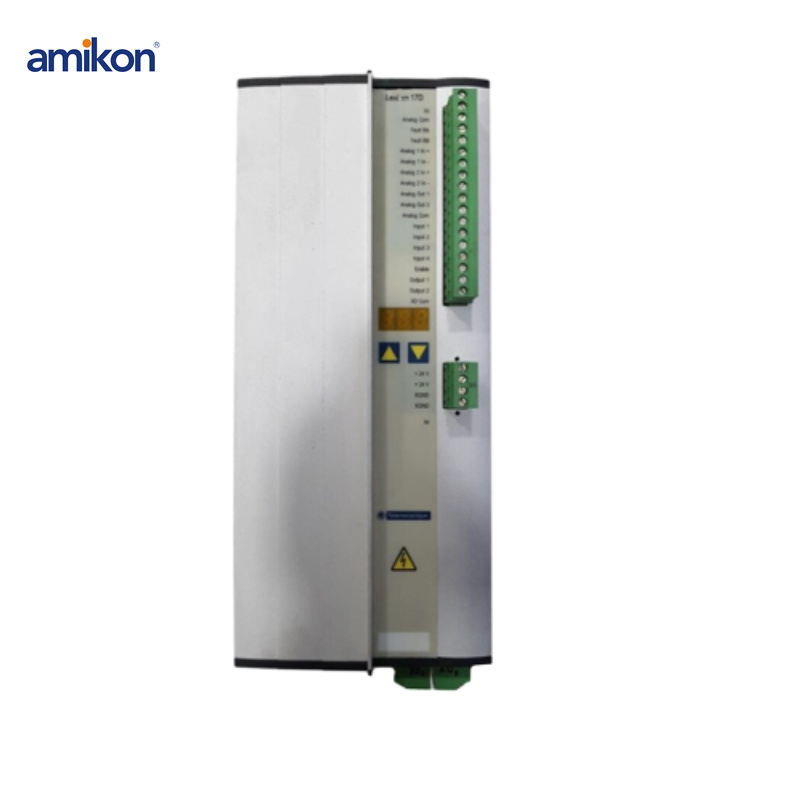

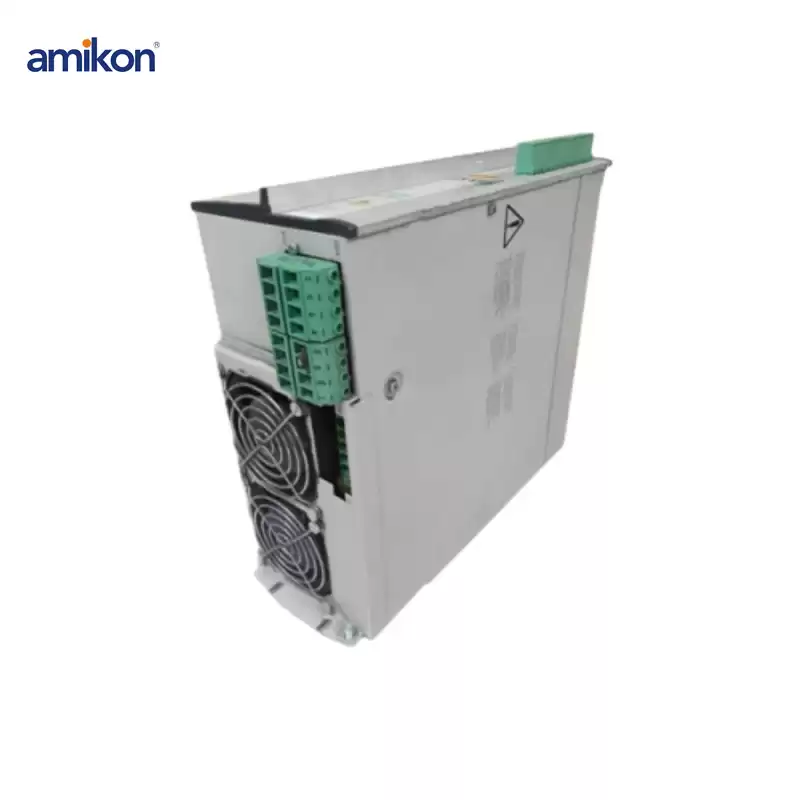

Schneider MHDA1056N00 SERVO DRIVE
The Schneider MHDA1056N00 Servo Drive is a high-performance motion control solution designed to meet the demanding needs of various industrial automation applications. Part of Schneider Electric's MHDA series, this servo drive is engineered for precise control and efficiency, making it suitable for a wide range of applications, including robotics, packaging machinery, material handling, and CNC systems.
Featuring advanced digital technology, the MHDA1056N00 provides exceptional performance with high torque and rapid response times, ensuring accurate motion control. Its compact design allows for easy integration into existing systems, while the flexible communication options—including EtherCAT and Modbus—enable seamless connectivity with various controllers and field devices.
Technical Specifications
|
Schneider MHDA1056N00 SERVO DRIVE
|
|
Model Number
|
MHDA1056N00
|
|
Series
|
SERVO DRIVE
|
|
Component Type
|
Programmable Logic Controller (PLC)
|
|
I/O Points
|
42 (24 digital inputs, 18 digital outputs)
|
|
Power Supply
|
24V DC
|
|
Processor
|
32-bit processor
|
|
Memory
|
4096 KB (expandable)
|
|
Communication Protocols
|
Ethernet, Modbus TCP/IP, CANopen
|
|
High-Speed Counters
|
4 built-in high-speed counters (up to 100 kHz)
|
|
Programming Environment
|
Schneider SoMachine Software
|
|
Operating Temperature
|
0°C to +60°C
|
|
Storage Temperature
|
-25°C to +70°C
|
|
Mounting
|
DIN Rail
|
|
Dimensions
|
180 mm x 130 mm x 75 mm
|
|
Weight
|
Approx. 1.2 kg
|
|
Certifications
|
CE, UL, RoHS
|
|
Expansion Options
|
Modular I/O expansion available
|
|
Applications
|
Manufacturing, Material Handling, Packaging, Machine Automation
|
|
Digital Inputs
|
24V DC, Sink/Source
|
|
Digital Outputs
|
Transistor (24V DC, 0.5A per point)
|
