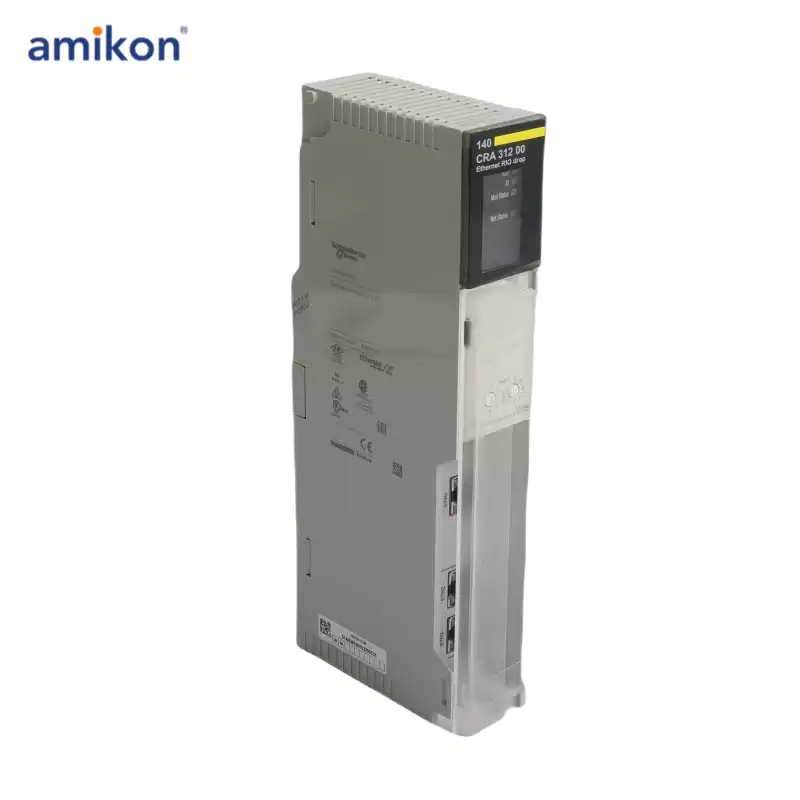

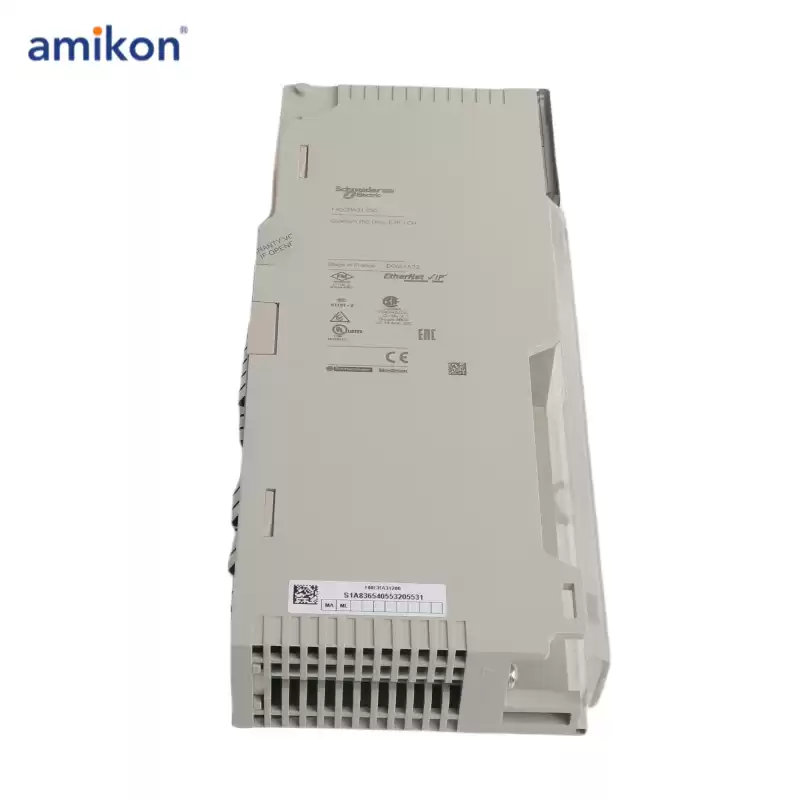

Schneider Modicon Quantum Ethernet RIO drop adaptor 140CRA31200:
A Quantum Ethernet I/O architecture with Ethernet RIO drops requires the use of CRP and CRA Ethernet adaptors:
-140CRP31200 head adaptor installed in the Quantum local rack
-140CRA31200 drop adaptor installed in each Quantum Ethernet RIO drop
Each of these adaptors is connected by Ethernet cables equipped with RJ45
connectors.

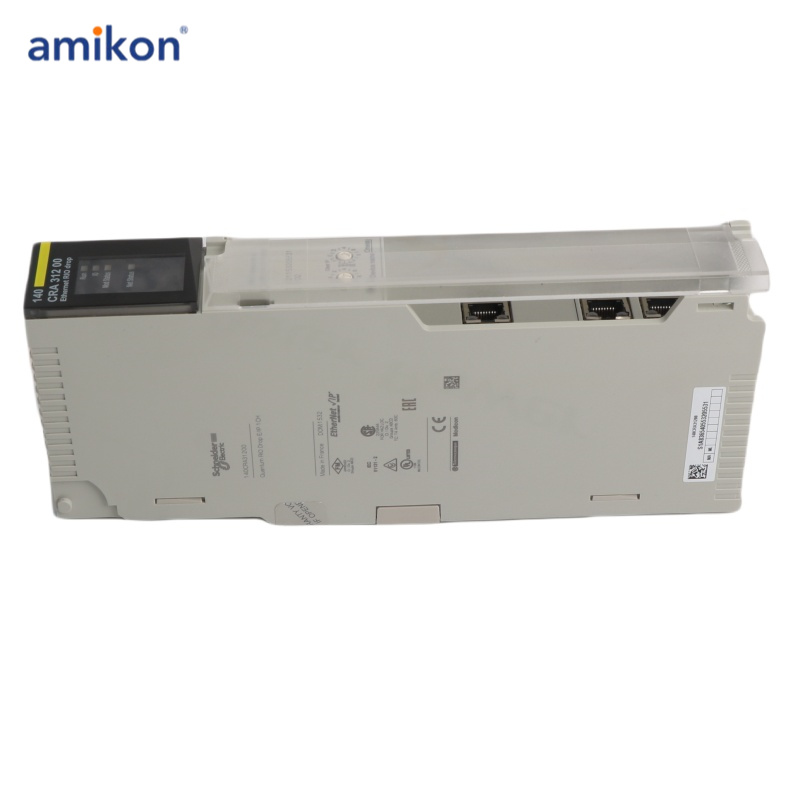

The dual Ethernet network connection port on each adaptor allows Daisy Chain Loop connections using the RSTP protocol (Rapid Spanning Tree Protocol).
Each adaptor uses one slot in the Quantum rack.
These adaptors are also offered in Conformal coating version for harsh
environments.
|
Attribute
|
Details
|
|
Main Range of Product
|
Modicon Quantum
|
|
Product or Component Type
|
Ethernet RIO drop adaptor
|
|
Number of Port
|
3
|
|
Integrated Connection Type
|
Ethernet IP/Modbus TCP service port, Ethernet IP/Modbus TCP device network
|
|
Communication Port Protocol
|
Ethernet IP/Modbus TCP
|
|
Communication Service
|
- Input data collected and published to the remote I/O head adaptor
|
|
- Output modules updated with data received from the remote I/O head adaptor
|
|
Topology
|
Daisy chain loop
|
|
Local Signaling
|
- Module Status (Mod Status): 1 LED (green/red)
|
|
- Network Communication Status (Net Status): 1 LED (green/red)
|
|
- RUN: 1 LED (green)
|
|
- I/O: 1 LED (red)
|
|
Product Compatibility
|
140CRP31200
|
|
Environmental Characteristics
|
Standard environment, Hazardous location Class I Division 2 EN/IEC 61131-1
|
|
Width
|
6.6 in (167 mm)
|
|
Height
|
2.0 in (50 mm)
|
|
Net Weight
|
1.221 lb(US) (0.554 kg)
|
