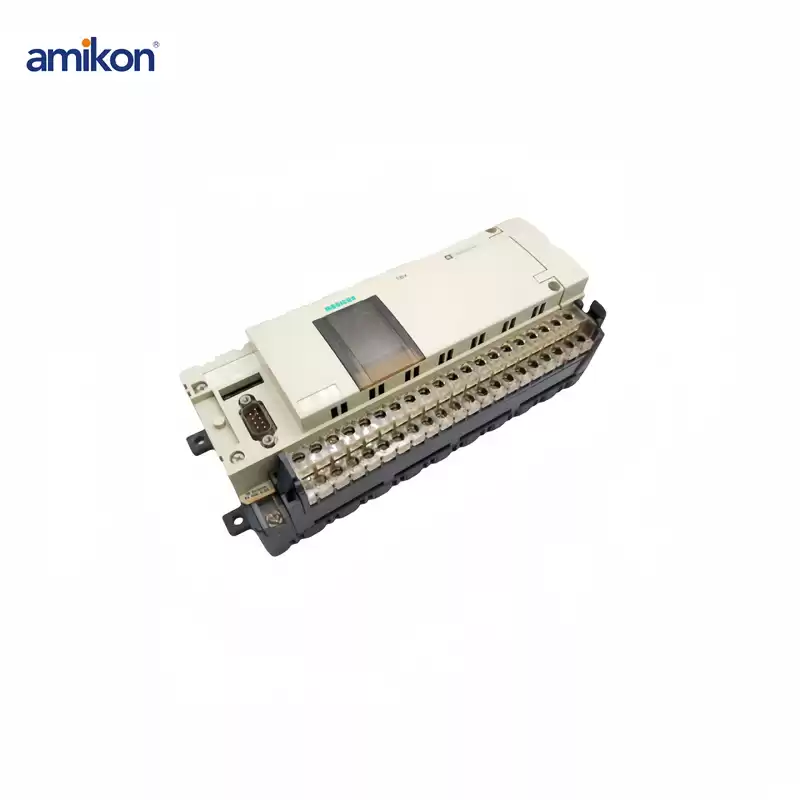

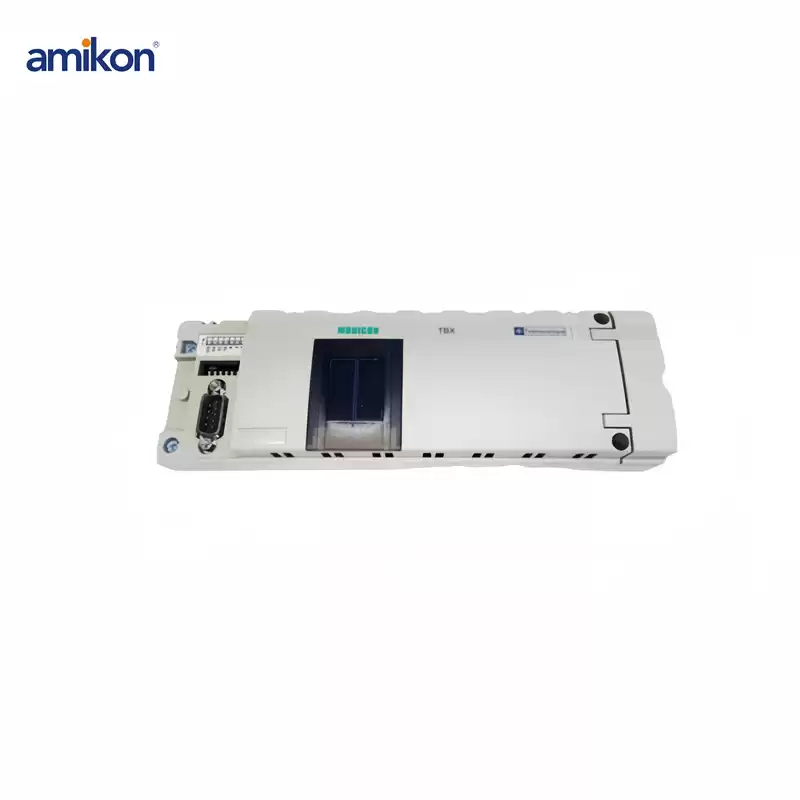

Schneider TBXLEP030 Communication Module
The Schneider TBXLEP030 Communication Module is a versatile and robust component designed to enhance the connectivity of Schneider Electric's Modicon PLC systems.
This module plays a crucial role in ensuring seamless communication between various devices and control systems, facilitating effective data exchange in industrial automation applications.
The TBXLEP030 is designed for easy integration with existing systems, offering multiple communication protocols such as Ethernet/IP and Modbus TCP, which enable it to connect with a wide range of field devices and third-party equipment.
Its compact design allows for efficient use of panel space, while the user-friendly interface simplifies configuration and troubleshooting.
Technical Specifications
|
Schneider TBXLEP030 Communication Module
|
|
Model Number
|
TBXLEP030
|
|
Series
|
TBXLEP
|
|
Component Type
|
Programmable Logic Controller (PLC)
|
|
I/O Points
|
42 (24 digital inputs, 18 digital outputs)
|
|
Power Supply
|
24V DC
|
|
Processor
|
32-bit processor
|
|
Memory
|
4096 KB (expandable)
|
|
Communication Protocols
|
Ethernet, Modbus TCP/IP, CANopen
|
|
High-Speed Counters
|
4 built-in high-speed counters (up to 100 kHz)
|
|
Programming Environment
|
Schneider SoMachine Software
|
|
Operating Temperature
|
0°C to +60°C
|
|
Storage Temperature
|
-25°C to +70°C
|
|
Mounting
|
DIN Rail
|
|
Dimensions
|
180 mm x 130 mm x 75 mm
|
|
Weight
|
Approx. 1.2 kg
|
|
Certifications
|
CE, UL, RoHS
|
|
Expansion Options
|
Modular I/O expansion available
|
|
Applications
|
Manufacturing, Material Handling, Packaging, Machine Automation
|
|
Digital Inputs
|
24V DC, Sink/Source
|
|
Digital Outputs
|
Transistor (24V DC, 0.5A per point)
|
