Schneider TM258LF42DT4L Programmable Controller

New and original & Fast Deliyery & In Stock


  • Payment Term100% Advance Payment T/T Bank Wire Transfer
  • Warranty PeriodOne Year Warranty
  • Dimensions30.5x9x3.5cm
  • Weight0.5kg
  • Country of OriginFRANCE
  • Brand/ManufaturerSchneider

Contact Information!

Discuss pricing and delivery time with a sales representative


 +86 189 6519 6563             sales17@amikon.cn              +86-189 6519 6563     Amikonplc

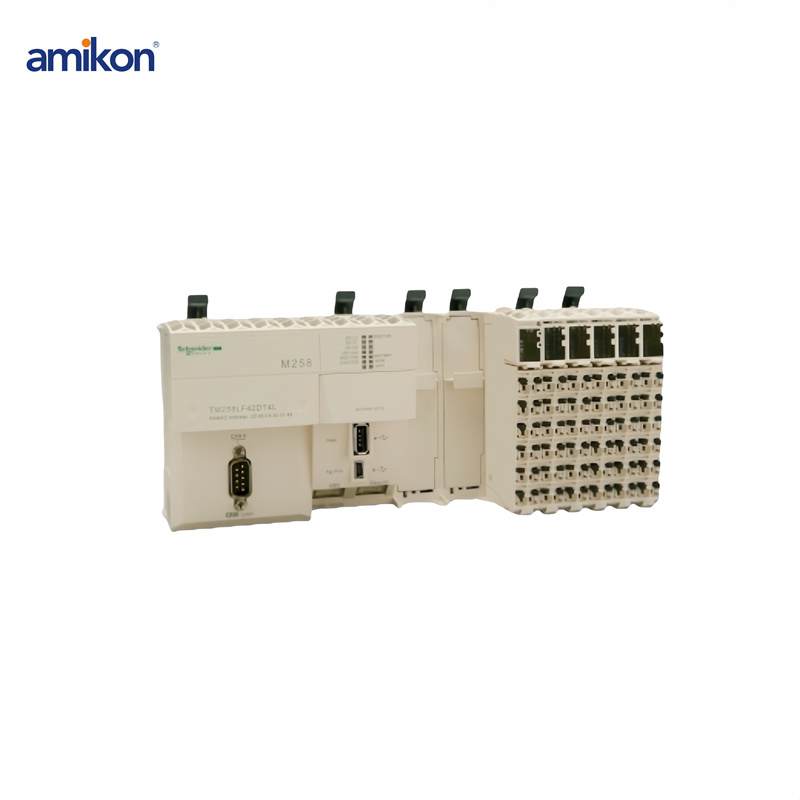

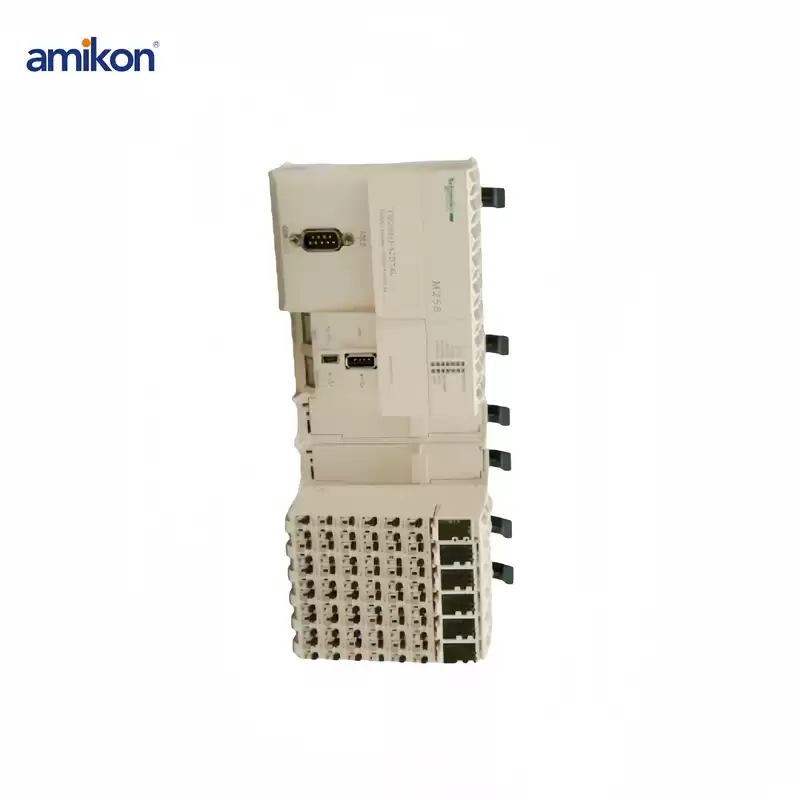

Schneider TM258LF42DT4L Programmable Controller


The Schneider TM258LF42DT4L is a high-performance programmable logic controller (PLC) designed to provide powerful automation control for complex industrial systems.

Part of Schneider Electric's Modicon M258 family, this programmable controller is engineered to handle a wide range of automation tasks, offering flexibility, reliability, and scalability.


With 42 I/O points, the TM258LF42DT4L is ideal for managing multiple industrial processes, including motion control, data acquisition, and communication with field devices

It comes equipped with high-speed counters, integrated Ethernet connectivity, and various communication protocols, making it well-suited for industries such as manufacturing, packaging, material handling, and machine automation.


Technical Specifications


Schneider TM258LF42DT4L Programmable Controller

Model Number

TM258LF42DT4L

Series

Modicon M258

Component Type

Programmable Logic Controller (PLC)

I/O Points

42 (24 digital inputs, 18 digital outputs)

Power Supply

24V DC

Processor

32-bit processor

Memory

4096 KB (expandable)

Communication Protocols

Ethernet, Modbus TCP/IP, CANopen

High-Speed Counters

4 built-in high-speed counters (up to 100 kHz)

Programming Environment

Schneider SoMachine Software

Operating Temperature

0°C to +60°C

Storage Temperature

-25°C to +70°C

Mounting

DIN Rail

Dimensions

180 mm x 130 mm x 75 mm

Weight

Approx. 1.2 kg

Certifications

CE, UL, RoHS

Expansion Options

Modular I/O expansion available

Applications

Manufacturing, Material Handling, Packaging, Machine Automation

Digital Inputs

24V DC, Sink/Source

Digital Outputs

Transistor (24V DC, 0.5A per point)
