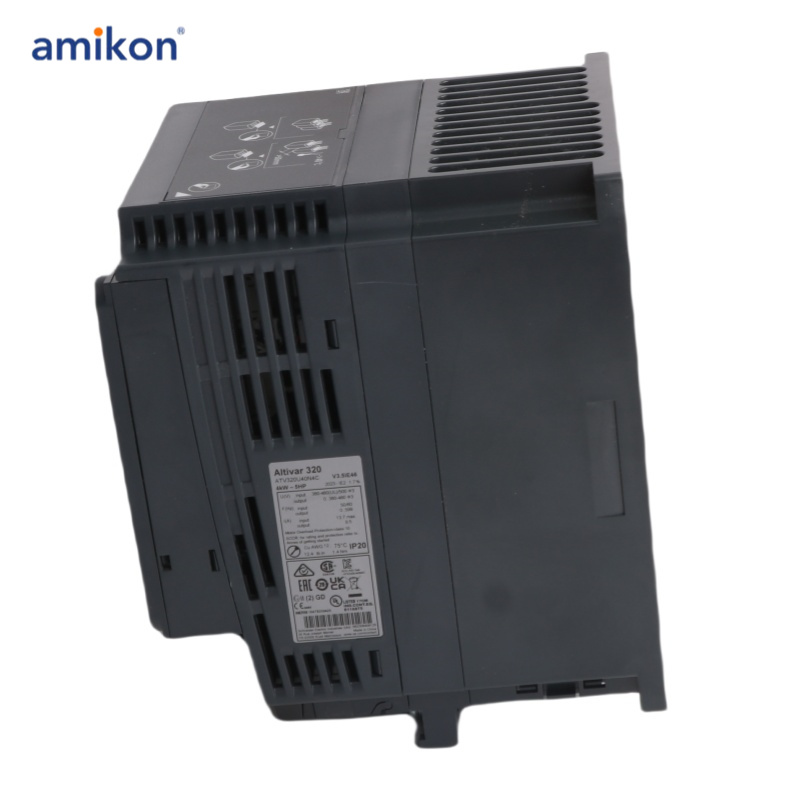

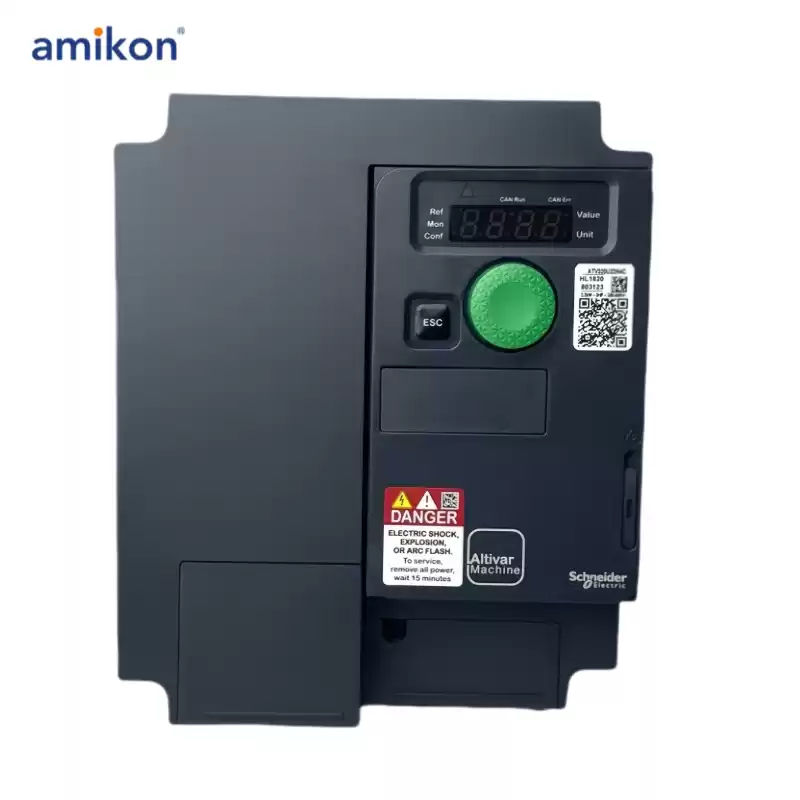

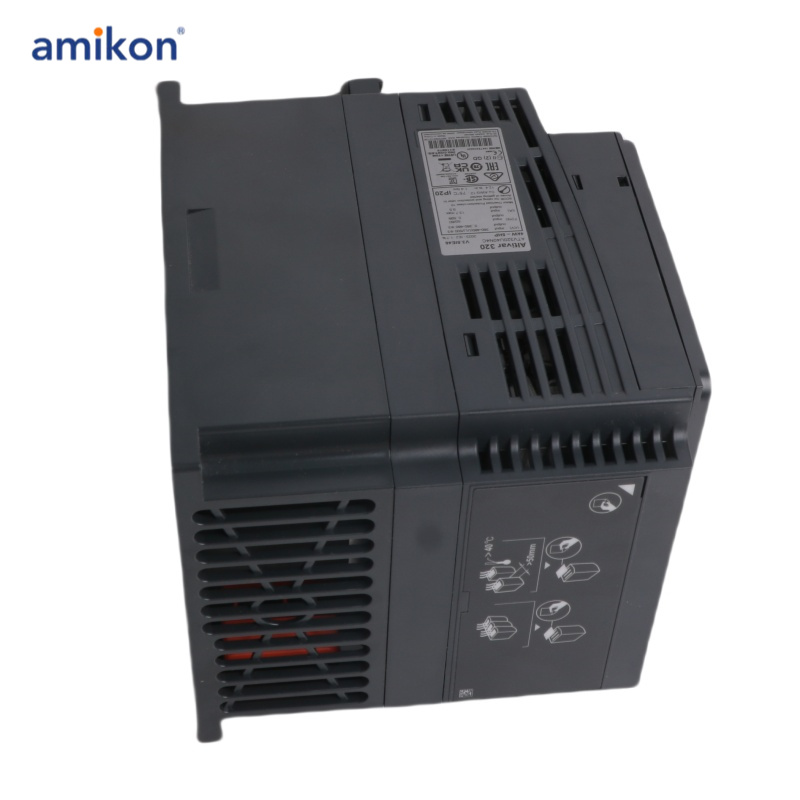

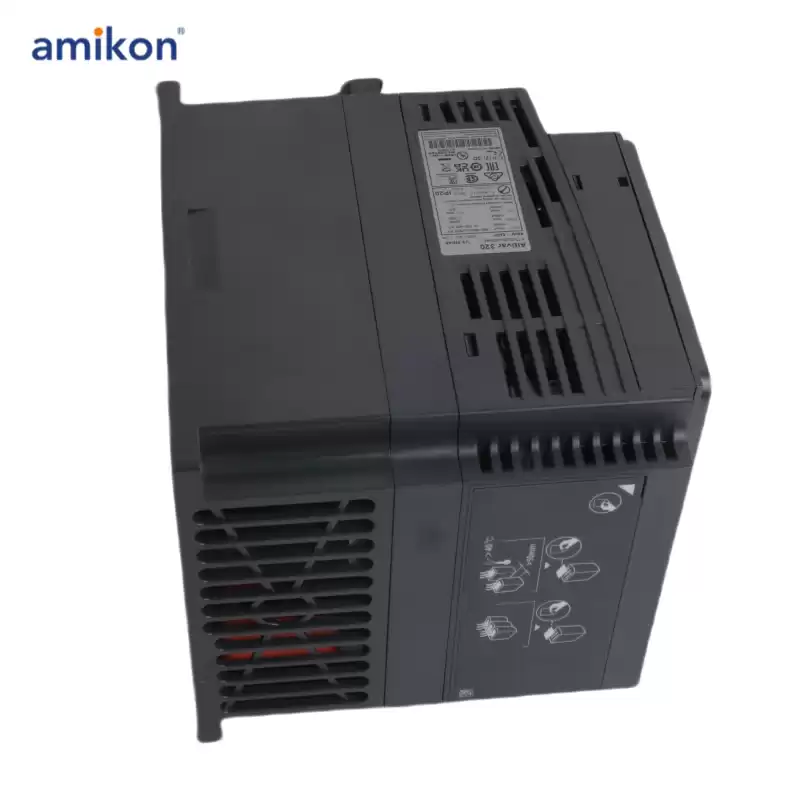

This Altivar 320 variable speed drive can feed 3-phase synchronous and asynchronous motors. Its compact form factor allows vertical stacking of drives inside machine frames. It works at a rated power up to 2.2kW / 3hp and a rated voltage from 380V to 500V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module.
|
Main
|
|
Range of product
|
Altivar Machine ATV320
|
|
Product or component type
|
Variable speed drive
|
|
Product specific application
|
Complex machines
|
|
Format of the drive
|
Compact
|
|
Mounting mode
|
Wall mount
|
|
Complementary
|
|
Discrete input number
|
7
|
|
Discrete input logic
|
Positive logic (source)
|
|
Negative logic (sink)
|
|
Discrete output number
|
3
|
|
Analogue input number
|
3
|
|
Maximum input current
|
8.7 A
|
|
Maximum output voltage
|
500 V
|
|
Apparent power
|
5.7 kVA at 500 V (heavy duty)
|
|
Network frequency
|
50...60 Hz
|
|
Relative symmetric network frequency tolerance
|
5%
|
|
Prospective line Isc
|
5 kA
|
|
Base load current at high overload
|
8.0 A
|
|
Packing Units
|
|
Unit Type of Package 1
|
PCE
|
|
Number of Units in Package 1
|
1
|
|
Package 1 Height
|
24.500 cm
|
|
Package 1 Width
|
19.500 cm
|
|
Package 1 Length
|
26.700 cm
|
|
Package 1 Weight
|
2.652 kg
|
