1. Advantages
SAFETY AND STABILITY
•AC motor drive with high efficiency, no need to replace carbon brush, very good ramp starting performance.
•Two model function can control the speed of lift and lowering.
•Low center of gravity, excellent stability for operation.
•Small turning radius, good turning performance.
•With advanced variable frequency AC motor free maintenance and excellent performance.
•Can control the speed of driving and lifting in the same time.
•Shock absorber system support good noise reduction.
•Wide view mast and clear visibility.
•With full free lifting, can work in the limited roof environment.
•Import proportional hydraulic valve, adjustable speed for lifting/lowering.
•Muti-function display: battery status, hour meter, fault code, slow running state, etc.
•Big power controller (350A) with big power electric motor (10KW), support excellent reliability.

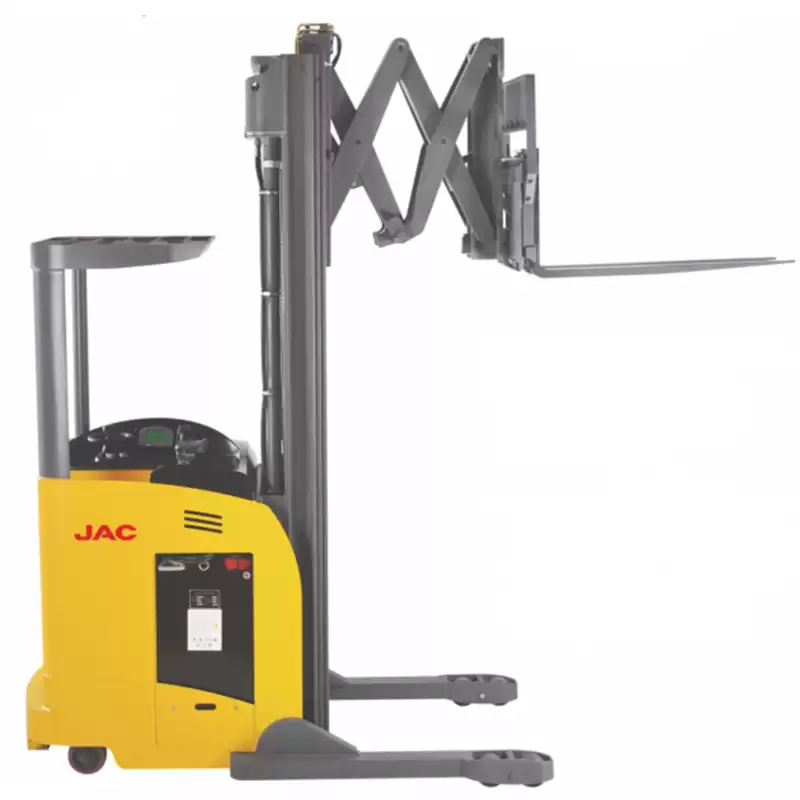

•Double scissors reach fork let the reach distance up to 1000mm.
•The mast fixed with the frame, when fork move forward, the mast can become the balance weight, reduce the total service weight.
•With advanced 36V electric control system, smaller electric current, ensure the reliability of the battery system.
•High speed of lifting and lowering, 300% faster than normal type truck.
SERVICEABILITY
•Side way battery is very convenient to do maintenance and replace batteries.
•CANbus technology reduces wiring complexity, making the line clear and orderly. increases the truck`s reliability and easy to repair.
•The Mast can be separate from the frame, very good interchange ability(option).
2. Specification
|
Model
|
|
CQDH18C(Single Scissor)
|
CQDH18C(Single Scissor)
|
CQDH18C(Double Scissor)
|
CQDH18C(Double Scissor)
|
|
Drive type
|
|
battery
|
battery
|
battery
|
battery
|
|
Capacity/Rated load
|
Q(kg)
|
1800
|
1800
|
1000
|
1000
|
|
Load centre distance
|
c(mm)
|
600
|
600
|
600
|
600
|
|
Load distance, centre of drive axle to fork
|
x(mm)
|
246
|
246
|
123
|
123
|
|
Tyre size, front
|
mm
|
280×82+160x60x2
|
280×82+160x60x2
|
280×82+160x60x2
|
280×82+160x60x2
|
|
Tyre size, rear
|
mm
|
125×82(4)
|
125×82(4)
|
125×82(4)
|
125×82(4)
|
|
Wheels, number front rear(x=driven wheels)
|
|
1x+2/4
|
1x+2/4
|
1x+2/4
|
1x+2/4
|
|
Tilt of mast/fork carriage forkward/backward
|
Grad
|
2/5
|
2/5
|
2/5
|
2/5
|
|
Height,mast lowered
|
h1(mm)
|
2125/2375/2625
|
2185/2345/2505/2675
|
2125/2375/2625
|
2185/2345/2505/2675/2840
|
|
Free lift
|
h2(mm)
|
~
|
1575/1700/1825/2000
|
~
|
1575/1700/1825/2000/2125
|
|
Max.lift height
|
h3(mm)
|
3000/3500/4000
|
4500/5000/5500/6000
|
3000/3500/4000
|
4500/5000/5500/6000
|
|
Height, mast extended
|
h4(mm)
|
3900/4400/4900
|
5400/5900/6400/6900
|
3000/3500/4000
|
4500/5000/5500/6000/6500
|
|
Height of overhead guard
|
h6(mm)
|
2246
|
2246
|
2246
|
2246
|
|
Length to face of forks
|
l2(mm)
|
1618
|
1618
|
1726
|
1750
|
|
Overall length
|
l1(mm)
|
2716
|
2716
|
2585
|
2609
|
|
Overall width
|
b1/b2(mm)
|
1295/1040
|
1295/1040
|
1298/1040
|
1298/1040
|
|
Fork Dimension
|
s/e/l(mm)
|
40/100/1070
|
40x100x1070
|
40/100/1070
|
40x100x1070
|
|
Reach distance
|
l4(mm)
|
500
|
500
|
1200
|
1200
|
|
Fork height, lowered
|
h8(mm)
|
130
|
130
|
130
|
130
|
|

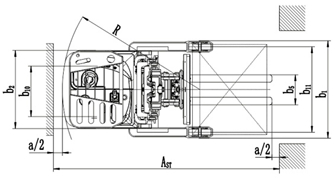

Distance of “X”(see below diagram)
|
mm
|
450
|
450
|
450
|
450
|
|
Overall length(excluding the fork)
|
mm
|
2023
|
2023
|
2023
|
2023
|
|
Ground clearance, centre of wheelbase
|
m2(mm)
|
49
|
49
|
49
|
49
|
|
Aisle width for pallets 1000×1200 croossways
|
Ast(mm)
|
3013
|
3013
|
3110
|
3131
|
|
Aisle width for pallets 800×1200 lengthways
|
Ast(mm)
|
3085
|
3085
|
3197
|
3220
|
|
Turning radius
|
Wa(mm)
|
1848
|
1848
|
1848
|
1848
|
|
Travel speed, laden/unladen
|
Km/h
|
6.5/7
|
6.5/7
|
6.5/7
|
6.5/7
|
|
Lift speed, laden/unladen
|
m/s
|
0.2/0.3
|
0.2/0.3
|
0.2/0.3
|
0.2/0.3
|
|
Lowering speed, laden/unladen
|
m/s
|
0.32/0.312
|
0.32/0.312
|
0.32/0.312
|
0.32/0.312
|
|
Battery voltage,nominal capacity K5
|
V/Ah
|
36/700
|
36/700
|
36/700
|
36/700
|
|
Battery weight
|
Kg
|
810
|
810
|
810
|
810
|
|
Battery dimensions l/w/h
|
mm
|
978x395x765
|
978x395x765
|
978x395x765
|
978x395x765
|
|
Service weight(with battery)
|
kg
|
3310/3360/3410
|
3550/3650/3750/3850
|
3460/3510/3560
|
3700/3800/3900/4000/4100
|
