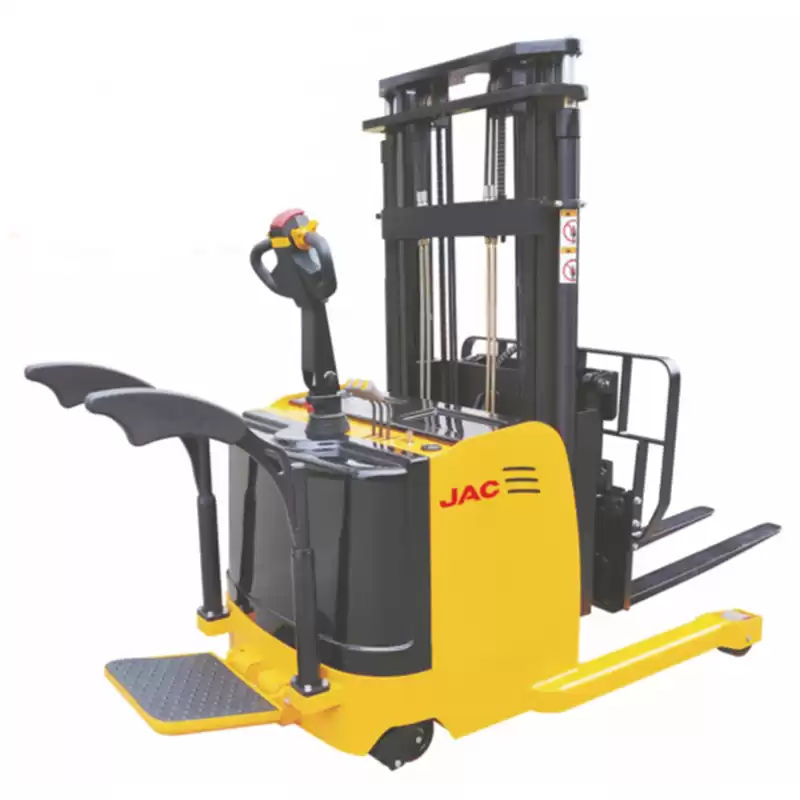

1. Advantages
•Compact structure are specially suit to use in very narrow Aisle warehouse.
•Low gravity, ensure safety operation.
•With disassemble type platform and protection arm.
•Use hydraulic type multi-valve to control l lifting/lowering , fork reach , fork tilting.
•Use Handle to control the truck forward and backward.
•The mast and frame are dividable and exchangeable.
•With small turning radius , with good operation performance.
•Multi function display with BDI and hour meter.
•Single Scissor fork reach distance is 500mm. Option of double reach can reach 1200mm (Option for CQDH15A)
2. Specificaion
|
Model
|
|
CQDH12A-I(single scissor)
|
CQDH15A-I(single scissor)
|
|
Load capacity/rated load
|
Q(kg)
|
1250
|
1500
|
|
Load centre distance
|
C(mm)
|
500
|
500
|
|
Load distance, centre of drive axle to fork
|
X(mm)
|
365(double mast)/353(triple mast)
|
287(double mast)/315(triple mast)
|
|
Tyre size, front
|
mm
|
Φ250×80+150×62
|
Φ250×82+150×62
|
|
Tyre size, rear
|
mm
|
Φ150×82×2
|
Φ125×82×4
|
|
Wheels, number front rear(x=driven wheels)
|
|
1x+2/2
|
1x+2/4
|
|
Forks, tilt forward/back
|
。
|
2/5
|
2/5
|
|
Height, mast lowered
|
h1(mm)
|
1853/2103/2353/2603/2163/2323/2483
|
1869/2119/2369/2619/2179/2341/2499
|
|
Free lift
|
h2(mm)
|
~/~/~/~/1575/1700/1825
|
~/~/~/~/1575/1700/1825
|
|
Max. lift height
|
h3(mm)
|
2500/3000/3500/4000/4500/5000/5500
|
|
Height,mast extended
|
h4(mm)
|
3381/3881/4381/4881/5381/5881/6381
|
3381/3881/4381/4881/5381/5881/6381
|
|
Overall length
|
l1(mm)
|
2327/2327/2327/2327/2340/2340/2340
|
2364/2364/2364/2364/2384/2384/2384
|
|
Length to face of forks
|
l2(mm)
|
1257/1270
|
1289(double mast)/1314(triple mast)
|
|
Overall width
|
b1/b2(mm)
|
1166-1266/950
|
1200-1300/950
|
|
Fork dimensions
|
s/e/l(mm)
|
35/100/1070
|
35/100/1070
|
|
Reach distance
|
l4(mm)
|
500
|
500
|
|
Aisle width for pallets 1000×1200 crosswise
|
Ast(mm)
|
2731¹/2740²
|
2742¹/2767²
|
|
Aisle width for pallets 800×1200 lengthways
|
Ast(mm)
|
2783¹/2794²
|
2806¹/2830²
|
|
Turning radius
|
Wa(mm)
|
1658
|
1613¹/1647²
|
|
Travel speed,laden/unladen
|
Km/h
|
4.5/5 / 4.8/5
|
4.8/5
|
|
Lift speed,laden/unladen
|
m/s
|
0.12/0.15
|
0.095/0.12
|
|
Lowering speed,laden/unladen
|
m/s
|
0.27/0.2
|
0.2/0.15
|
|
Battery voltage,nominal capacity K5
|
V/Ah
|
24/320
|
24/320(460)
|
|
Battery weight
|
kg
|
285
|
285(360)
|
|
Battery dimensions
|
mm
|
812x270x535
|
812x270x535
|
|
Service weight(with battery)
|
kg
|
1800/1850/1900/1900/1950/2000/2050
|
2250/2300/2350/2350/2500/2550/2600
|
