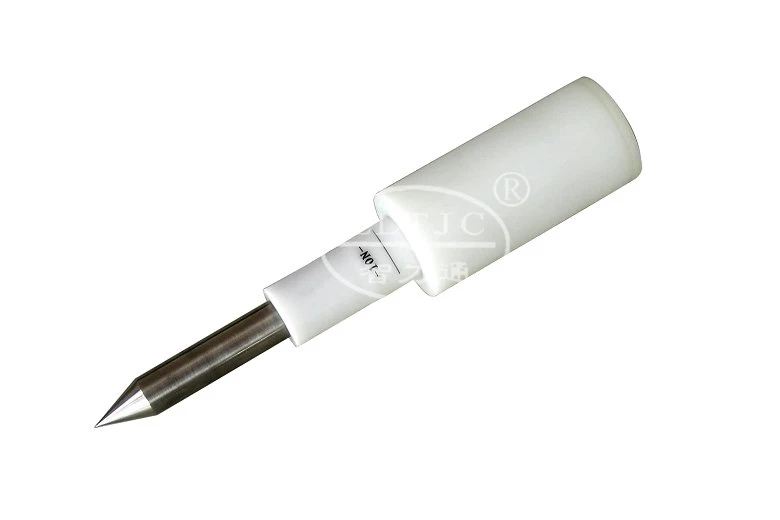

Scratch Pin Probe
Product details: Model ZLT-GC1A
To determine the adherence and the durability of protective coverings on printed circuit board and of insulating layers on accessible hazardous parts or metal parts，according to IEC60950 figure 2K and clause
2.10.8.4,IEC60335-1 clause 21.2.
1 steel stylus as scratch tool, hardened, lower end tapered with a bevel angle of 40°and a radius of 0,25±0,02mm at its tip,with dynamometer 10N±0,5N.
