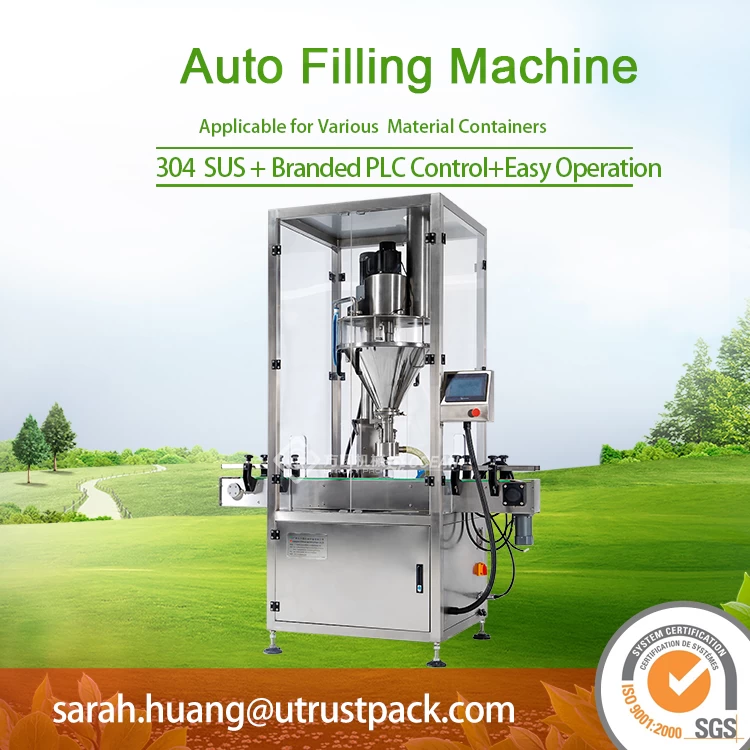

Screw Filler / Powder Filler / Powder Auger
Screw Filler Description
Screw Filler Specification
|
Hopper capacity
|
15L
|
30L
|
50L
|
100L
|
|
Measuring range
|
0.5-200g
|
10-500g
|
50-5000g
|
5000-25000g
|
|
measuring accuracy
|
1%
|
1%
|
0.5%-1%
|
0.5%
|
|
Filling speed
|
30-100
|
30-120
|
30-120
|
5-15
|
|
Filling machinePower
|
1kw
|
1.2kw
|
1.9kw
|
2.75kw
|
|
Weight
|
30kg
|
40kg
|
60kg
|
100kg
|
|
1) Features of the screw filler:
- Suitable for all kinds of bottles, cans of quantitative powder filling and packaging container is not restricted.
- Filling motor is a servo motor imported from Taiwan, low-noise motor.
- Photoelectric sensor induction signal filling material.
- Feedback value can be adjustable, to meet a variety of precision required.
- The filling motor speed can be adjustable, to meet the requirements of various materials.
- All stainless steel, match with feeder enables automatic materials level control.
2) Functions of the screw filler:
- Automatic error correction
- Weight out-of-tolerance alarm
- Product count
|
Screw Filler Details
Screw Filler Application
Applicable to all kinds of powder and mixed powder-like material weighing filling, such as: fertilizers, additives, flour, milk powder, coffee powder, washing powder, solid drink, sugar, condiments (such as spicy fresh), natural flavoring, enzymes, feed powder (powder, superfine powder), mixing quantitative powder-like material filling
Contact Supplier
Production Procedure for the Screw Filler
Our Services on the Sugar Powder Auger Filler
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
|
FAQ
|
|
1, What is your Installation Services for the sugar powder filler?
|
2, What about your Guarantee of quality?
|
|
User manual and videos to support for installing, debugging, operation of the machine, it will indicate you how to use this machine well
|
The Screw Filler / Powder Filler / Powder Auger is 1 year warranty, all machine part can be replaced within 1year if broken (not including man made)
|
|
3, If we have very special request for the production line,could you help me to do the design?
|
4, Can I visit your factory?
|
|
Experienced mechanical designer customized-design provided.
|
Yes, welcome please.
|
|
5, If we have samples of new products, can you help to analysis and design the sugar powder filler?
|
6, Do you have certificate?
|
|
Yes, Our technical department can help to analysis, design and test the new products you offered.
|
Yes, we have some, like CE / SGS.
|
