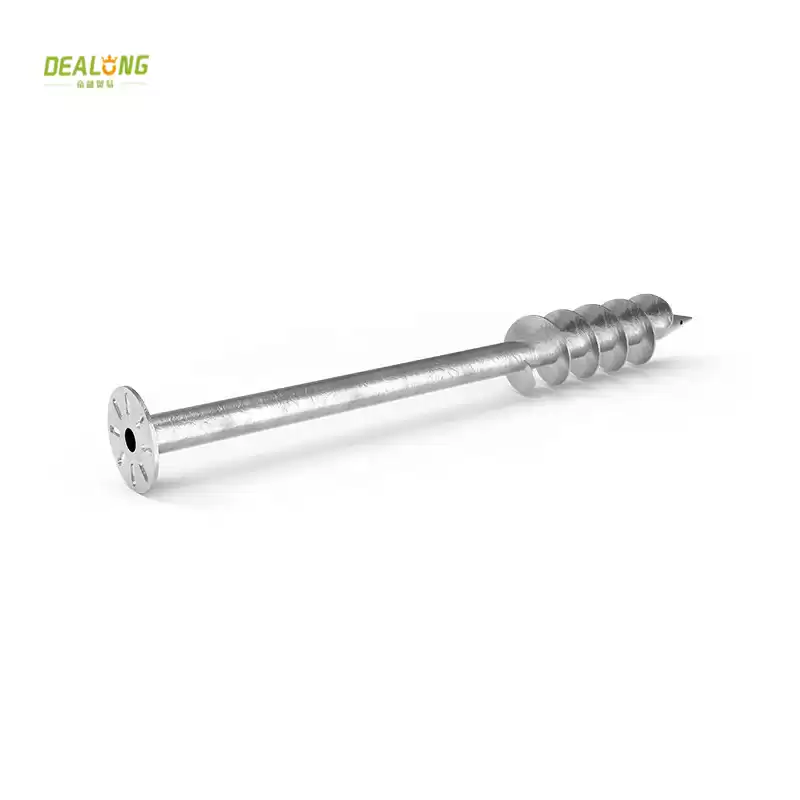

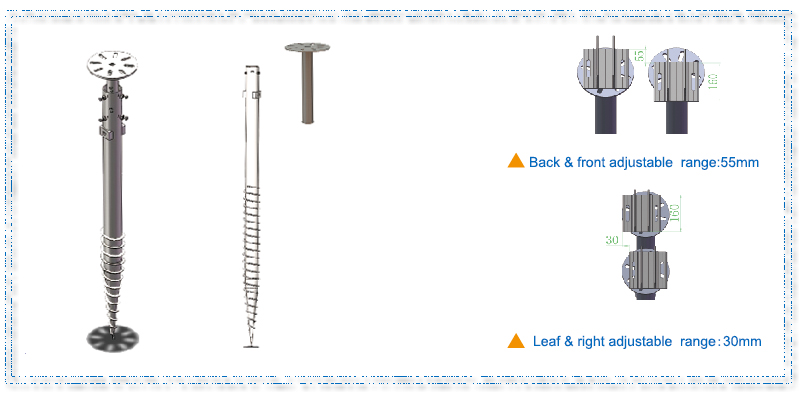

Screw Pile Foundation for Sloar Mounting System

1.Model NO:AL-20201110-04

2.Product Name: Sloar Energy System Helical Screw Ground Earth Anchor

3.Outer diameter: 76mm（OEM / ODM）

4.Length: 1000~3000mm（OEM / ODM）

5.Thickness: 3~3.5mm

6.Flange diameter: 200mm & 220mm（OEM / ODM）

7.Nut diameter(special option): m12*35（OEM / ODM)

8.Application: solar mounting system,fencing system,streetlight, sheds,city parks & containers

9.MOQ:100 pcs


Facebook Twitter Pinterest LinkedIn 分享


Ground Earth Anchors have a very wide range of applications. They can be used in all types of soils - sandy, peaty, clayey soils and high water levels.




Ground screw load capability

Item No.

Dia. of tube(mm)

Dia. of flange(mm)

Thickness of tube(mm)

200mm ground of flange  Compression & pulling force(kn)

Clay soil N value

Sandy soil N value

3

5

10

3

5

10

DL-F76-1600-T3

76

200

3

10.13

16.91

33.82

23.46

33.46

58.46

DL-F76-1800-T3

76

200

3

11.58

19.33

38.66

24.66

34.66

59.66

DL-F76-2000-T3

76

200

3

13.03

21.74

43.49

25.87

35.87

60.87

DL-22F76-1600-T3

76

200

3

10.13

16.91

33.82

23.46

33.46

58.46

DL-22F76-1800-T3

76

200

3

11.58

19.33

38.66

24.66

34.66

59.66

DL-22F76-2000-T3

76

200

3

13.03

21.74

43.49

25.87

35.87

60.87

Notes: The value of the ground screw is the experimental value.
             Installation condition change,the data of ground screw change.

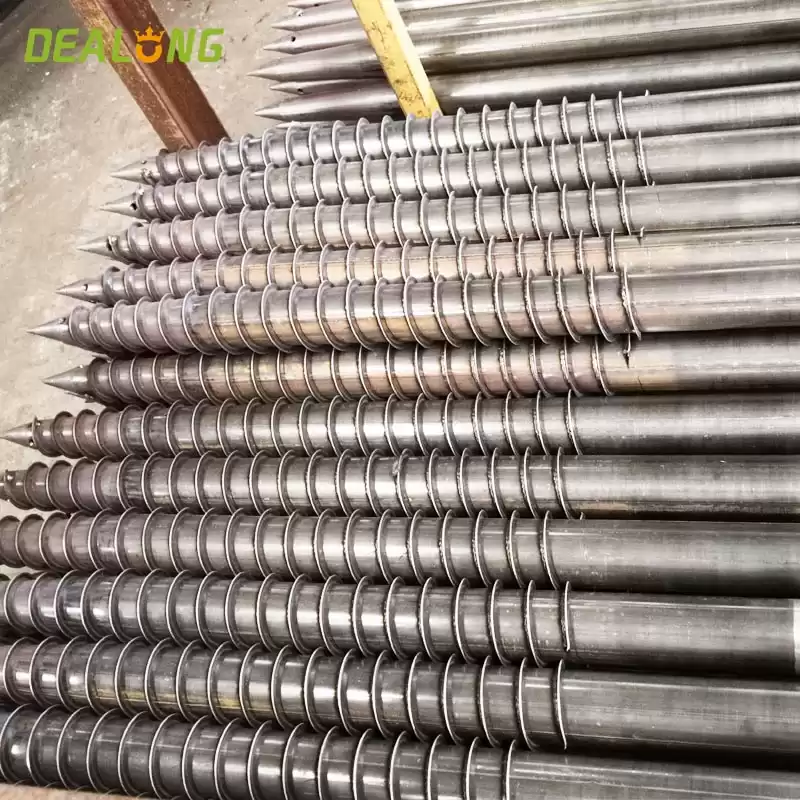

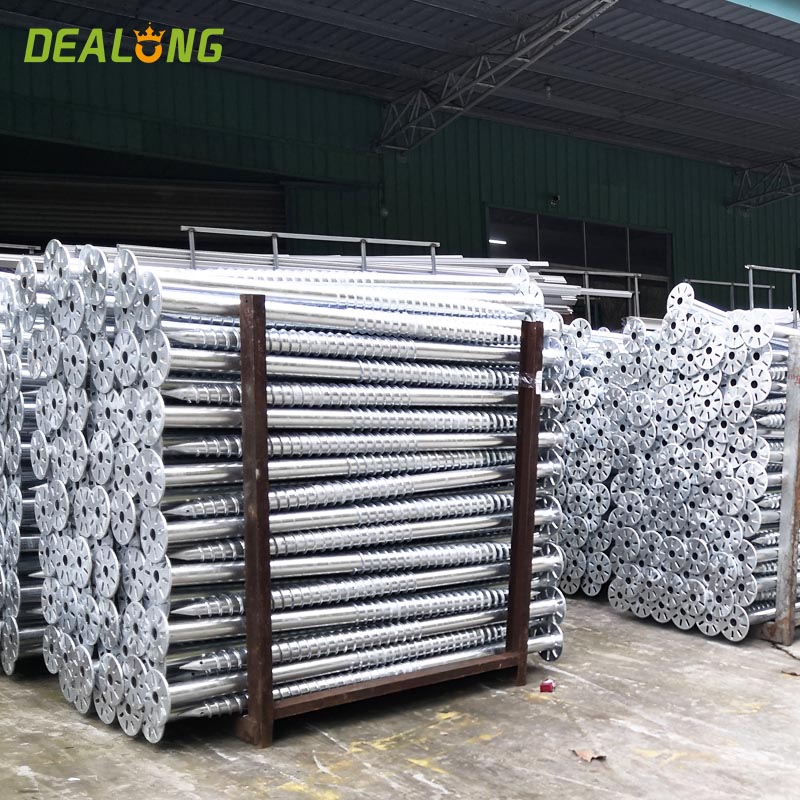

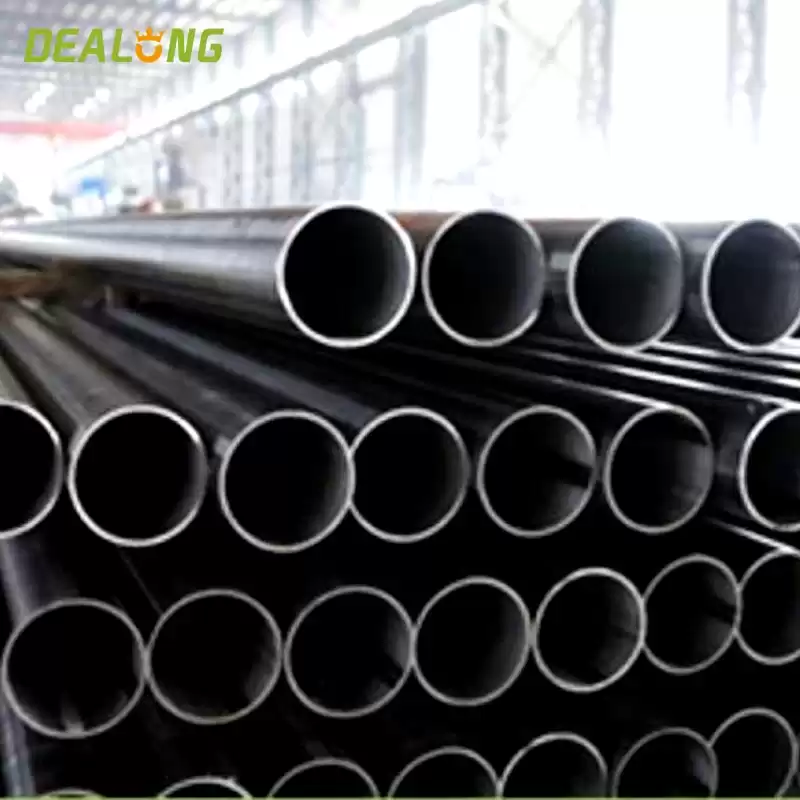

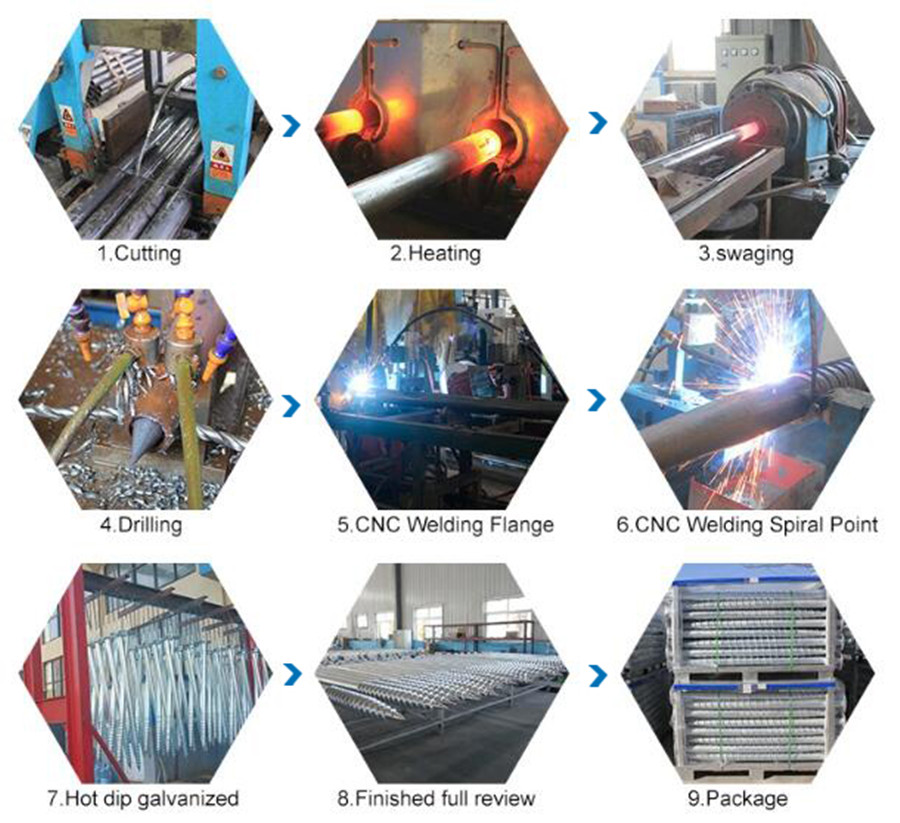

Production process of ground screws

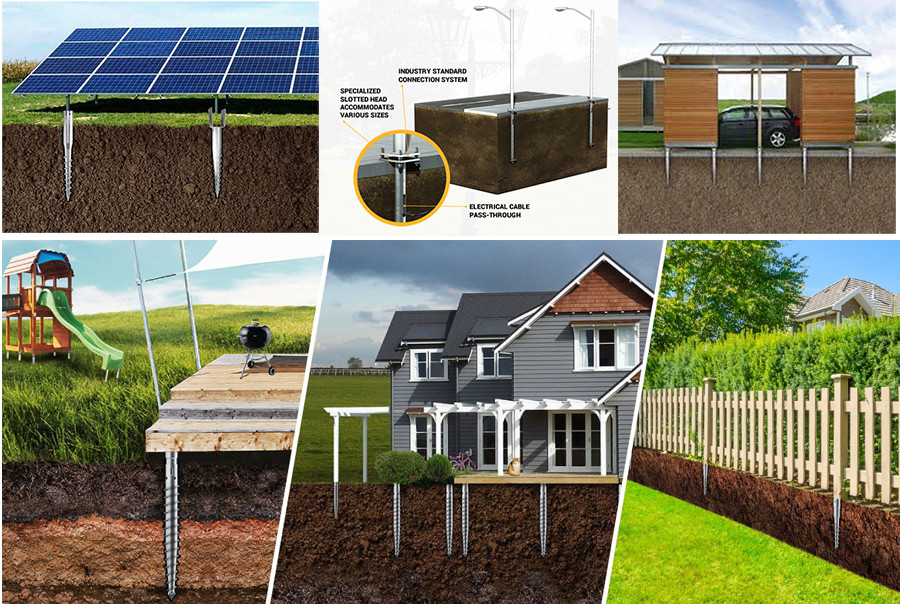

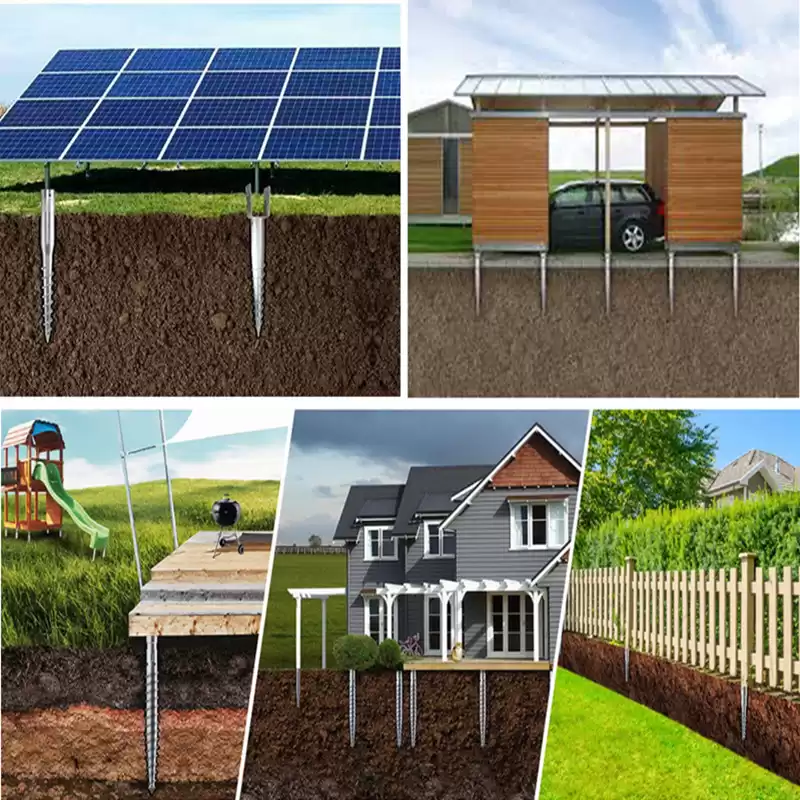

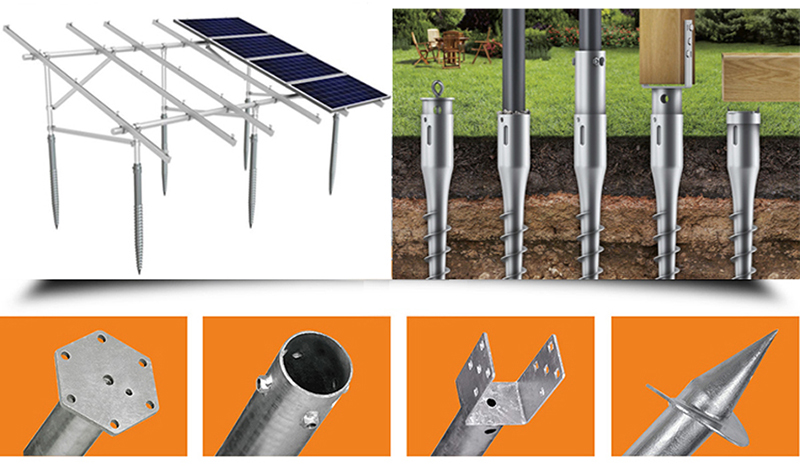

Application of ground screws

Ground screws have a wide variety of application,not only for solar mounting system foundation, but also for light industrial projects, wooden structures to fencing, streetlinghts and storage containers, etc. Install into ground without concrete save your labor and material cost, and its environment friendly and recycle.

Shuangheng Ground screw advantages:
1.Ground screws are faster and cheaper to assembly then normal ground digging.
2.Using ground screws requires no excavation or concrete pouring and raves the landscape and vegetation untouched, they are easy to dismantle and relocate for temporary projects.
3.Many solutions to meet different customers` requirements.
4.Ground screws are environmently friendly.
