Screw Segments-screw elements-turbine mixing screw element ZTE screw segement for Twin Screw Plastic Extruder

Screw Segments-screw elements-turbine mixing screw element-ZTE screw segement for Twin-Screw Plastic Extruder

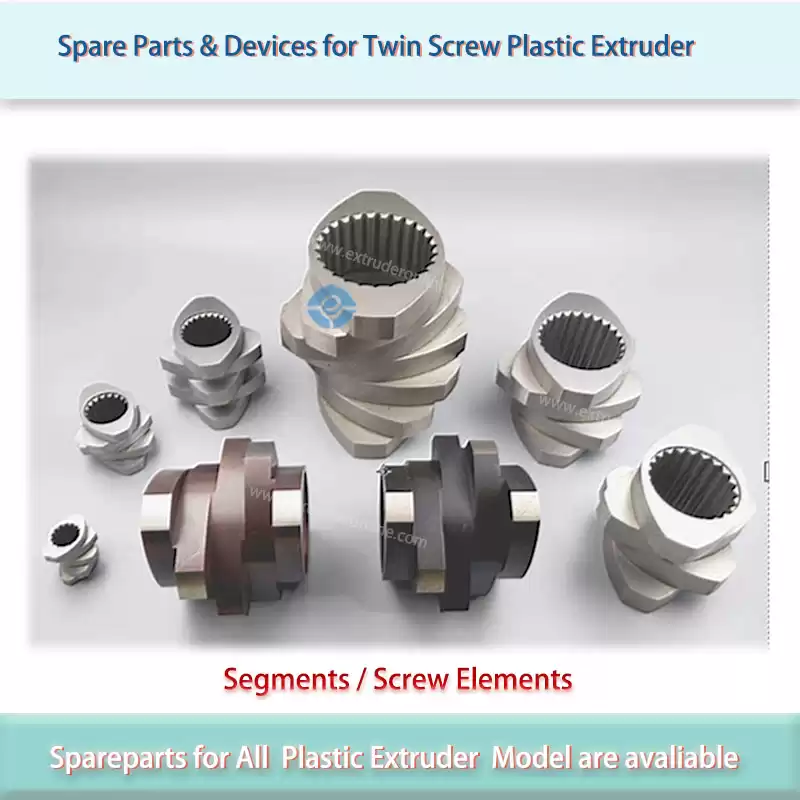

This is one of the Twin-ScrewExtruder Spare parts

HS CODE: 8477.9000



Screw Segments-screw elements-turbine mixing screw element ZTE screw segement for Twin Screw Plastic Extruder

Material: 38CrMoAl ;  W6Mo5Cr4V2; 9Cr19MoV (we have various kinds of the raw material for selction and have a multiple choice.

HS CODE: 8477.9000

Different kinds of Twin screw elements (segments) combined will have functional blending and compounding effects,  which could let the plastic products has good dispersibility and distrbutivity.

The involute of the spline shaft is positioned and connected with the screw elements(segments) by spline housing(splined hub) to meet the requirements of high torque output and high speed performance of the gear box.

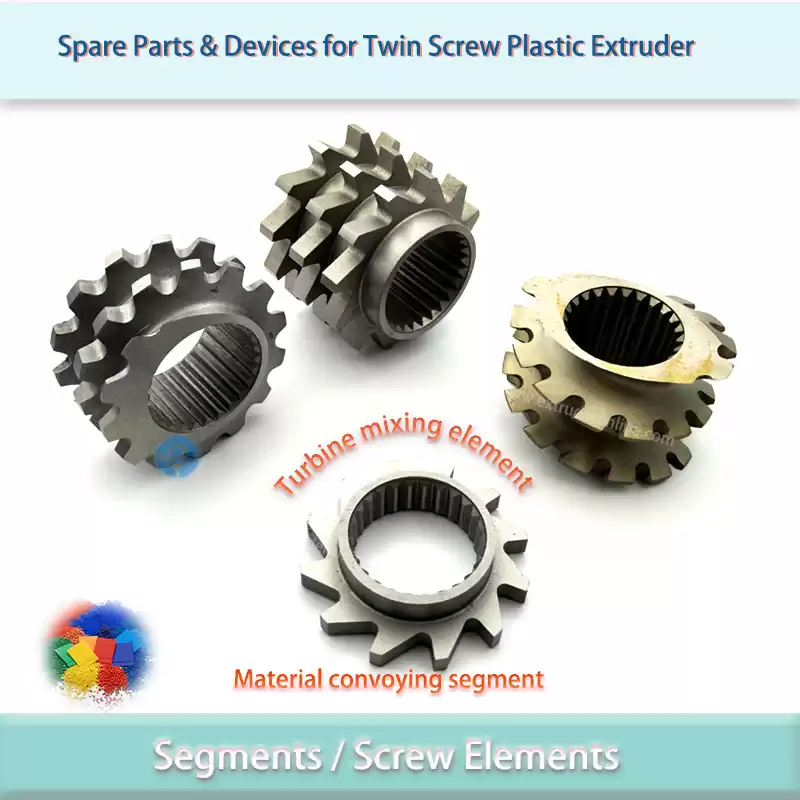

The turbine mixing element, someone called it ZTE segement series for Twin-Screw Plastic Extruder, it's a special segment for mixing the material for some clients' specail technical processing and a professional demand.



turbine mixing element-ZTE segement



Meanwhile, we also can supply you the following and other material made segments, please contact me by +86 139 516 66922 or +86 153 8090 9010, Thanks!

segments

follwing is compounding segments:

kneading block

Following segments is for material convoying:

convoying block



We also present the following Twin screw plastic extruder,

simple technical parameter is as follows:

Technical Parameter:

Model

Screw Dia.
(mm)

 Screw Rotary
Speed (rpm)

 Motor Power
(kw)

 L/D

Output Capacity
(kg/h)

 SHJ-20

 21.7

 600

 4

 32-60

0.5-15

 SHJ-35

 35.6

 500

 11-15

 32-60

15-40

 SHJ-50

 50.5

500

 45/55/75

 32-60

135-225

 SHJ-65

 62.4

500/600

 55-75-90

 32-60

 25-375

 SHJ-75

 71.0

500-600

 90/110/132

 32-60

330-550

 SHJ-95

 93.0

400-500

 250/315

 32-60

750-1250

and Our plastic extrusion machine can process the following materials:

Process

Representative materials

Mixing nature-changing

PE,PP,PS+SBS,PA+EPDM,PP+NBR,EVA +Silicon rubber, etc.

PE,PA,PC,CPE+ABS(alloy),PBT+PET,PP+ PE etc.

Filling nature-changing

PE,PP,EVA, etc.+ Calcium carbonate, talcum powder, titanic powder

ABS,PC,PS, etc.+ aluminum hydroxide, magnesium hydroxide, antimony oxide.

PP,PA,ABS +ferrous powder, sulphuric powder ceramic powder

Functional machine pellets

PP,PA,ABS,PBT, etc+ anti-burning agent and other auxiliary agents: combustion-supporting machine pellets

PE,PP,PS, etc+ starch: de-composing machine pellets

PE+ fog-preventing dipper, stabilizer: dual-prevention machine pellets

PE,EVA=ABS etc+ carbon black: black machine pellets

Colored machine pellets

PE,PP,ABS,AS,PA,EVA,PET +pigment and auxiliary

Intensified glass fibers and carbon fibers

PP,PBT,ABS,AS,PA,PC,POM,PPS,PET etc.+ long fibers, small fibers, carbon fibers, crystals and so on, etc.

Various cables

HDPE,LDPE,LLDPE,MDPE,EVA,PVC,PP, etc. insulating cables,coatings,

PE peroxide silicon alkyl crossing cables: radialization crossing cables

Special materials

EVA heat-melting glue, polyurethane, fluorine rubber, fluorine plastics, PP cigarette filtering material and TPR sole material

Reaction extruding

Poly-amide condensate, poly-amide melting polymerization, poly-amide polythene-adding, poly-carbonate condensate, etc.

Exhausting and volatilization

Polystyrene oxide, high-absorbing resin, chlorine sulphur polyethylene

Powder paint

Polyester, ring oxide, lactide, polyurethane, acrylate
