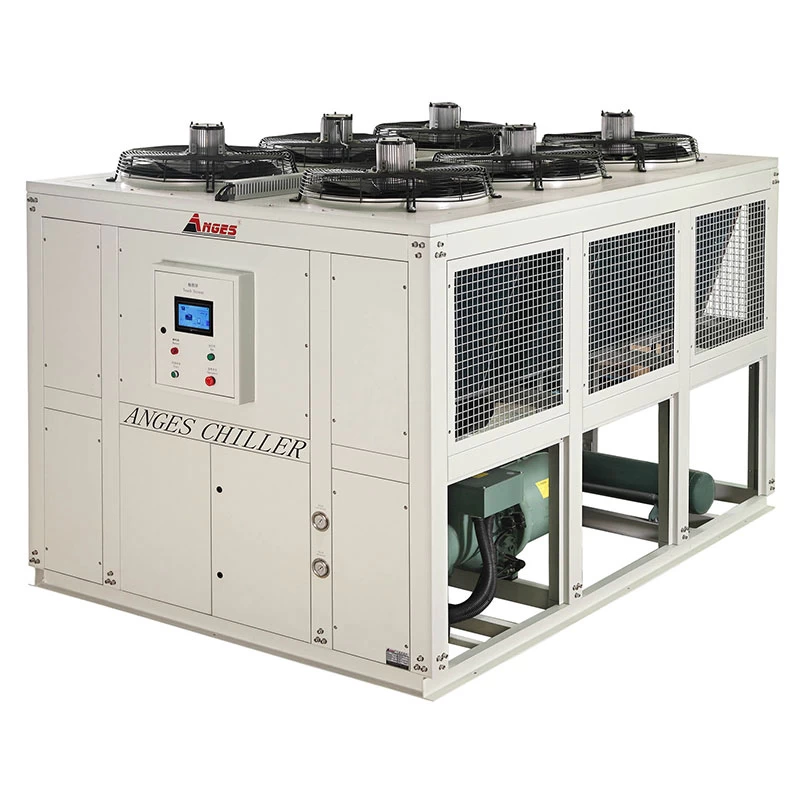

Screw Type Double-compressor Water Chiller Manufacturer AGS-170ADH
Specification
|
Model Item
|
AGS-170ADH
|
|
nominal cooling capacity
|
kcal/h
|
477988
|
|
kw
|
555.8
|
|
input power
|
kw
|
197
|
|
max.runing current
|
A
|
394
|
|
power supply
|
3PH 380V 50HZ
|
|
refrigerant
|
type
|
R22/R407c/R410a/R134a
|
|
kg
|
120
|
|
type of control
|
expansion valve
|
|
compressor
|
type
|
sewi-hermetic screw
|
|
power(kw)
|
76.8*2
|
|
start-up mode
|
Y-△
|
|
capacity control(%)
|
0-25-50-75-100
|
|
evaporator
|
type
|
Shell and tube
|
|
chilled water flow(m3/h)
|
95.6
|
|
inlet and outlet pipe caliber(inch)
|
6
|
|
condenser
|
type
|
air cooled high-efficient inner threaded copper-tubing aluminum fin type
|
|
fan
|
type(m3/h)
|
low noise outer rotor
|
|
power(kw)
|
27
|
|
cooling air flow(m3/h)
|
175000
|
|
safety protection
|
compressor overheating protection, over-current protection, high and low pressure,over-temperature protection, flow switch, protection,phase sequence or missing phase protection, exhaust overheating protection
|
|
weight
|
kg
|
4450
|
|
dimension
|
mm
|
3150*4200*2200
|
Note: 1. Nominal cooling capacity is according to:
Inlet chilled fluid temperature: 17℃; Outlet chilled fluid temperature: 12℃
Inlet cooling air temperature: 30℃; Outlet cooling air temperature: 35℃
2.Working Range:
The temperature range of chilled fluid is from 5℃ to 30℃
Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃
Temperature difference between inlet and outlet cooling air is from 8℃ to 10℃
We reserve the right to modify the above dimensions or parameters without further notice.
