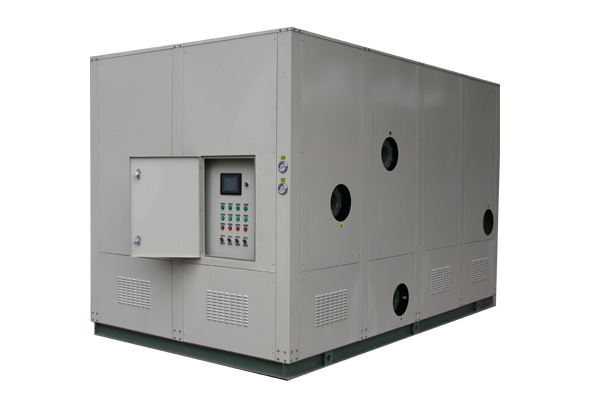

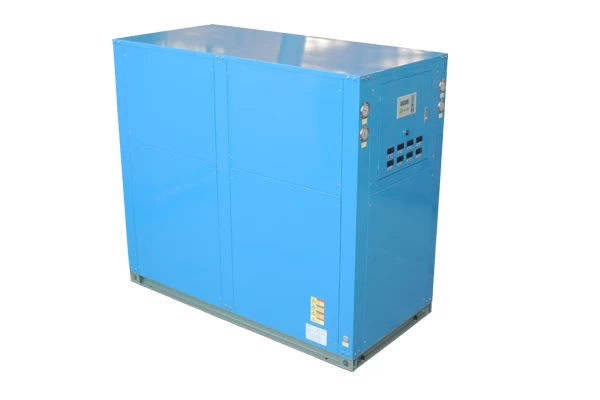

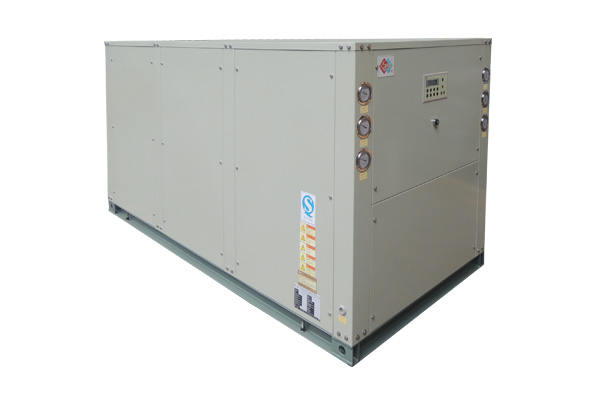

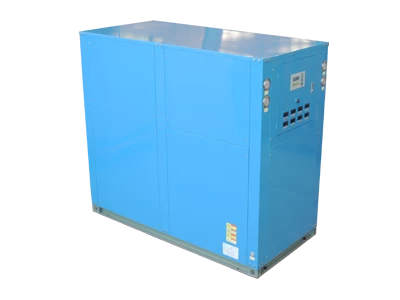

Ⅰ）Water-cooled box type industrial chiller profile:
The water-cooled box type industrial chiller has a box-type structure with beautiful appearance and low noise. The unit is equipped with a water tank and a circulating water pump according to the cooling capacity, which is convenient to install and simple to maintain.
Cooling capacity range: 21500 kcal / hour - 112500 kcal / hour (10HP-45HP)
Chilled water temperature adjustment range: 5 ~ 20 °C
Energy efficiency rating: 4-2
Application areas: plastics, electroplating, electronics, chemicals, pharmaceuticals, food processing and other industries.
Ⅱ）Water-cooled box type industrial chiller features:
(1) It is processed and manufactured by famous brand compressors and electronic control components. It is equipped with high-efficiency shell-and-tube condensers and evaporators. It has sufficient cooling capacity, high efficiency and easy cleaning and maintenance.
(2), the unit is controlled by microcomputer, equipped with a variety of protection functions, can accurately control the operating conditions, high reliability, can play a big role in the actual working conditions.
(3) It is possible to specially customize a new type of unit supporting multiple compressors according to actual needs, which is more energy-saving and durable than general split-type air conditioners.
(4) Water-cooled industrial chillers are all closed enclosures with beautiful appearance and can be placed in air-conditioning sites such as offices or factories.
Ⅲ) Water-cooled box industrial chiller parameters:
20STB-Model:
|
10WCS3
|
12.5WCS3
|
15WCS3
|
20WCD3
|
25WCD3
|
30WCD3
|
40WCT3
|
45WCT3
|
Cooling capacity:1000Kcal/h
|
25.6
|
29.8
|
37.8
|
51.2
|
59.5
|
75
|
89.3
|
112.5
|
|
Cooling capacity: KW
|
29.8
|
34.6
|
43.6
|
59.6
|
69.2
|
87.2
|
103.8
|
130.8
|
|
Input power (KW)
|
6.3
|
7.2
|
9.6
|
12.6
|
14.4
|
19.2
|
21.6
|
28.8
|
Compressor input power × number (KW)
|
6.3x1
|
7.2 × 1
|
9.6 × 1
|
6.3 × 2
|
7.2 × 2
|
9.6 × 2
|
7.2 × 3
|
9.6 × 3
|
Unit operating current (A)
|
14
|
15.1
|
20
|
28
|
30.2
|
40
|
45.3
|
60
|
Power supply
|
Φ3-380V-50Hz
|
Φ3-380V-50Hz
|
Φ3-380V-50Hz
|
Φ3-380V-50Hz
|
Φ3-380V-50Hz
|
Φ3-380V-50Hz
|
Φ3-380V-50Hz
|
Φ3-380V-50Hz
|
|
Refrigeration circuit
|
1
|
1
|
1
|
2
|
2
|
2
|
3
|
3
|
Condenser Type:
|
Shell and Tube Type
|
Shell and Tube
|
Shell and Tube Type
|
Shell and Tube Type
|
Shell and Tube Type
|
Shell and Tube Type
|
Shell and Tube Type
|
Shell and Tube Type
|
Water side pressure (Mpa)
|
1
|
1
|
1
|
1
|
1
|
1
|
1
|
1
|
Evaporator inlet and outlet pipe diameter (inch)
|
1-1/2''
|
2''
|
2''
|
2''
|
2''
|
2-1/2''
|
2-1/2''
|
2-1/2''
|
Evaporator water pressure drop (kPa
|
23
|
28
|
30
|
28
|
28
|
32
|
32
|
31
|
Machine weight (Kg)
|
360
|
400
|
490
|
590
|
640
|
810
|
980
|
|
Note: 1. Nominal cooling capacity reference: evaporator inlet and outlet water
temperature 12 °C / 7 °C, condenser inlet and outlet water temperature 30 ° C, 35 ° C, fouling coefficient 0.088 m2. ° C / kw;
2. Chilledd water temperature range: 5-20 ° C;
Ⅳ)Products application -Water-cooled box type industrial chiller
H’stars has done successful solutions to energy saving for Hotel hot water system by applying our heat recovery and hot water units. Industrial cooling chiller for plastic extruder and injection machine is one of our major chiller business. Our industrial chiller with built-in single or double circulating water pumps and insulated water tank are widely applied in industries for cooling of Laser generator, Welding electrodes, Cutting machines, Electric spark machine, Extrusion process, Hydraulic System, Electroplating, Ultrasonic Cleaning, Ion Plating film, Electronic facility, Electrical appliance components, Compressed Gas Dehumidification, Dairy and Beverage Cooling processing, Pharmaceutical and Biological product, Medical equipment, Glass Coating, Tempered Glass and Cultivation Sea Food.
Ⅴ) Company Information
HStars(Guangzhou) Refrigerating equipment Manufacturing Co.,Ltd. Was established in 1992,is a foreign-invested enterprise, is specializing in cooling towner ,Heating Ventilation Air conditioning and cooling,industrial cooling and heating equipment manufacturing ,with all kinds of special equipment designe technology and manufacturing capabilities.In the course of more than 20 years of development, H.stars group has always been firmly convinced that quality is the first and win by quality, has obtained relevant certification in the refrigeration industry at home and abroad.Since its inception, H.stars group has been awarded many patents in the field of air conditioning refrigeration through a number of technical appraisals, and is the first enterprise to win the patent of heat recovery technology.
Ⅵ) FAQ
|
Places of origin
|
Guangzhou ,Guangdong, China
|
|
Production
Manufactuer
Lead-Time
|
Usually 35days after order details confirmed and deposit received;
|
|
Stock available in factory: 3-5days after full payment received;
|
|
Payment Term
|
We accept T/T,WESTERN UNION, L/C at sight etc.
|
|
(T/T: 30% deposit in advance, 70% balance before delivery.)
|
|
Packing
|
Standard export packing / According to customer's requirement.
Carton with Batten Solid
|
|
Transportation
|
1) EXW
|
|
2) Sea Shipping
|
|
FOB Guang Zhou Port: Huang Pu Port
|
|
CIF CY To CY Port: Huang Pu Port
|
|
3).Express:
|
|
It will always take 5-7 working days.
|
|
4).Air shipping.
|
|
Certification
|
ISO9001,SGS,CE
|
|
Advantages
|
Popular OEM heat exchanger for world big brand fitness company , durable, high eyes appreciate, unique
|
|
Business range
|
Italy, German, France, Russia more than 10 European Countries ,all middle east countries, India, Malaysia , more than 10 Asian countries and brazil and so on, total more than 40 Countries , etc.
|
|
Places of origin
|
Guangzhou ,Guangdong, China
|
|
Certification
|
ISO9001, CE
|
