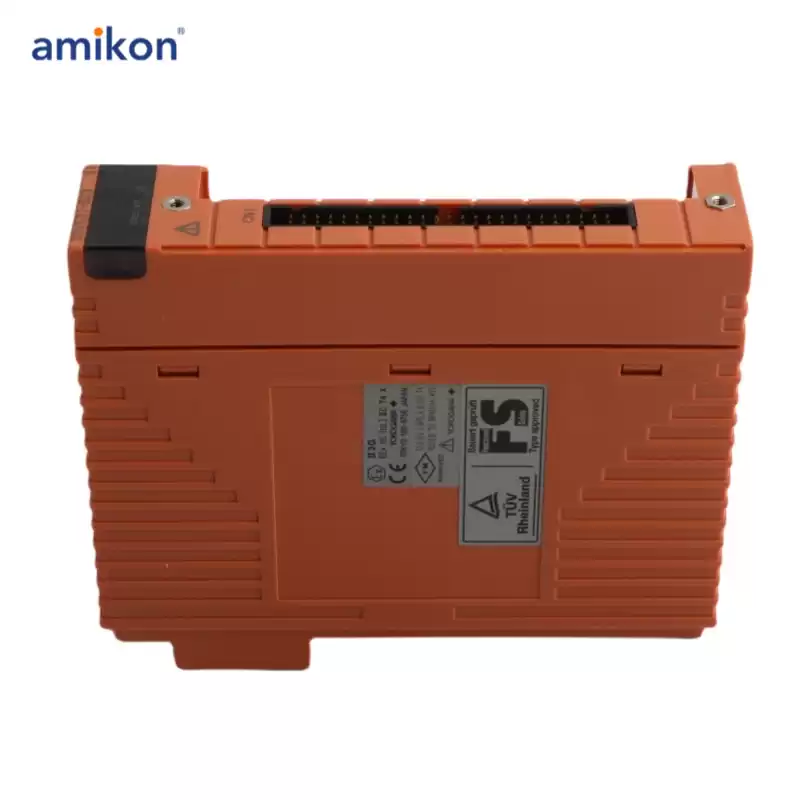

SDV144-S33/PRP S4 YOKOGAWA Digital Input Module

Description

Model

SDV144-S33/PRP S4

Digital Input Module (16-channel, 24 V DC, module isolation)

Suffix Codes

-S

Standard type

5

For pressure clamp terminal block or MIL cable with no explosion protection

6

With signal cable interface adapter and no explosion protection (*1)

E

For pressure clamp terminal block or MIL cable with explosion protection

F

With signal cable interface adapter and explosion protection (*1)

3

With ISA Standard G3 and temperature (-20 to 70 °C)

C

With ISA Standard G3 and high-density installation (-20 to 70 ºC)

Option Codes

/B4S00

With pressure clamp terminal block for digital input (without surge absorber) [Model: STB4S-00]

/B4S10

With pressure clamp terminal block for digital input (with surge absorber) [Model: STB4S-10]

/B4D00

With dual-redundant pressure clamp terminal block for digital input (without surge absorber) (*2) [Model: STB4D-00]

/B4D10

With dual-redundant pressure clamp terminal block for digital input (with surge absorber) (*2) [Model: STB4D-10]

/PRP

With prevention pin of false insertion (*3)

/CCC01

With connector cover for MIL cable (for flat ribbon cable) [Model: SCCC01]

/CCC02

With connector cover for MIL cable (for discrete wire) [Model: SCCC02]
