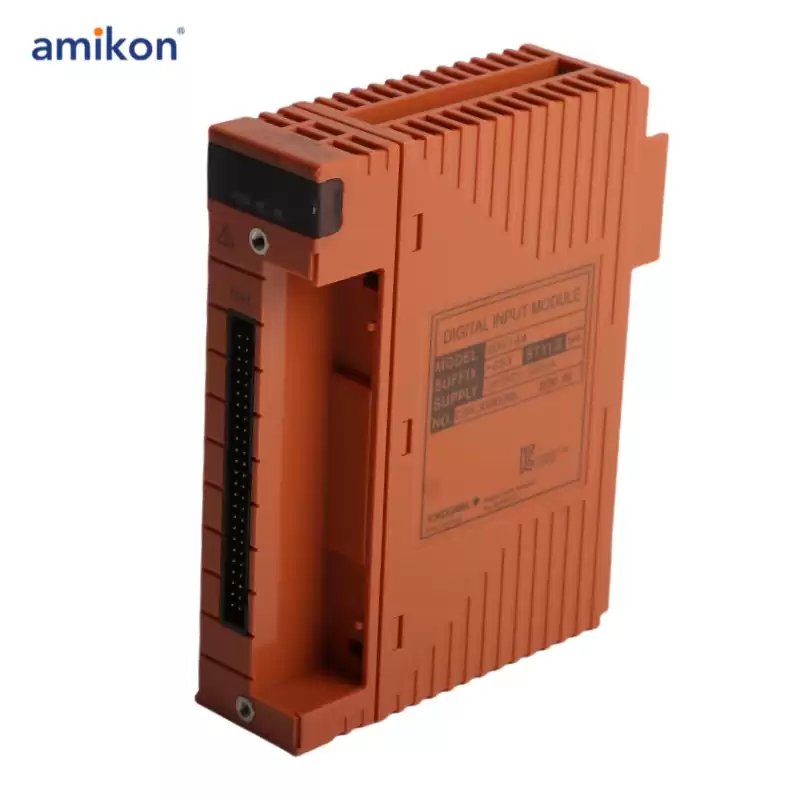

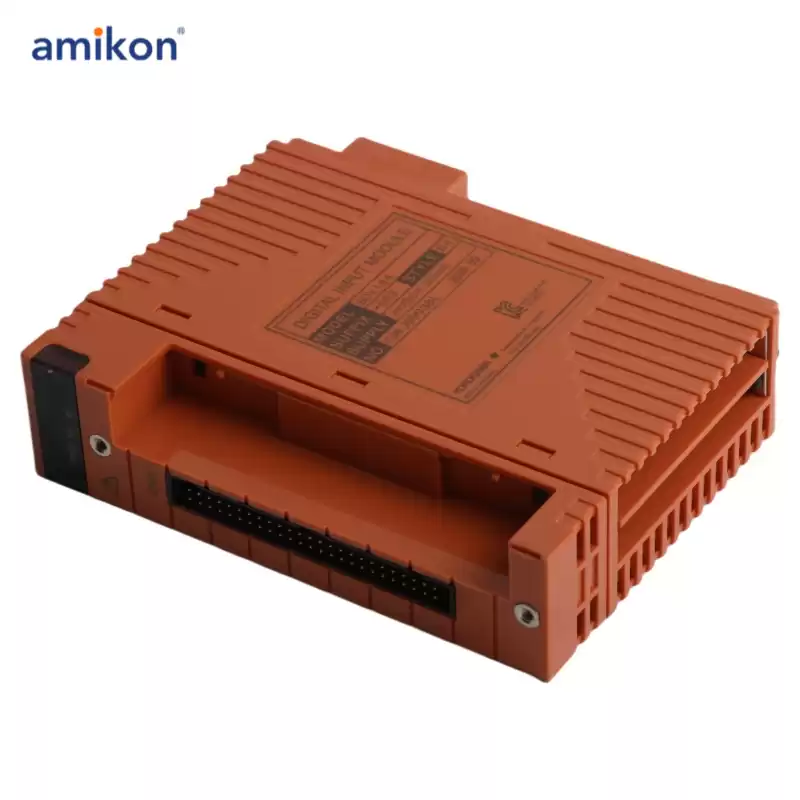

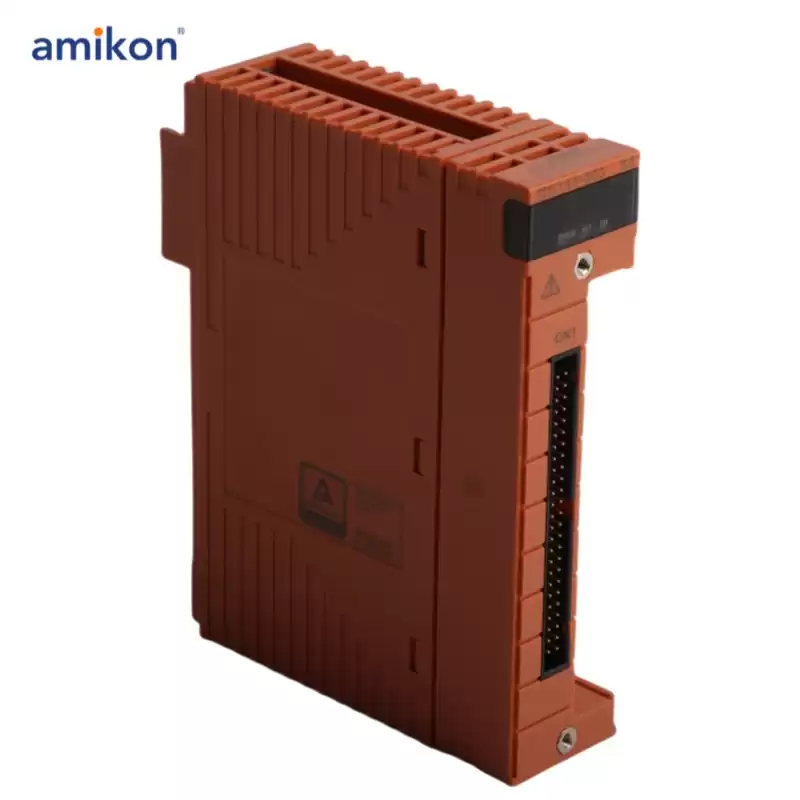

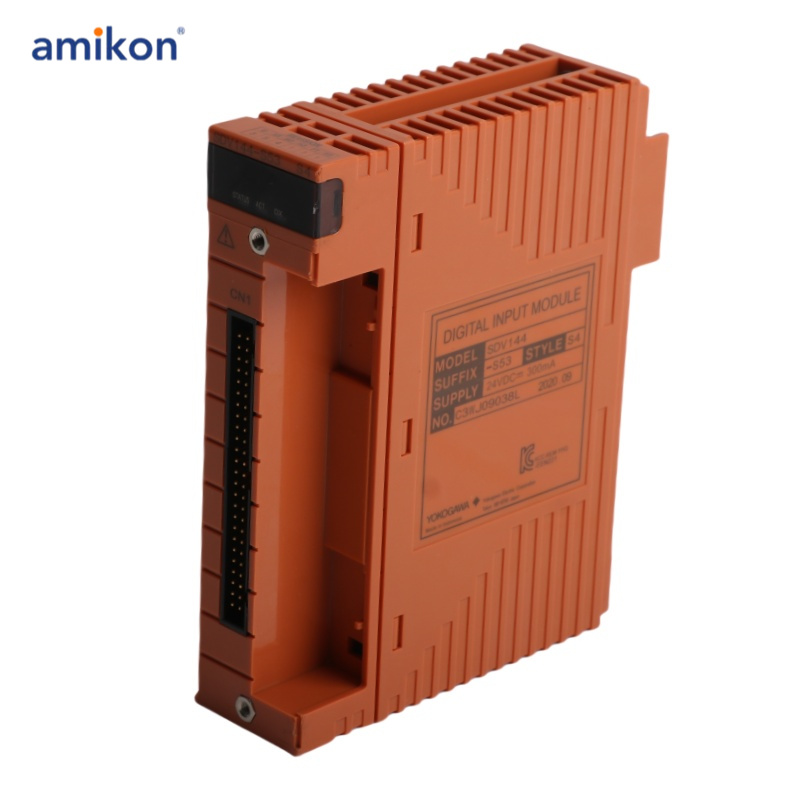

SDV144-SE3 S4 YOKOGAWA DIGITAL INPUT MODULE
Brand new and original sealed//Same Day Shipment
- Dimensions7.6 cm x 12.7 cm x 12.7 cm
- Weight0.7kg
- Country of OriginJapan
- Brand/ManufaturerYokogawa
- Warranty PeriodOne Year Warranty
- Payment Term100% Advance Payment T/T Bank Wire Transfer
|
Category |
Specification |
|
Model |
SDV144-SE3 S4 |
|
Number of Inputs |
16-channel, module isolation (*3) |
|
Input Signal |
No-voltage contact |
|
Input Current |
6 mA ± 20 % (External power supply, 24 V DC at 0 Ωinput) |
|
Contact Rating |
24 V DC +20 % / -10 % (*4), 10 mA or greater |
|
External Power Supply |
24 V DC +20 % / -10 % (*3) (*4) |
|
Current Capacity |
200 mA |
|
Instantaneous Maximum Permissible Input Voltage |
30.0 V DC |
|
Input Response Time |
40 ms maximum |
|
Withstand Voltage |
2 kV AC between input signal and system for 1 minute, 16-input line collectively connected (*5) |
|
Current Consumption (5 V DC) |
290 mA maximum |
|
Current Consumption (24 V DC) |
140 mA maximum |
