Item
|
Specifications
|
|
Model
|

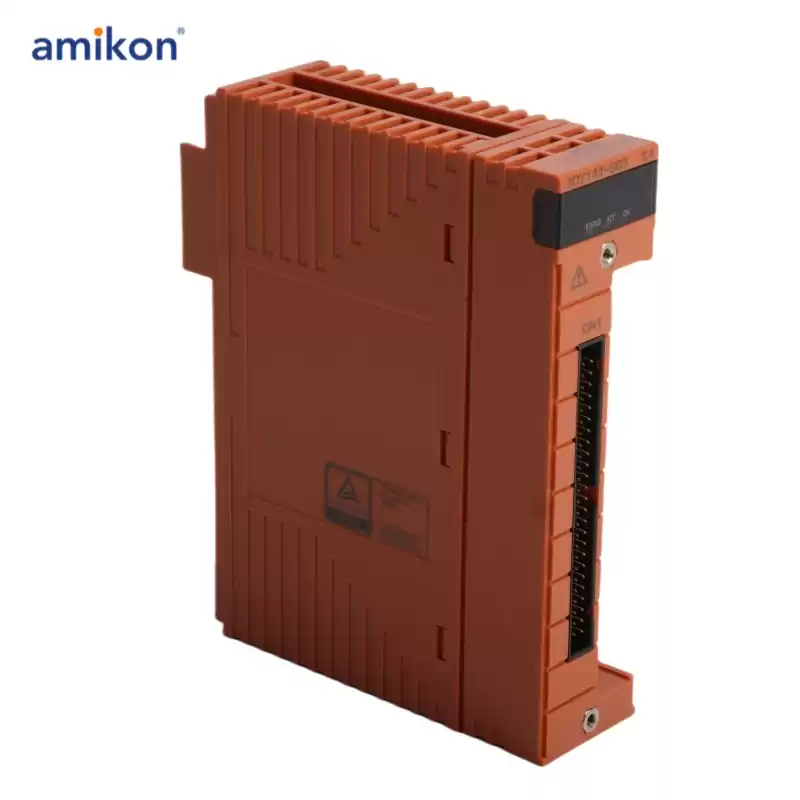

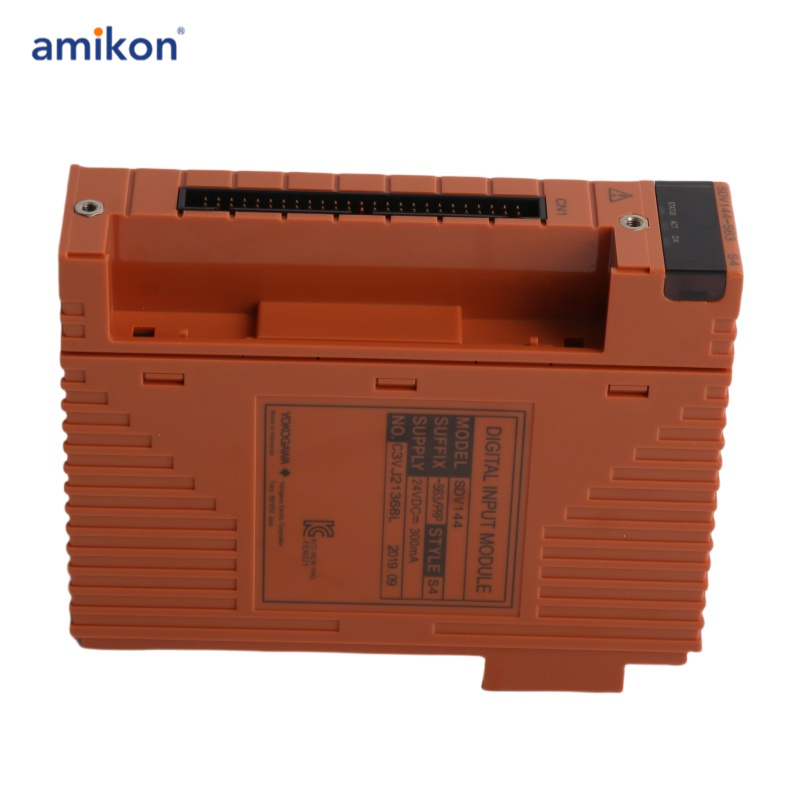

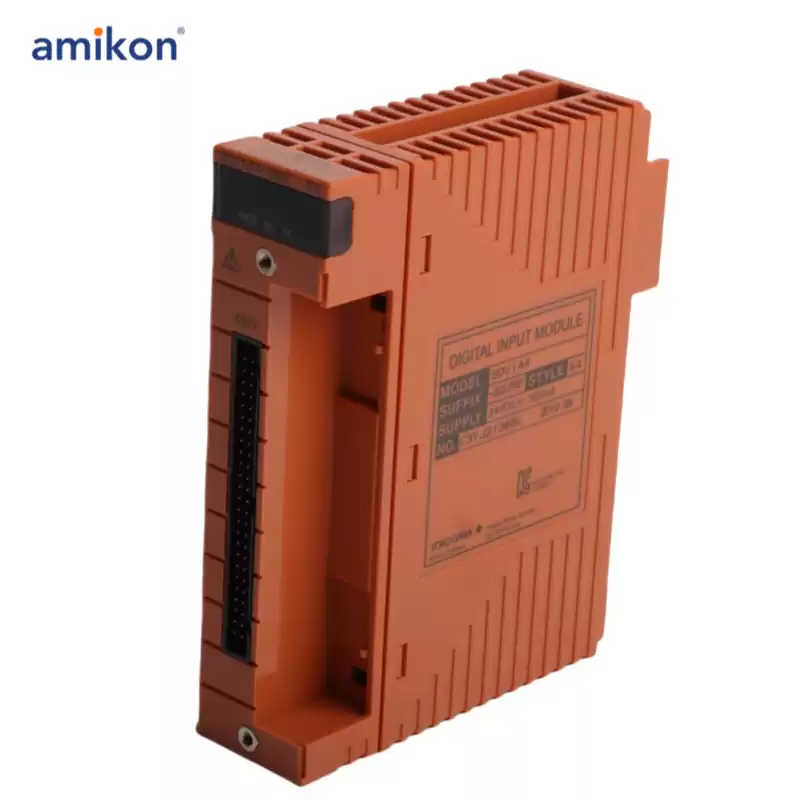

SDV144-SE3
|
|
Number of inputs
|
16-channel, module isolation (*3)
|
|
Input signal
|
No-voltage contact<br>ON: 1 kΩ maximum<br>OFF: 100 kΩ minimum
|
|
Input current
|
6 mA ± 20%<br>(External power supply: 24 V DC at 0 input)
|
|
Contact rating
|
24 V DC ±20% / -10% (*4), 10 mA or greater
|
|
External power supply
|
24 V DC ±20% / -10% (*3) (*4)<br>Current capacity: 200 mA
|
|
Instantaneous maximum permissible input voltage
|
30.0 V DC
|
|
Input response time
|
40 ms maximum
|
|
Withstand voltage (*1) (*2)
|
2 kV AC between input signal and system for 1 minute, 16-input line collectively connected (*5)
|
|
Current consumption
|
290 mA maximum (5 V DC)<br>140 mA maximum (24 V DC)
|
|
Weight
|
Approx. 0.36 kg (For pressure clamp terminal block or MIL cable)<br>Approx. 0.41 kg (With signal cable interface adapter)
|
|
External connection
|
Pressure clamp terminal<br>MIL cable<br>Dedicated signal cable (AKB331)
|
