Category
|
Specification
|
|
Model
|

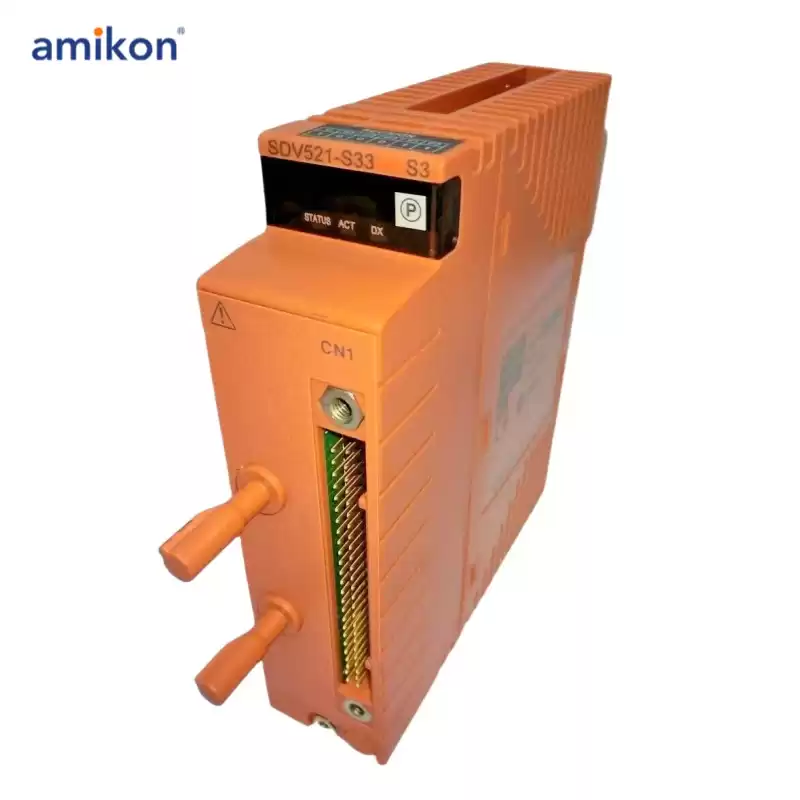

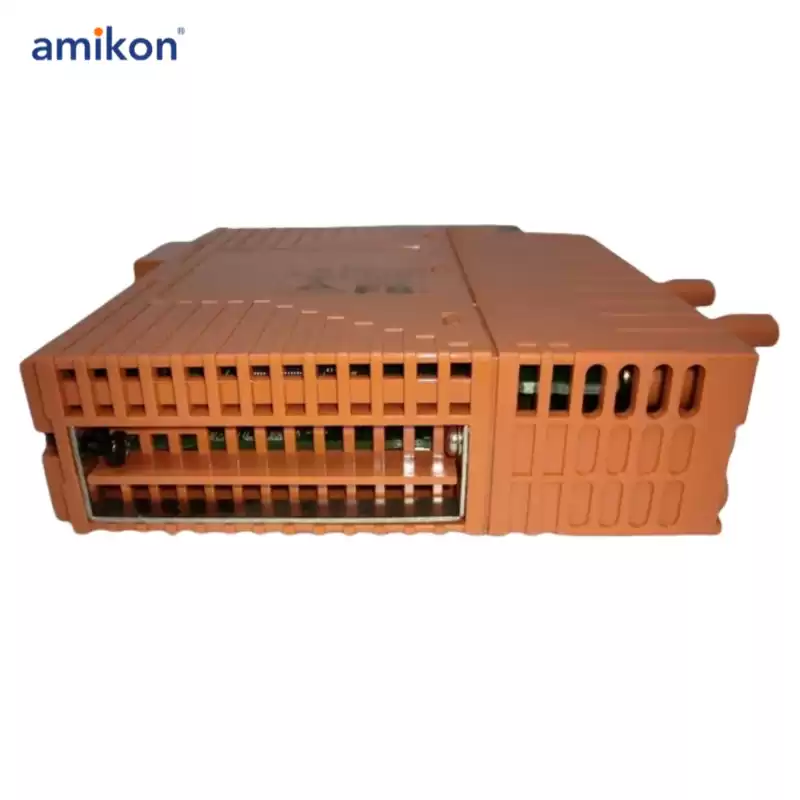

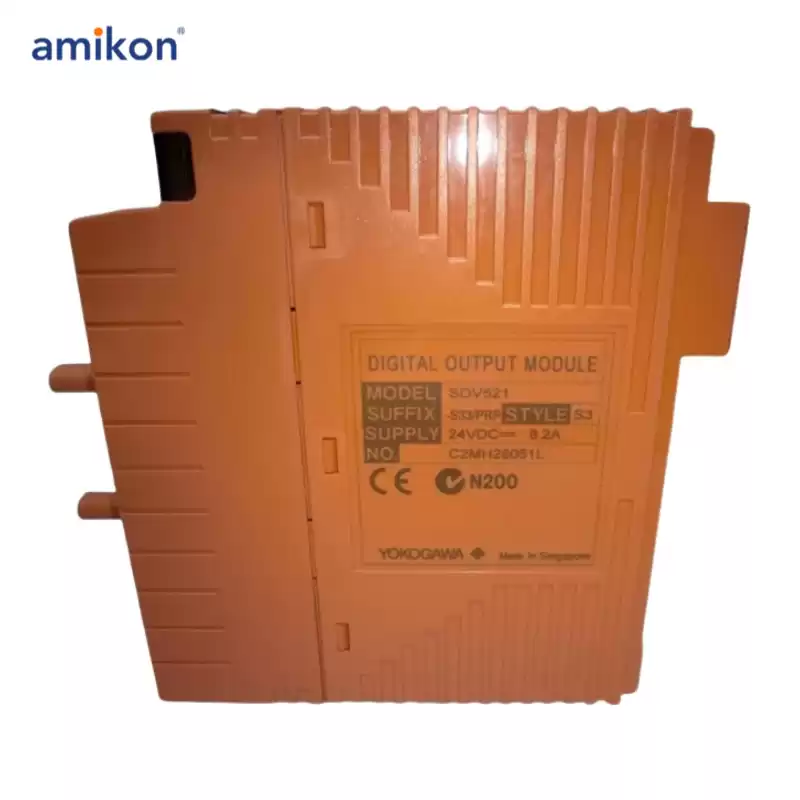

SDV521-S33 S2
|
|
Number of Outputs
|
4-channel, module isolation (*4)
|
|
Output Voltage
|
24 V DC
|
|
Output Voltage Drop
|
1 V maximum
|
|
External Power Supply Rating
|
24 V DC, 10 A minimum
|
|
External Power Supply
|
24 V DC +20 %/–10 %
|
|
Current Capacity
|
8.2 A (*1)
|
|
Maximum Leak Current at Output Off Status
|
1.6 mA
|
|
Output Format
|
Current source
|
|
Maximum Load Current
|
2 A/output line (8 A in total output lines) (*2) (*4)
|
|
Minimum Load Current
|
100 mA
|
|
Load Resistance Range
|
12 to
|
|
Output Response Time
|
30 ms maximum
|
|
Withstand Voltage
|
2 kV AC, 4-point input lines collectively
|
|
Weight
|
0.36 kg
|
|
External Connection
|
Dedicated
|
1: This is the maximum rated load current in the case of a filament lamp. The inrush current of a filament lamp is acceptable up to 10 times of this value.
2: These voltages show the case using the field power supply floating. When the field power supply is grounded, the system (functional) ground is connected to the field ground, which is not isolated. For the higher noise immunity, floating the field power supply is recommended.
3: When the withstanding voltage of the field power supply between the secondary side and the ground is lower than the value shown in the table above, these voltages are adopted as the withstanding voltage of the field power supply.
4: Number of output channels which a user can use and maximum load current are restricted in case of SDV521. Refer to “ProSafe-RS Outline of I/O Modules (for FIO)” (GS 32P06K60-01EN).
5: Required capacity when all the channels are loaded with rated load. Please use external source with the capacity most appropriate for load to be applied.(When it is probable to get inrush load, use power source with the inrush current added.)
6: Resistance value of the load for both ON and OFF state, including the field wiring resistance
