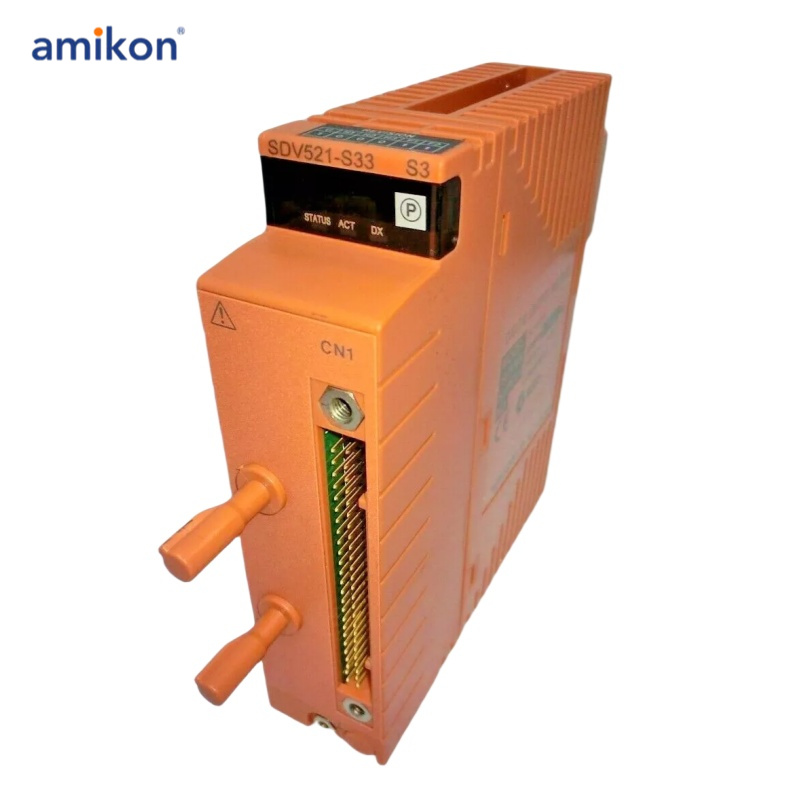

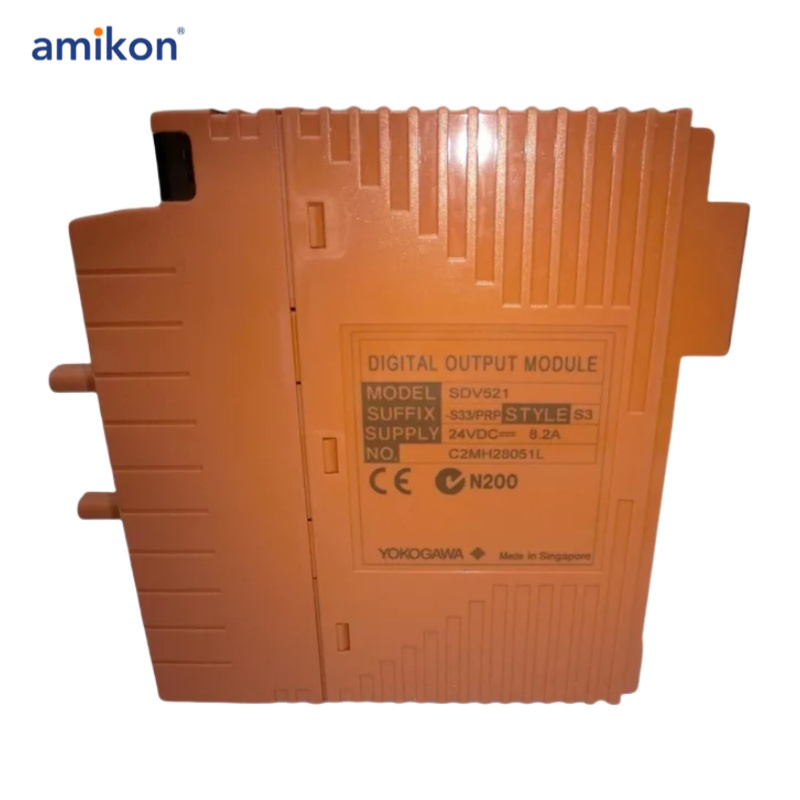

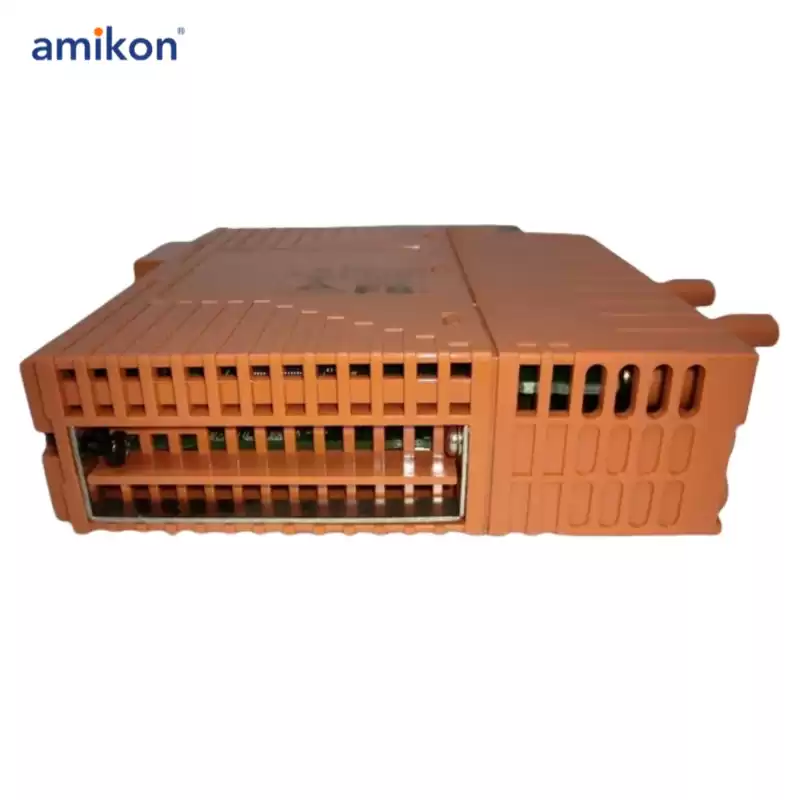

SDV521-S33/PRP S3 Yokogawa Digital Output unit

Category

Specification

Model

SDV521-S33/PRP S3

Number of Outputs

4-channel, module isolation (*4)

Output Voltage

24 V DC

Output Voltage Drop

1 V maximum

External Power Supply Rating

24 V DC, 10 A minimum

External Power Supply

24 V DC +20 %/–10 %

Current Capacity

8.2 A (*5)

Maximum Leak Current (Output Off Status)

1.6 mA

Output Format

Current source

Maximum Load Current

2 A/output line (8 A in total output lines) (*4)

Minimum Load Current

100 mA

Load Resistance Range

12 to 240 Ω (*6)

*Maximum Lamp Load (1)

1 A/output line

Output Response Time

30 ms maximum

Weight

Approx. 0.36 kg

External Connection

Dedicated signal cable (AKB651)
