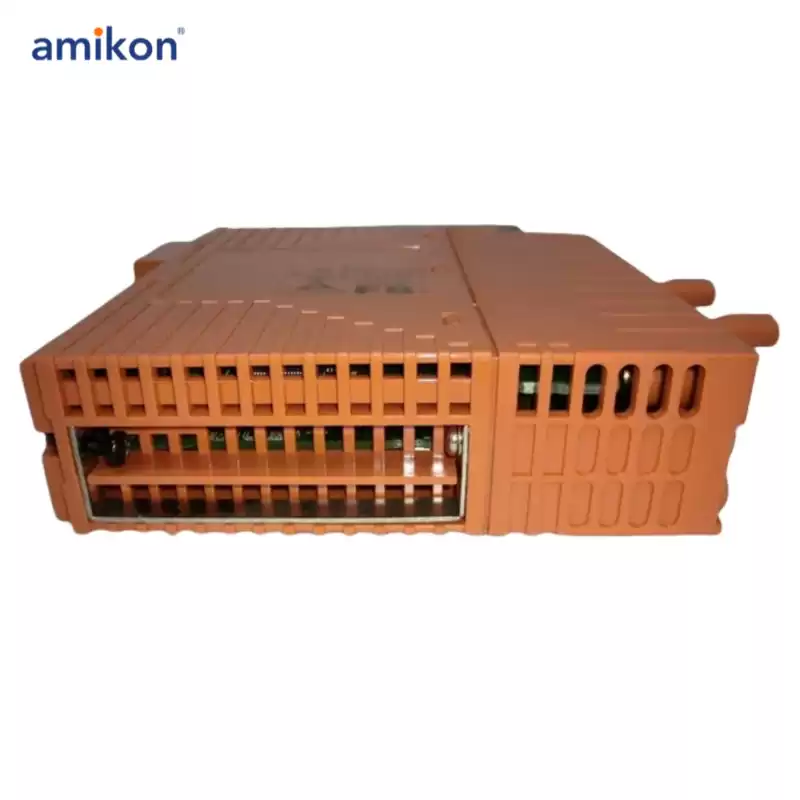

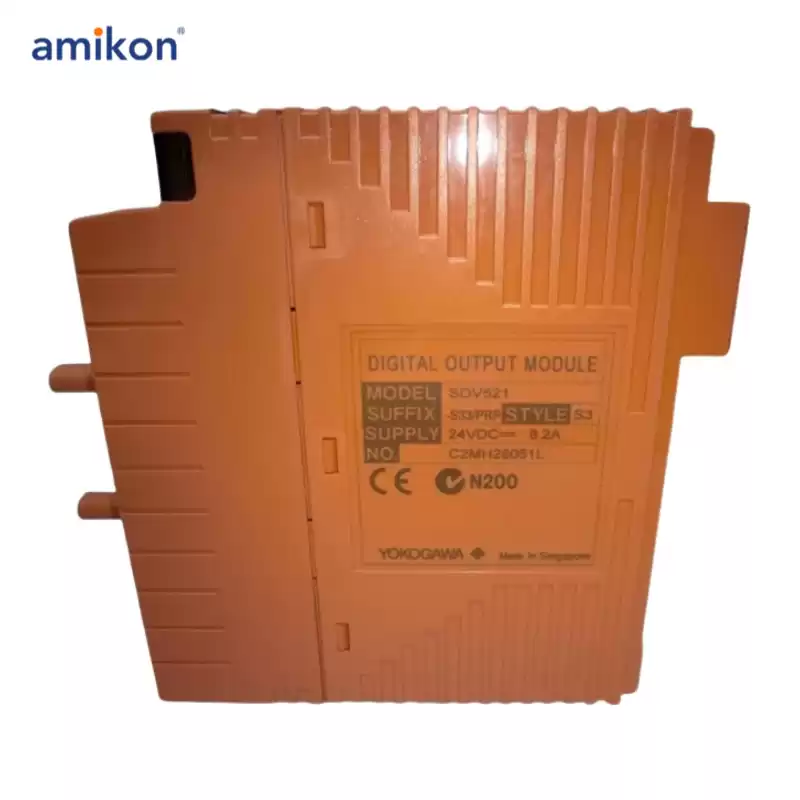

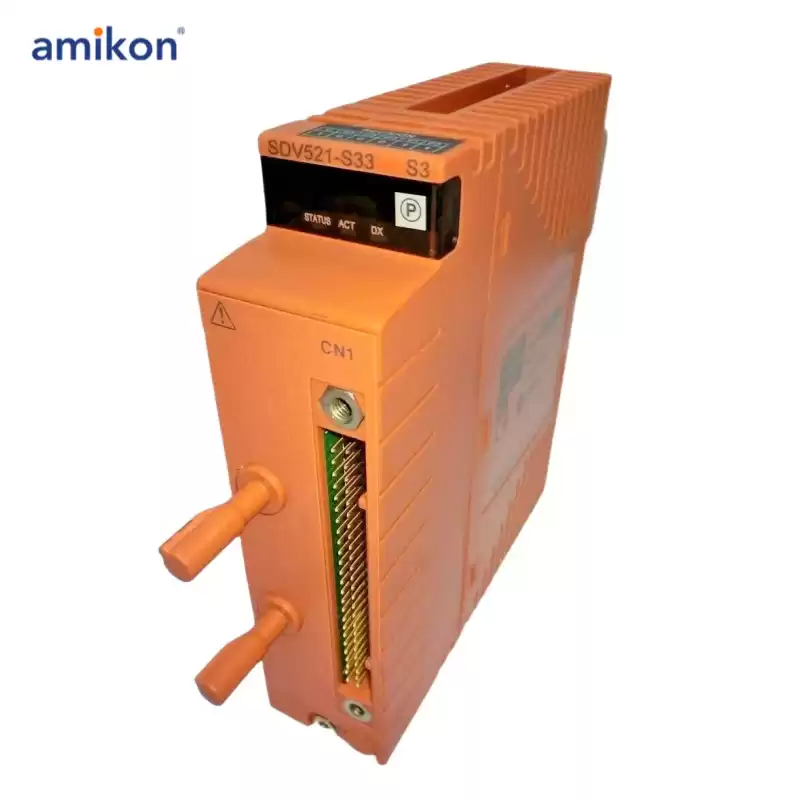

SDV521-S63 S3 Yokogawa Digital Output Module

Brand new and original sealed//Same Day Shipment


  • Warranty PeriodOne Year Warranty
  • Dimensions7.6 cm x 12.7 cm x 12.7 cm
  • Weight0.7kg
  • Country of OriginJapan
  • Brand/ManufaturerYokogawa
  • Payment Term100% Advance Payment T/T Bank Wire Transfer

Category

Specification

Model

SDV521-S63 S3

Number of Outputs

4-channel, module isolation (*4)

Output Voltage

24 V DC

Output Voltage Drop

1 V maximum

External Power Supply Rating

24 V DC, 10 A minimum

External Power Supply

24 V DC +20 %/–10 %

Current Capacity

8.2 A (*1)

Maximum Leak Current at Output Off Status

1.6 mA

Output Format

Current source

Maximum Load Current

2 A/output line (8 A in total output lines) (*2) (*4)

Minimum Load Current

100 mA

Load Resistance Range

12 to

Output Response Time

30 ms maximum

Withstand Voltage

2 kV AC (between output signal lines and system), 4-point input lines collectively connected (

Weight

0.36 kg

External Connection

Dedicated
