Parameter
|
Description
|
|
Model
|

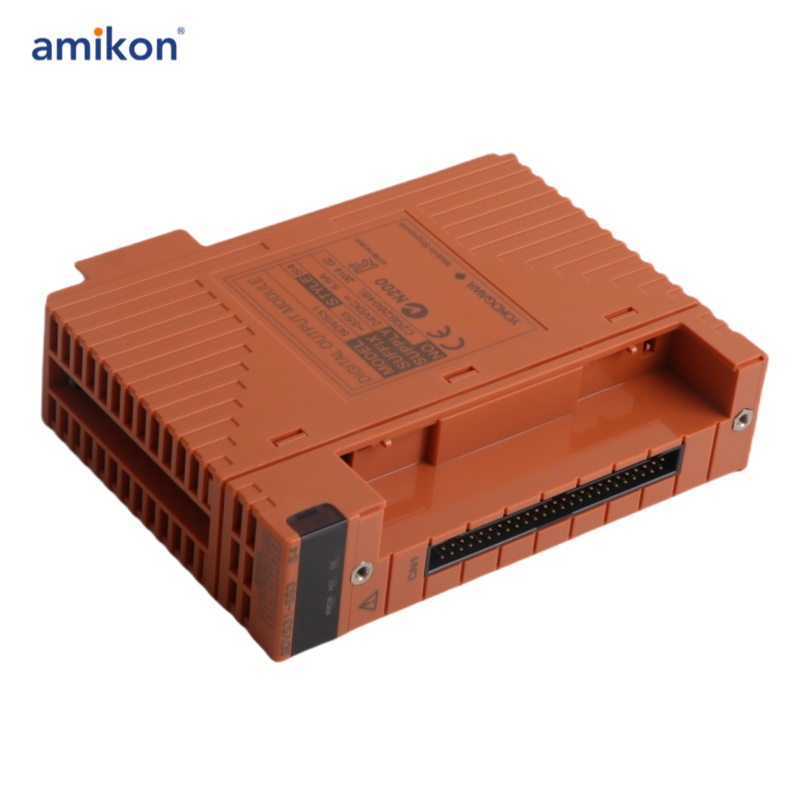

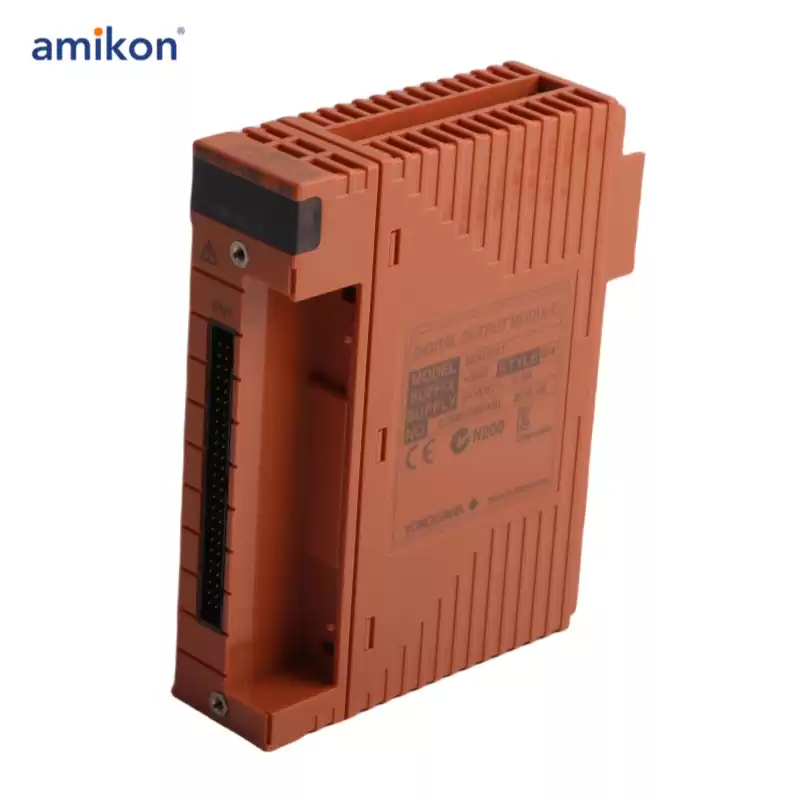

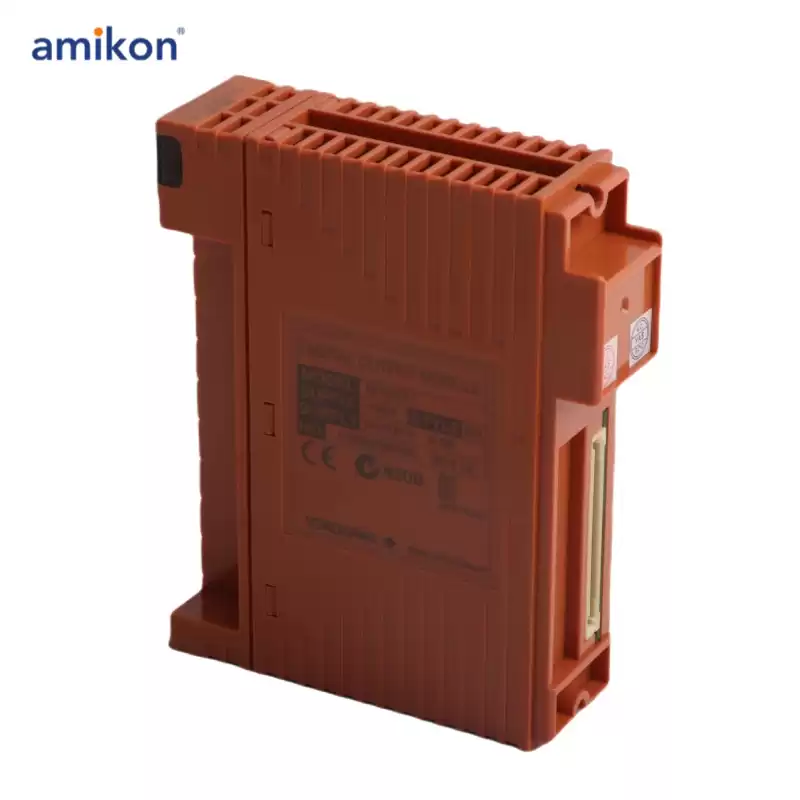

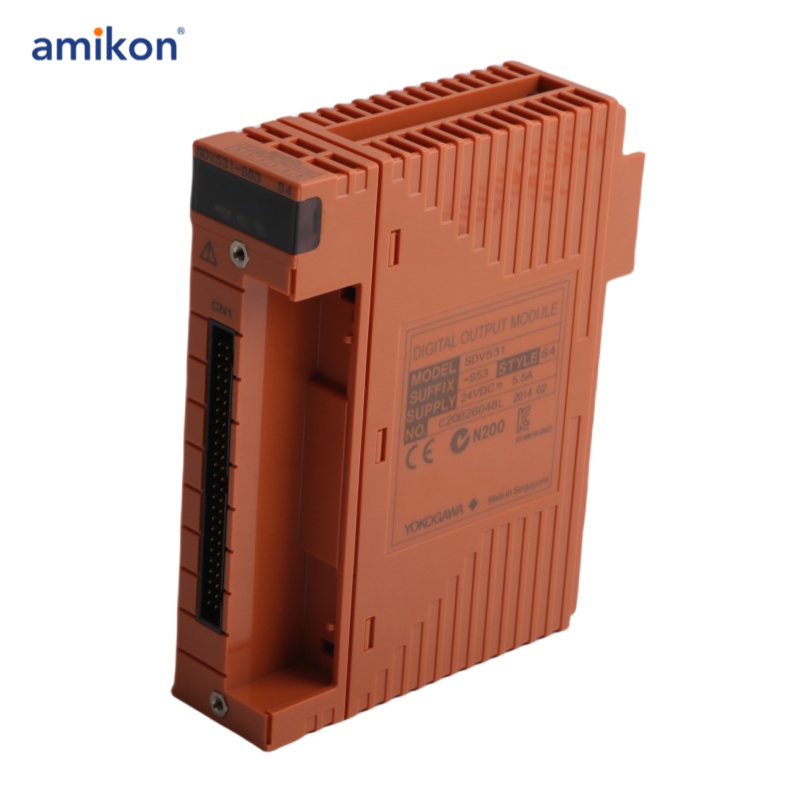

SDV531-L33 S4
|
|
Product Type
|
Digital Output Module
|
|
Number of Outputs
|
8-channel, module isolation (*6)
|
|
Output Voltage
|
24 V DC
|
|
Output Voltage Drop
|
1 V maximum
|
|
External Power Supply Rating
|
24 V DC, 5 A minimum
|
|
External Power Supply Range
|
24 V DC +20 %/–10 % (*1)
|
|
Suffix Code 1
|
S = Standard type
|
|
Suffix Code 2
|
6 = With signal cable interface adapter and no explosion protection
|
|
Suffix Code 3
|
3 = With ISA Standard G3 and temperature (-20 to 70 °C)
|
|
Weight
|
0.34 Kg
|
|
Current Capacity
|
5 A
|
|
Maximum Leak Current (Off)
|
1.6 mA
|
|
Output Format
|
Current source
|
|
Maximum Load Current
|
0.6 A/output line (4.8 A total output lines) (*2) (*6)
|
|
Minimum Load Current
|
35 mA
|
|
Load Resistance Range
|
40 to 685 Ω (*3)
|
|
Output Response Time
|
30 ms maximum
|
|
Withstand Voltage
|
2 kV AC (between output signal lines and system), 8-point input lines collectively connected (negative lines) (*4)
|
