Part Number: SDV531-L53

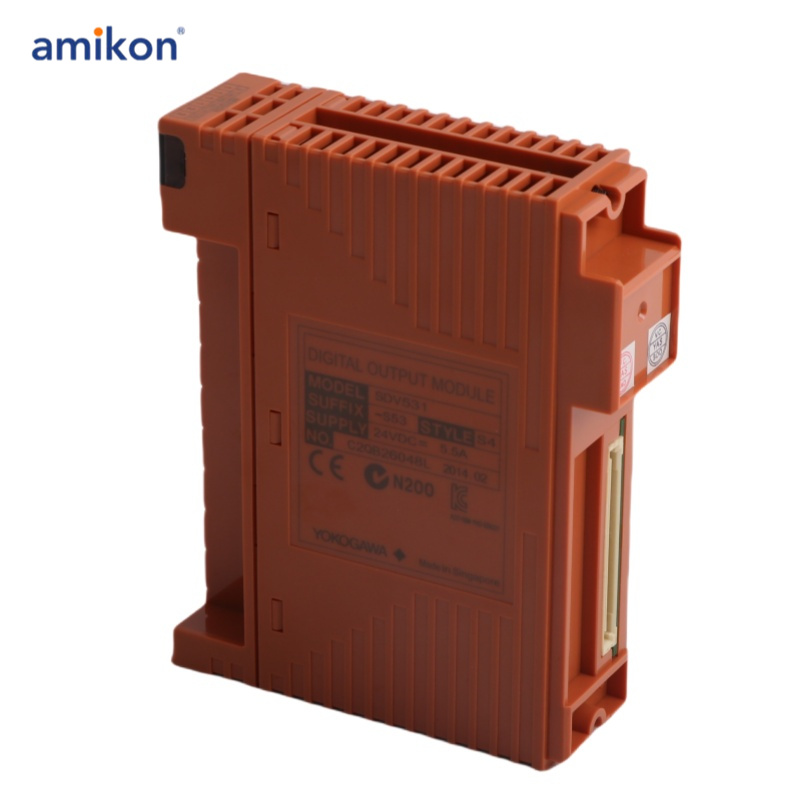

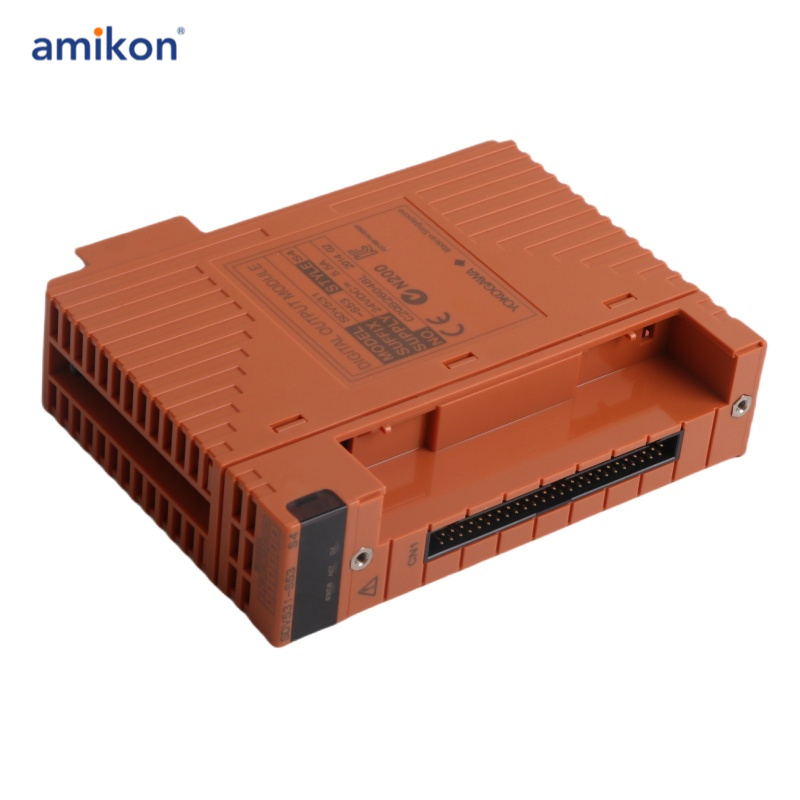

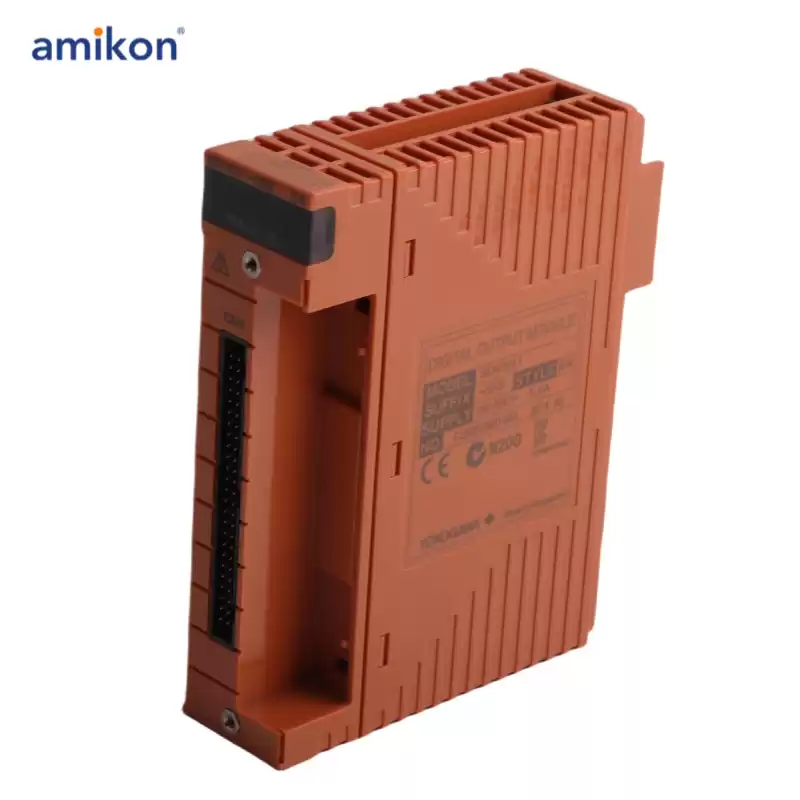

Model: SDV531 Digital Output Module
Brand: Yokogawa
Model and Suffix Codes
Model: SDV531 - Digital output module (8-channel, module isolation)
Suffix Codes:
-L - Long distance type
5 - For pressure clamp terminal block or MIL cable with no explosion protection
3 - With ISA Standard G3 and temperature (-20 to 70°C)
Option Codes: /B4S10 - With pressure clamp terminal block for digital output (with surge absorber) [Model: STB4S-10]
Output modules output on/off status signals to field equipment.
The output modules can be made dual-redundant respectively. They incorporate field wiring diagnostic functions, so they require no wiring diagnosis elements.
|
Item
|
Specifications
|
|
Model
|
SDV531-L53
|
|
Number of outputs
|
8-channel, module isolation (*6)
|
|
Output voltage
|
24 V DC
|
|
Output voltage drop
|
1 V maximum
|
|
External power supply rating
|
24 V DC, 5 A minimum
|
|
External power supply
|
24 V DC +20%/-10% (*1)<br>Current capacity: 5A
|
|
Maximum leak current at output off status
|
1.6 mA
|
|
Output format
|
Current source
|
|
Maximum load current
|
0.6 A/output line (4.8 A in total output lines) (*2) (*6)
|
|
Minimum load current
|
35 mA
|
|
Load resistance range
|
40 to 685 Ω (*3)
|
|
Output response time
|
30 ms maximum
|
|
Withstand voltage
|
2 kV AC (between output signal lines and system), 8-point input lines collectively connected (negative lines) (*4)
|
|
Current consumption
|
280 mA maximum (5 V DC)<br>140 mA maximum (24 V DC)
|
|
Weight
|
0.28 kg (For pressure clamp terminal block or MIL cable)<br>0.34 kg (With dedicated signal cable interface adapter)
|
|
External connection
|
Pressure clamp terminal<br>MIL cable<br>Dedicated signal cable (AKB331, AKB651 (*5))
|
